Alignment




Wheel Alignment Specifications

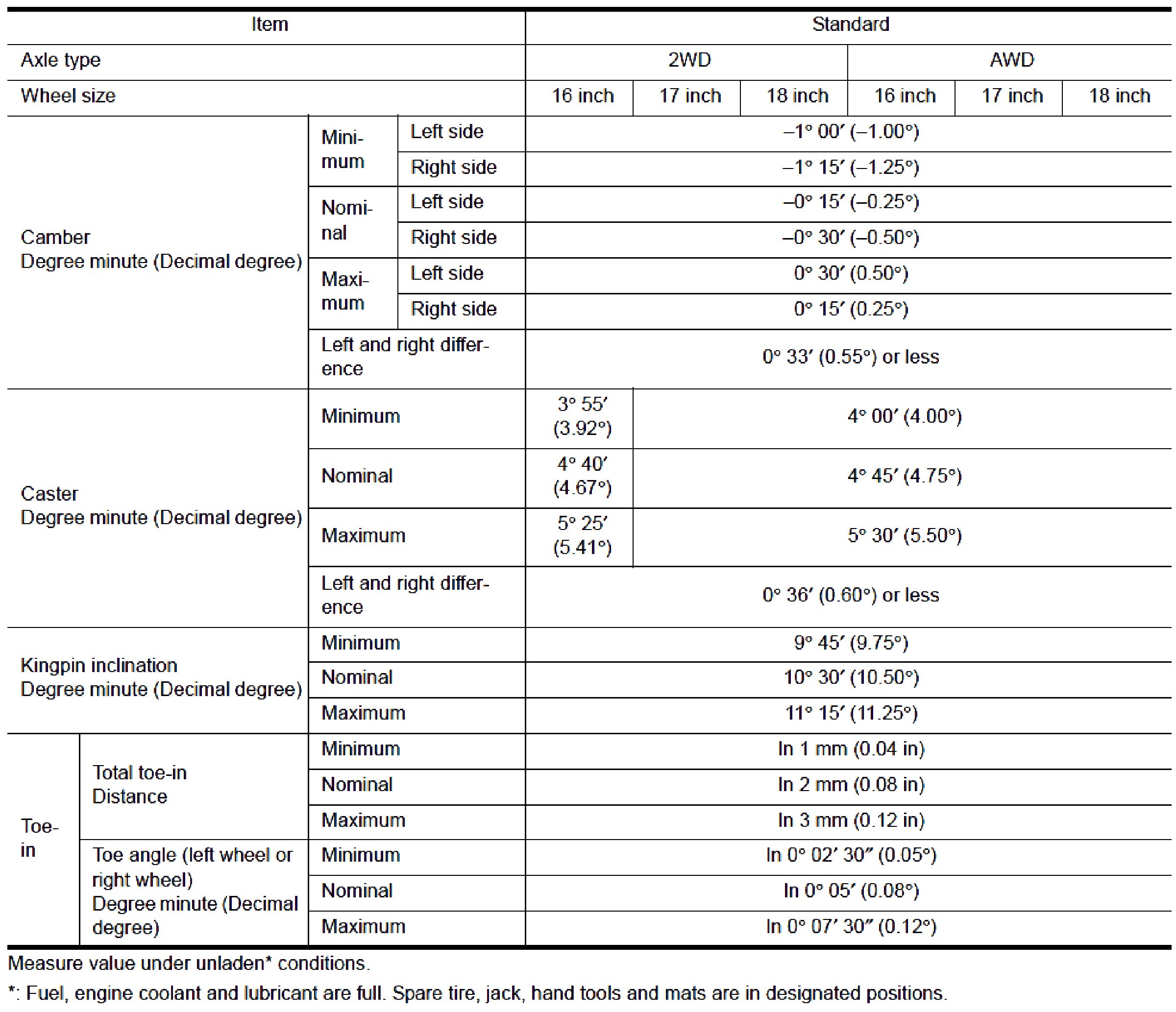

Front Wheel Alignment:

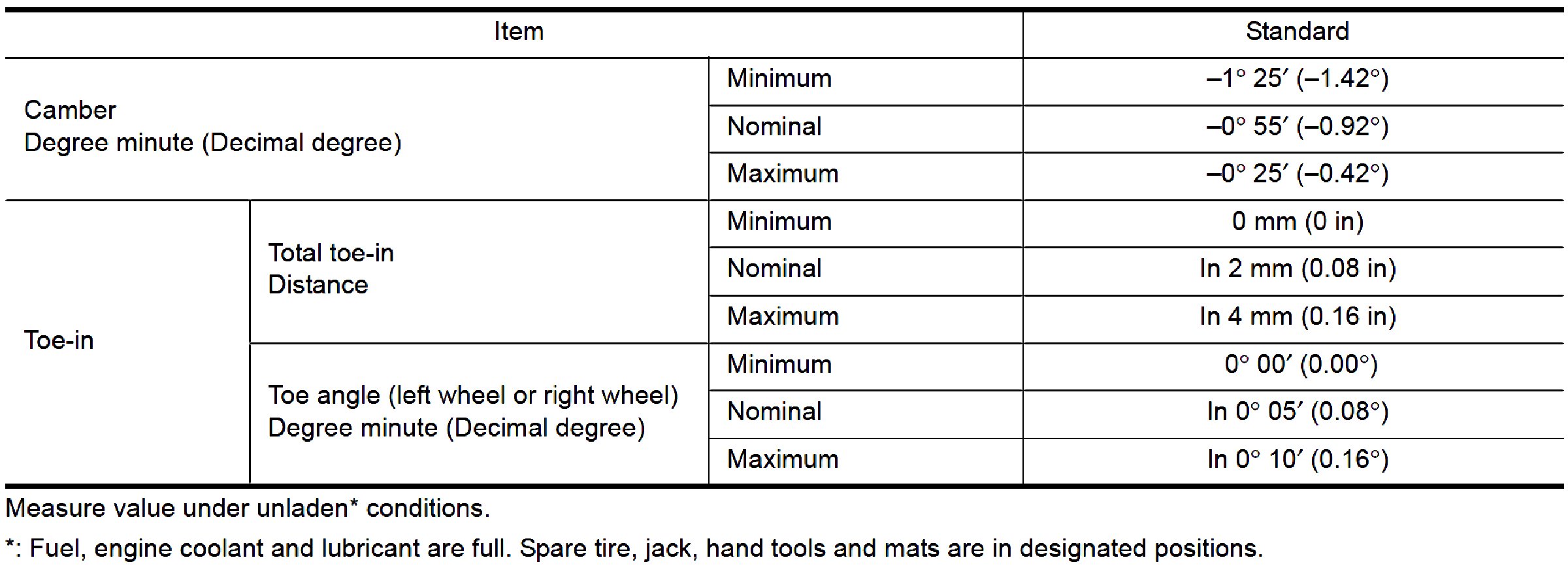

Rear Wheel Alignment:





Steering Angle:





Wheelarch Height:
