Starting and Charging
>>
Power and Ground Distribution
>>
Description and Operation
>>
Relay Control System
>>
System Diagram
System Diagram
RELAY CONTROL SYSTEM

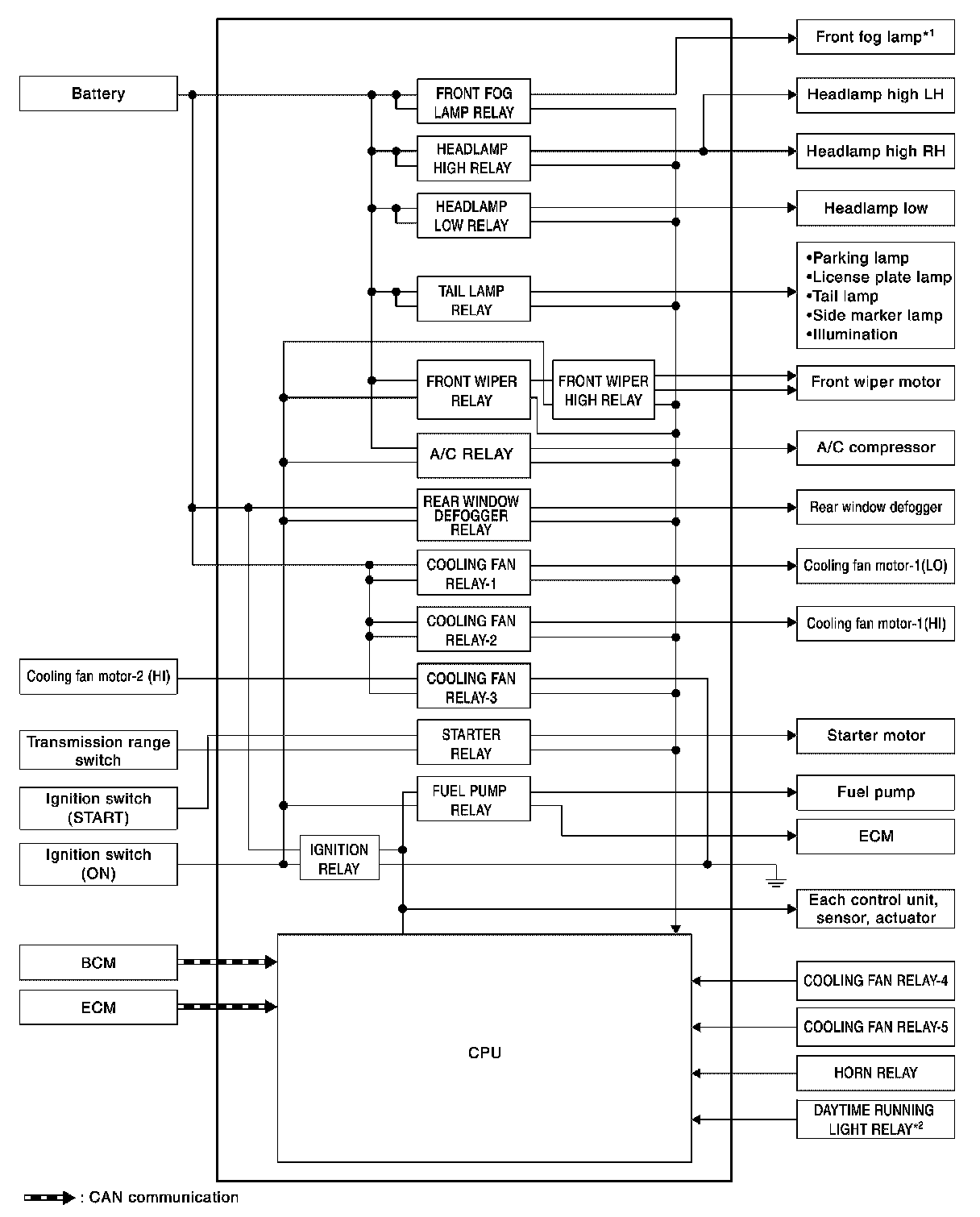

System Diagram
NOTE:
- *1: With front fog lamp system
- *2: With daytime running light system
