Removal And Installation

REAR WHEEL HUB

Removal and Installation


REMOVAL

Wheel Hub and Bearing Assembly
1.Remove tires with power tool.
2.Remove wheel sensor from hub and bearing assembly. ABS (without VDC), VDC/TCS/ABS (with VDC).

CAUTION:
Never pull on wheel sensor harness.
3.Remove torque member mounting bolts with power tool. Hang torque member not to interfere with work.
Exploded View.

CAUTION:
Never depress brake pedal while brake caliper is removed.
4.Remove disc rotor. Removal And Installation.

CAUTION:

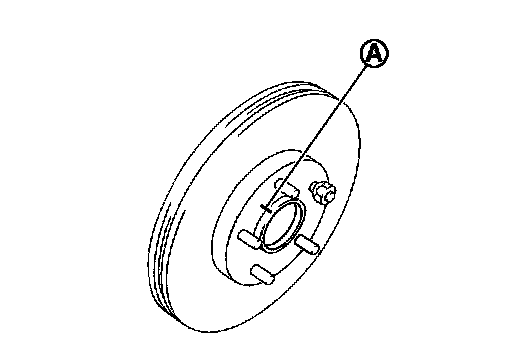

- Put matching marks on the wheel hub and bearing assembly and the disc rotor before removing the disc rotor.
- Never drop disc rotor.
5.Remove wheel hub and bearing assembly.

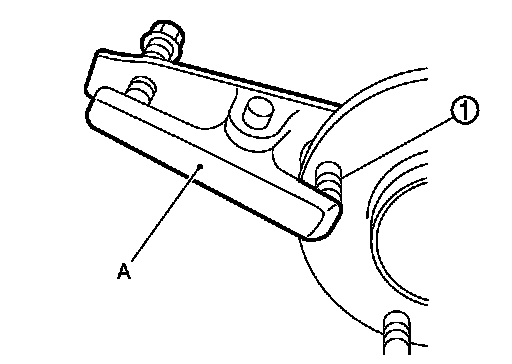

6.Remove hub bolts (1) from wheel hub and bearing assembly, using the ball joint remover (A) (commercial service tool).

CAUTION:
- Remove hub bolt only when necessary.
- Never hammer the hub bolt to avoid impact to the wheel bearing.
- Pull out the hub bolt in a direction perpendicular to the wheel hub and bearing assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

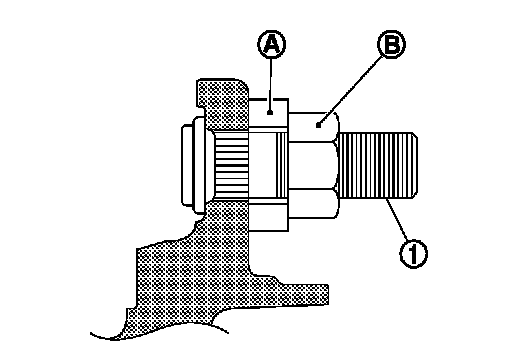

- Place a washer (A) as shown in the figure to install the hub bolts (1) by using the tightening force of the nut (B).

CAUTION:
- Check that there is no clearance between wheel hub and bearing assembly and hub bolt.
- Never reuse hub bolt.





- Align the matching marks (A) made during removal when reusing the disc rotor.
