Removal And Installation

AIR BREATHER HOSE

Removal and Installation


REMOVAL

1.Remove clip from air cleaner assembly.
2.Remove air breather hose from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:
Check that air breather hose is not collapsed or blocked due to folding or bending when installed.

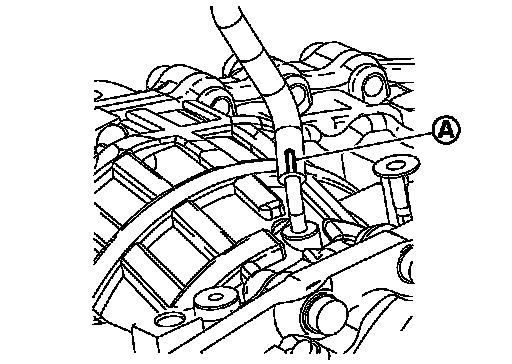

- Install air breather hose to air breather tube so that the paint mark (A) faces upward. Also insert hose to the bend of air breather tube.
