Disassembly

ELECTRIC CONTROLLED COUPLING

Disassembly

1.Remove connector bracket.

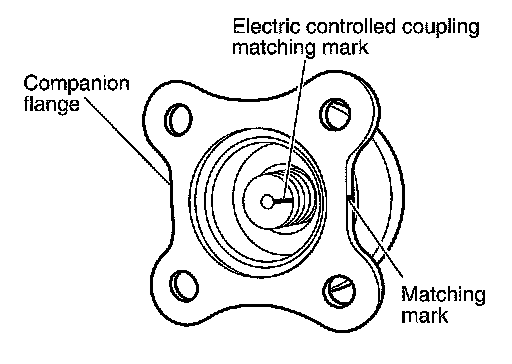

2.Put matching mark on the thread edge of electric controlled coupling. The matching mark should be in line with the matching mark on companion flange.

CAUTION:
For matching mark, use paint. Never damage electric controlled coupling.
NOTE:
When replacing electric controlled coupling, matching mark is not necessary.

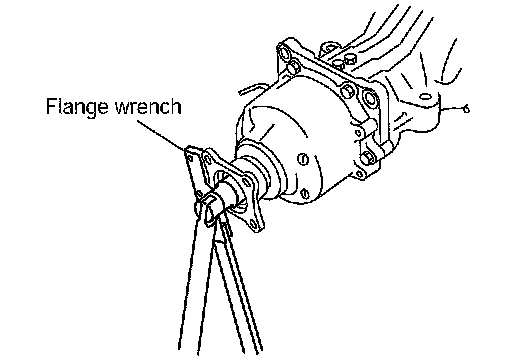

3.Remove companion flange lock nut, using a flange wrench (commercial service tool).
4.Remove companion flange.
5.Remove coupling cover.

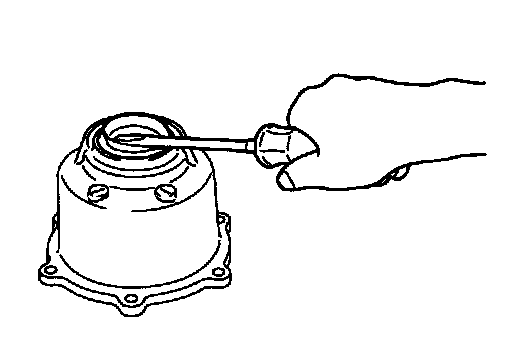

6.Remove front oil seal from coupling cover, using a suitable tool.

CAUTION:
Never damage coupling cover.
7.Remove electric controlled coupling.
8.Remove center oil seal from gear carrier.

CAUTION:
When removing electric controlled coupling, replace center oil seal.
9.Remove AWD solenoid harness.
