CONSULT Function (Transmission)

DIAGNOSIS SYSTEM (TCM)

CONSULT Function (TRANSMISSION)


FUNCTION

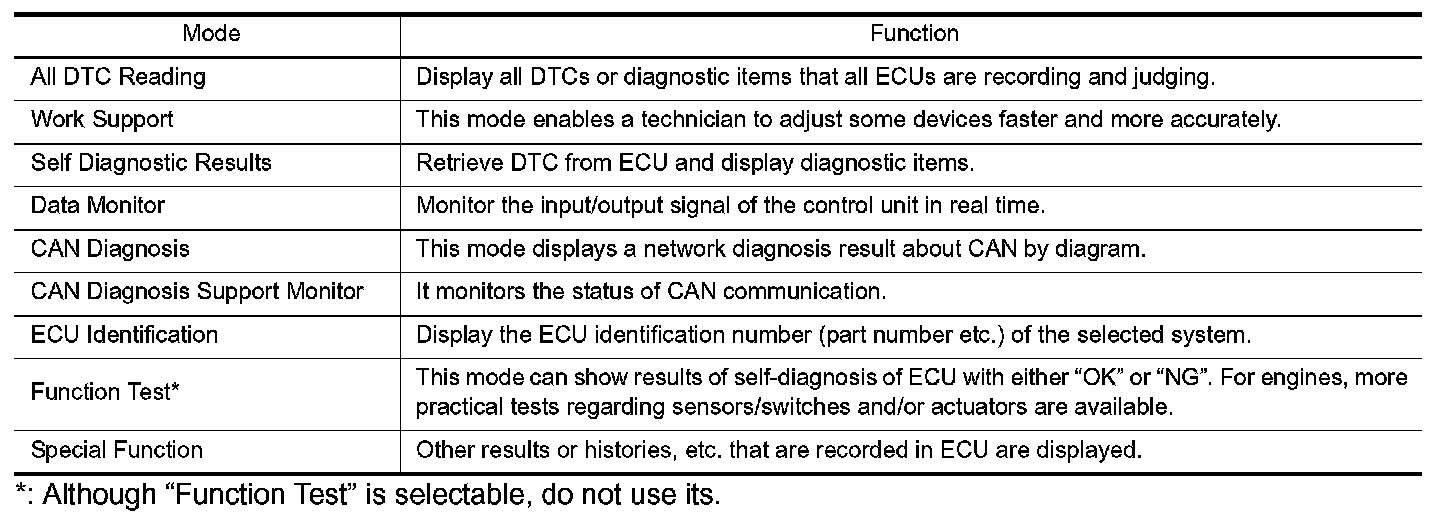

CONSULT can display each diagnostic item using the diagnostic test modes shown following.





*: Although "Function Test" is selectable, do not use its.

WORK SUPPORT MODE

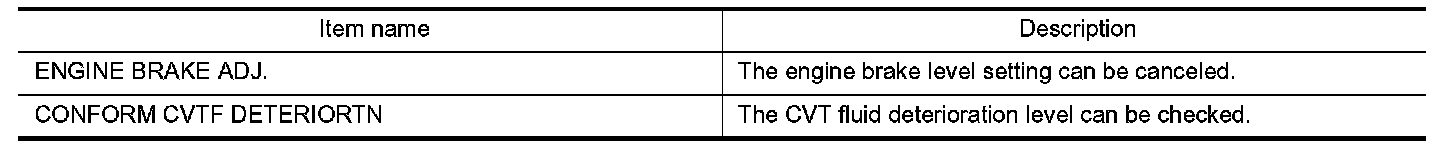

Display Item List





Engine Brake Adjustment

"ENGINE BRAKE LEVEL"
0: Initial set value (Engine brake level control is activated)
OFF: Engine brake level control is deactivated.

CAUTION:
Mode of "+1", "-0", "-1", "-2", "OFF" can be selected by touching "UP"or "DOWN" on CONSULT
screen. However, do not select mode other than "0" and "OFF". Selecting "+1" or "1" or "2" is selected, that may cause irregular driveability.

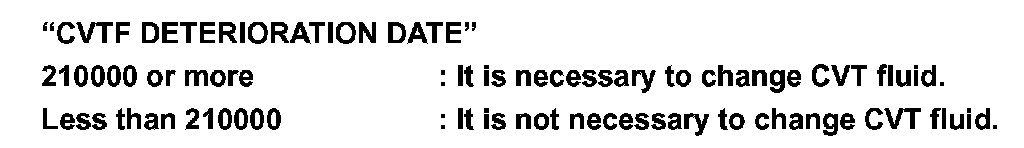

Check CVT Fluid Deterioration Date





CAUTION:
Touch "CLEAR" after changing CVT fluid, and then erase "CVTF DETERIORATION DATE".

SELF-DIAGNOSTIC RESULT MODE

Display Items List
Testing and Inspection.

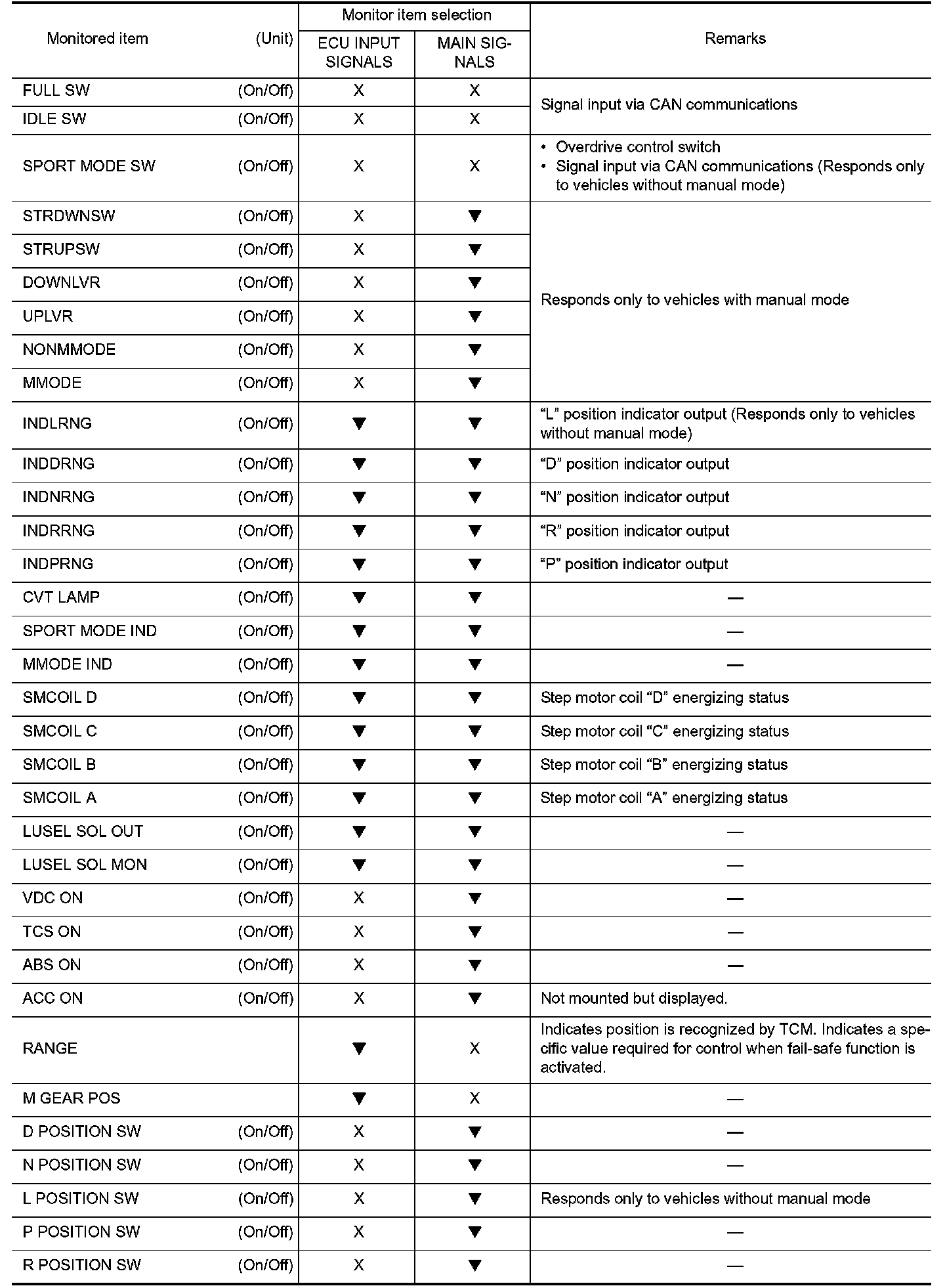

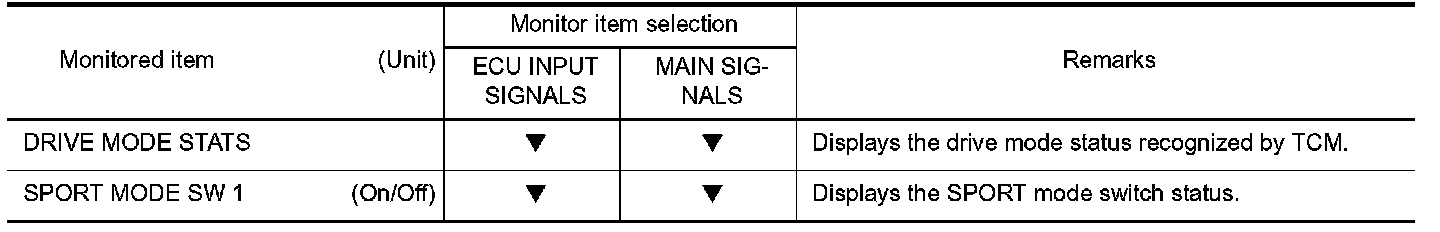

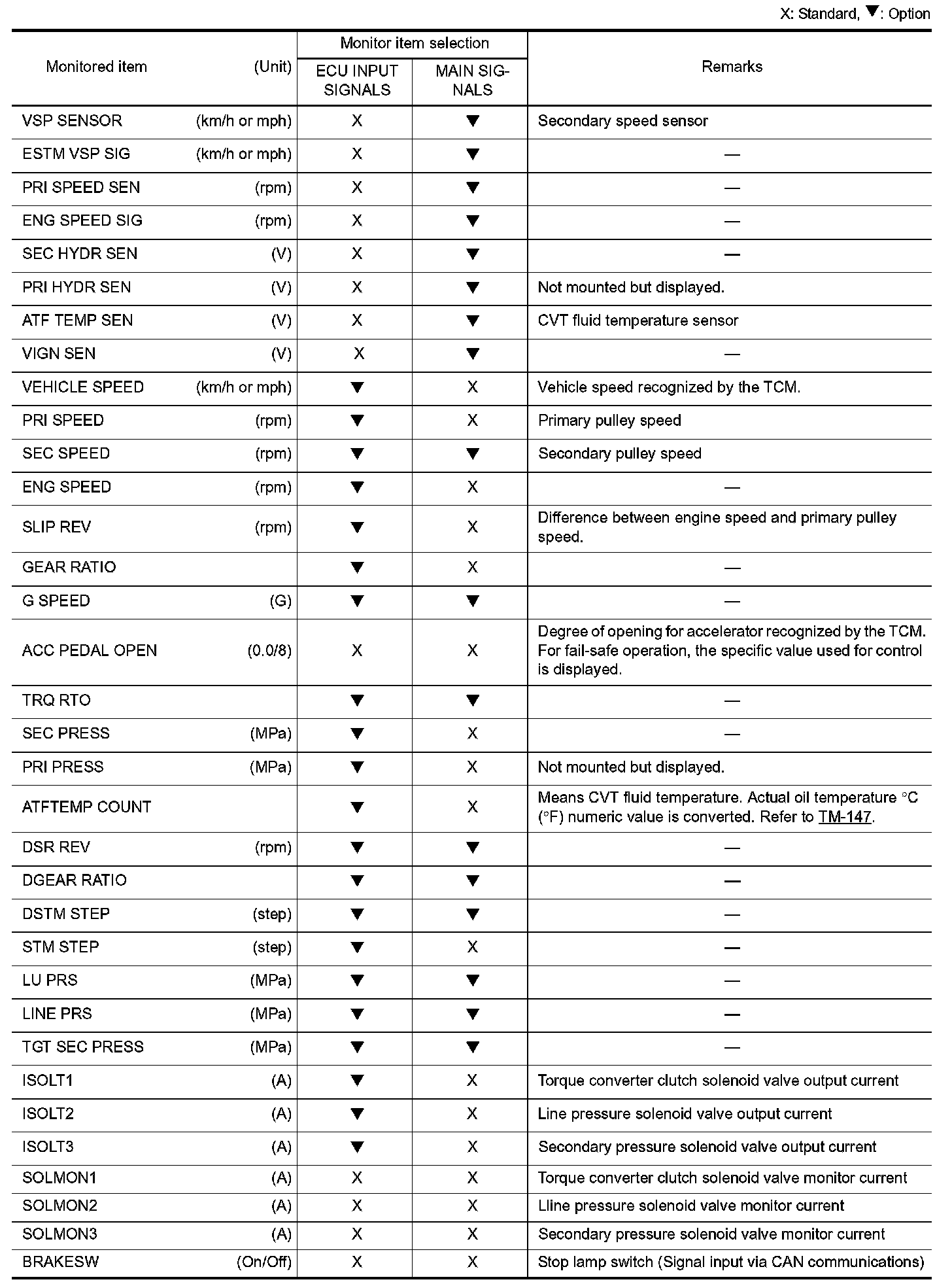

DATA MONITOR MODE

Display Items List
X: Standard, : Option
