Rear Power Window Switch

REAR POWER WINDOW SWITCH

Description

Rear power window motor will be operated if rear power window switch is operated.


Component Function Check


1. CHECK REAR POWER WINDOW SWITCH FUNCTION

Check rear power window motor operation with rear power window switch.
Is the inspection result normal?
YES- Rear power window switch is OK.
NO- .


Diagnosis Procedure


1. CHECK REAR POWER WINDOW SWITCH INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect rear power window switch connector.
3.Turn ignition switch ON.

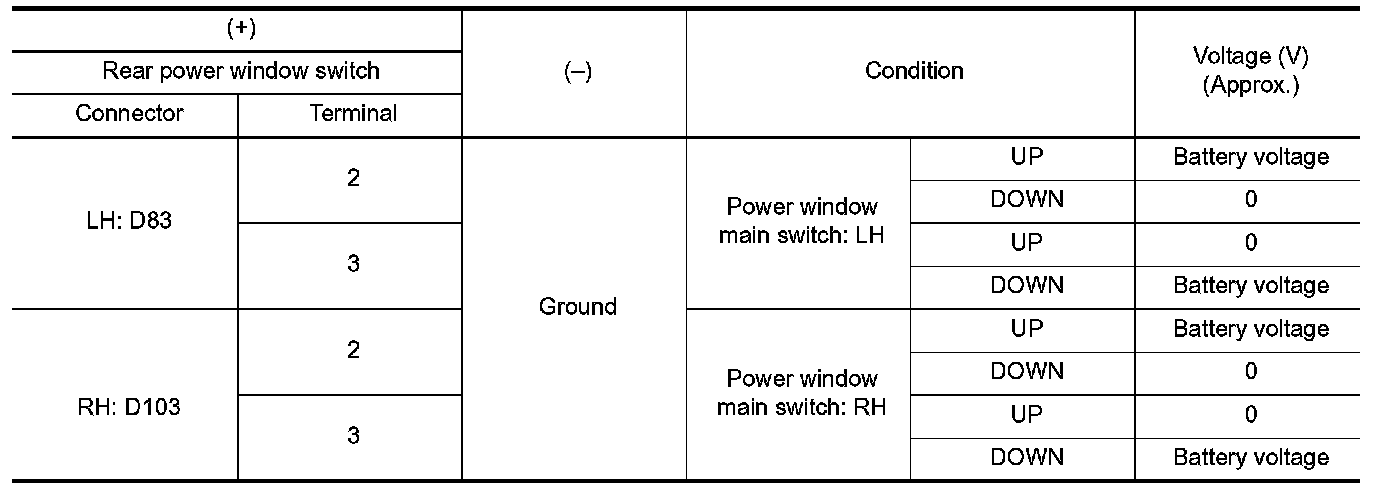

4.Check voltage between rear power window switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- GO TO 3.

2. CHECK REAR POWER WINDOW SWITCH

Check rear power window switch.
.
Is the inspection result normal?
YES- GO TO 4.
NO- Replace rear power window switch. Removal And Installation.

3. CHECK REAR POWER WINDOW SWITCH CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect power window main switch connector.

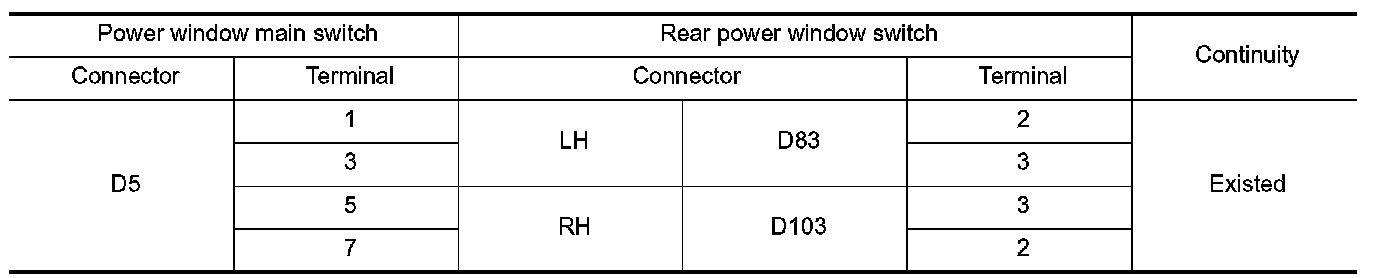

3.Check continuity between power window main switch harness connector and rear power window switch harness connector.

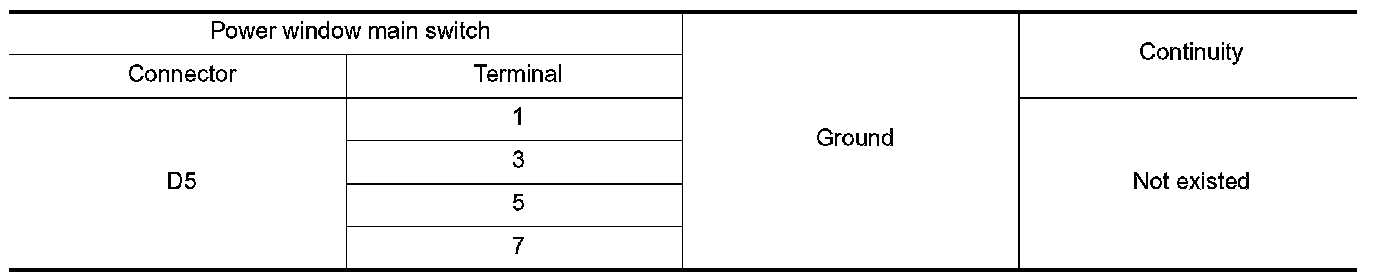

4.Check continuity between power window main switch harness connector and ground.





Is the inspection result normal?
YES- Replace power window main switch.Removal And Installation .
NO- Repair or replace harness.

4. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END


Component Inspection


1. CHECK REAR POWER WINDOW SWITCH

1.Turn ignition switch OFF.
2.Disconnect rear power window switch connector.

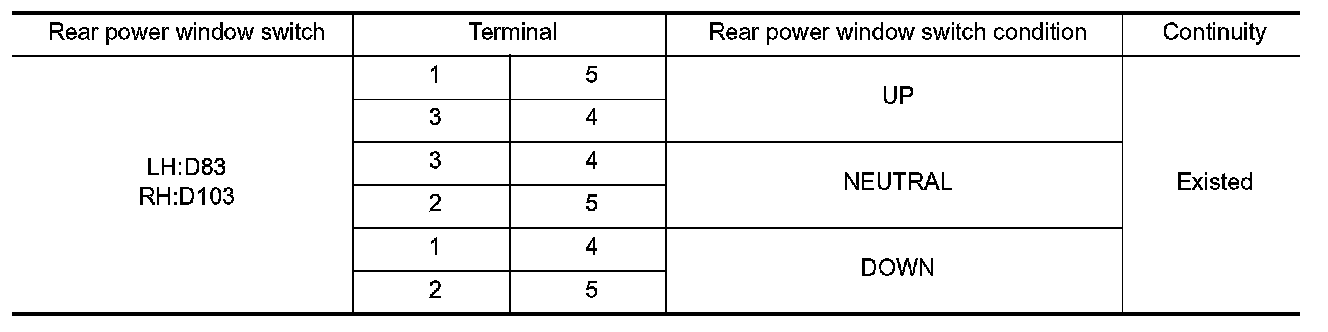

3.Check rear power window switch.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace rear power window switch. Removal And Installation.
