Component Inspection

WASHER SWITCH

Component Inspection


1. CHECK WIPER SWITCH

1.Turn ignition switch OFF.
2.Disconnect combination switch connector.

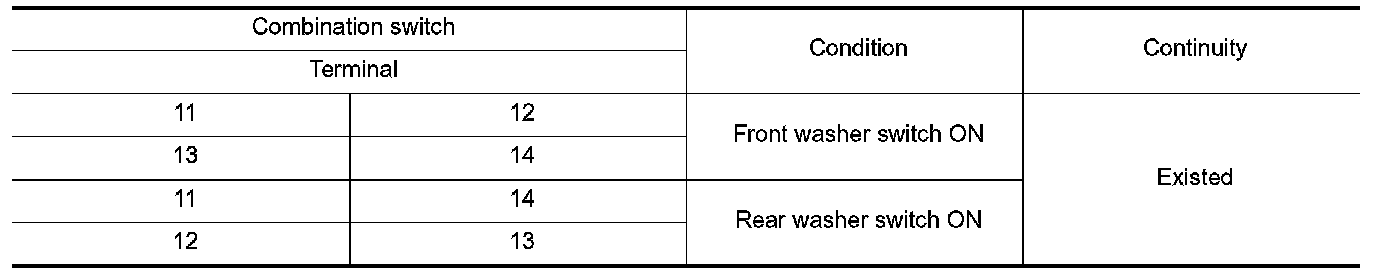

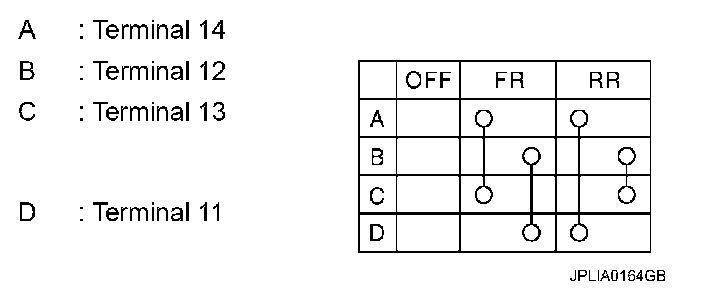

3.Check continuity between the combination switch terminals.










Is the inspection result normal?
YES- INSPECTION END
NO- Replace combination switch.
