Nissan-Datsun
>>
2012
>>
Rogue 2WD L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Washer Switch
>>
Description
Description
WASHER SWITCH
Description

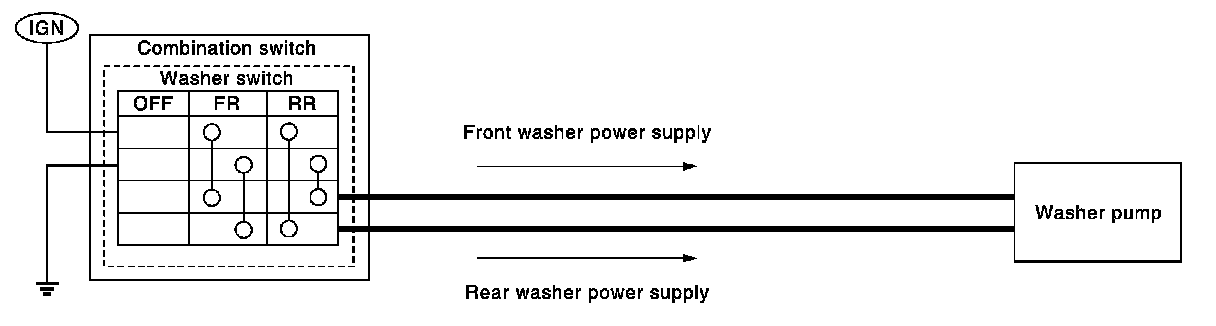

- Washer switch is integrated with combination switch.
- Combination switch operates front washer or rear washer by changing voltage polarity to be supplied to washer pump.
