Connecting Rod, Engine




Tighten connecting rod bolts in two steps using Tool.
Step 1: 19.6 Nm (2.0 kg-m, 14 ft-lb)
Step 2: 60� clockwise

Tool number: KV-10112100 (BT-8653-A)

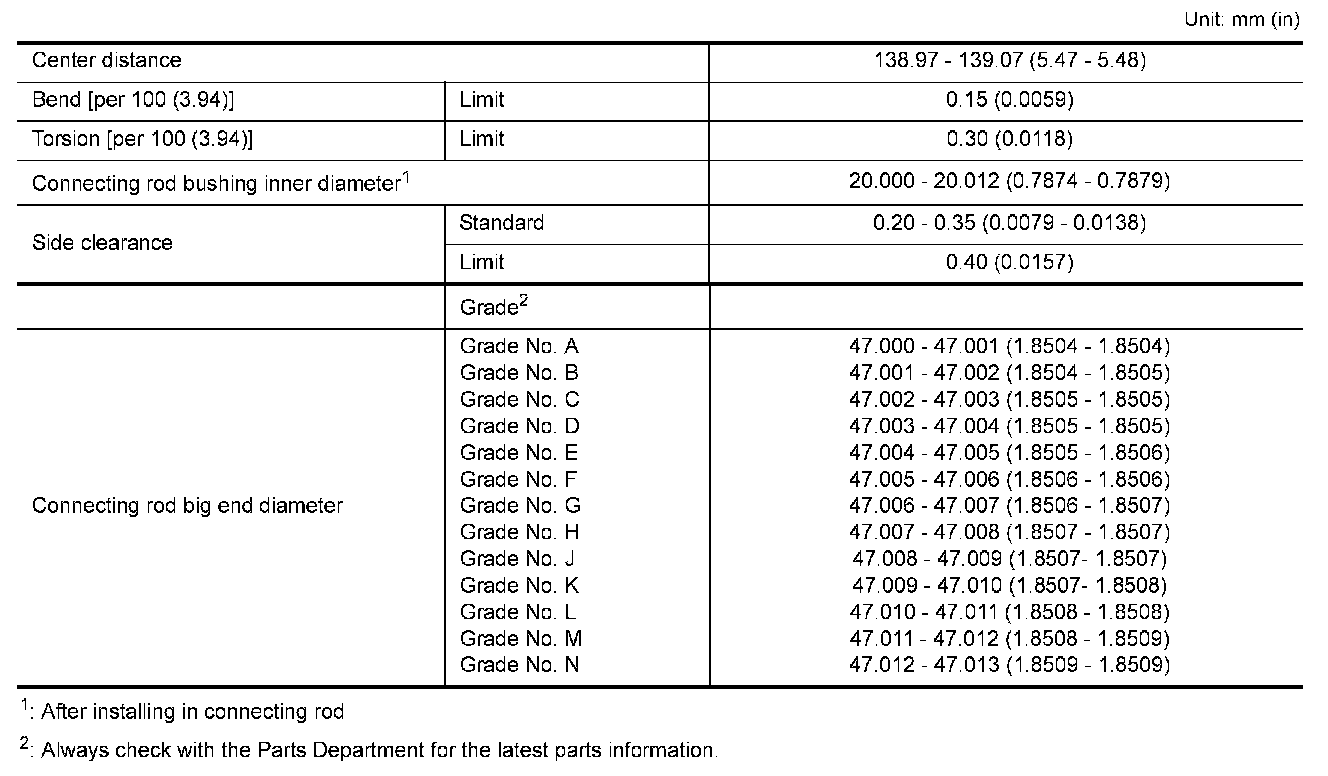

CONNECTING ROD
