Intake Manifold

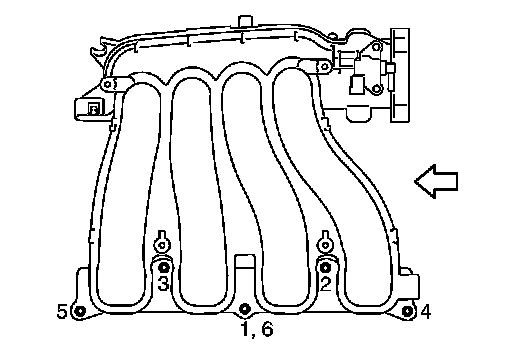

INTAKE MANIFOLDTighten bolts in numerical order as shown.
White arrow indicates: Engine front

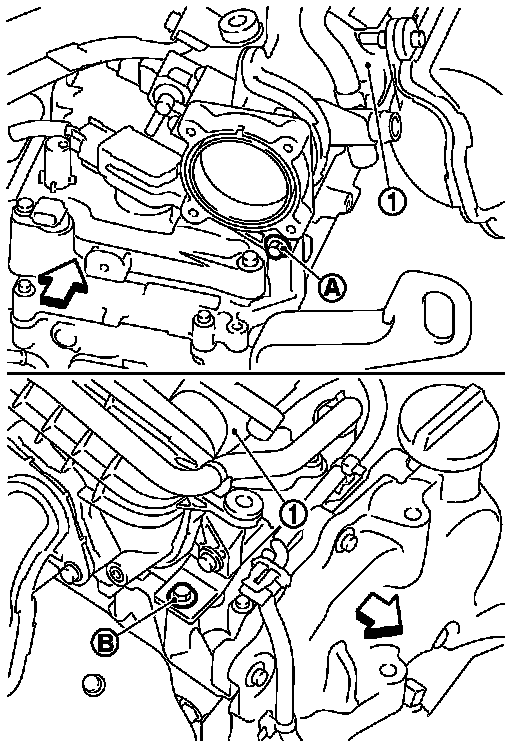

Tighten
intake manifold bolt (A). Then tighten intake manifold bolt (B).
1 :
Intake manifoldWhite arrow indicates: Engine front
Intake manifold bolt (A):
19.6 Nm (2.0 kg-m, 14 ft-lb)
Intake manifold bolt (B):
19.6 Nm (2.0 kg-m, 14 ft-lb)
