System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

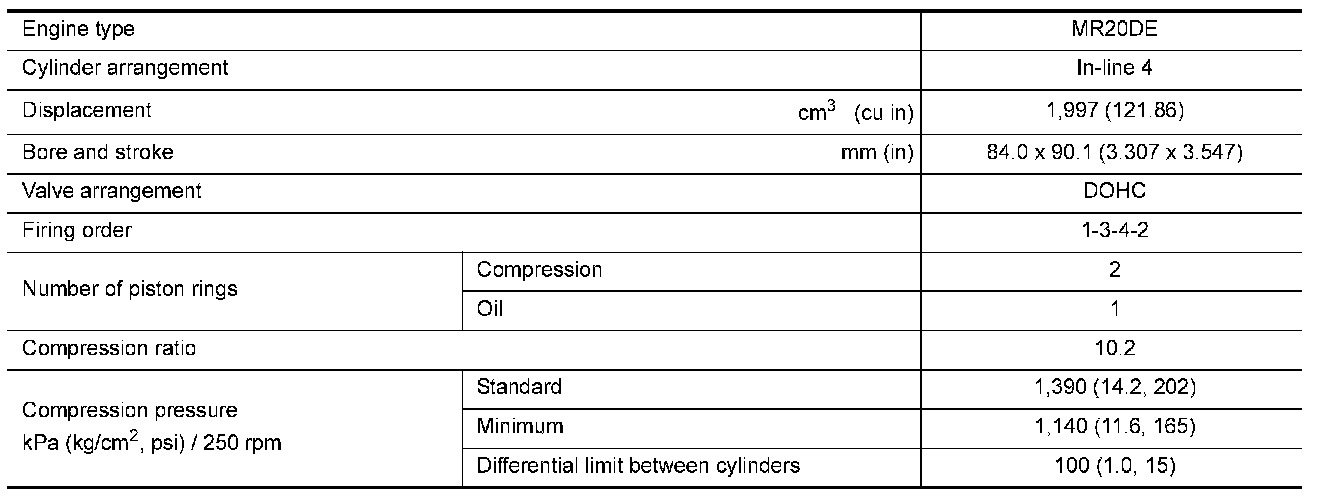

GENERAL SPECIFICATIONS






DRIVE BELT







WATER CONTROL VALVE







EXHAUST MANIFOLD

Unit: mm (in)

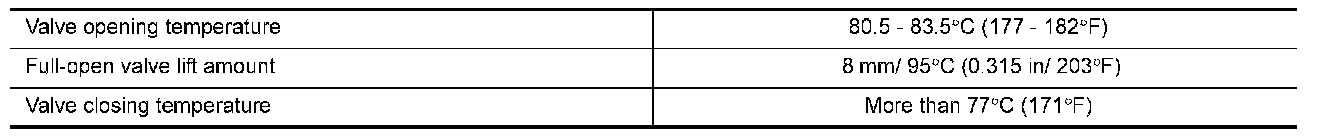

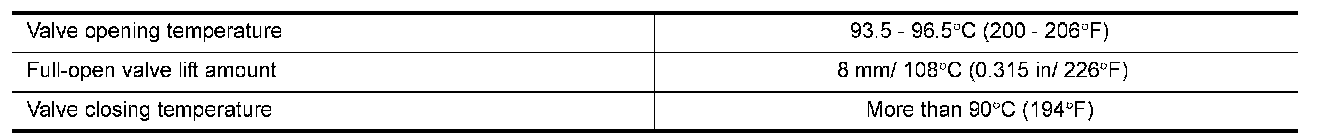

THERMOSTAT

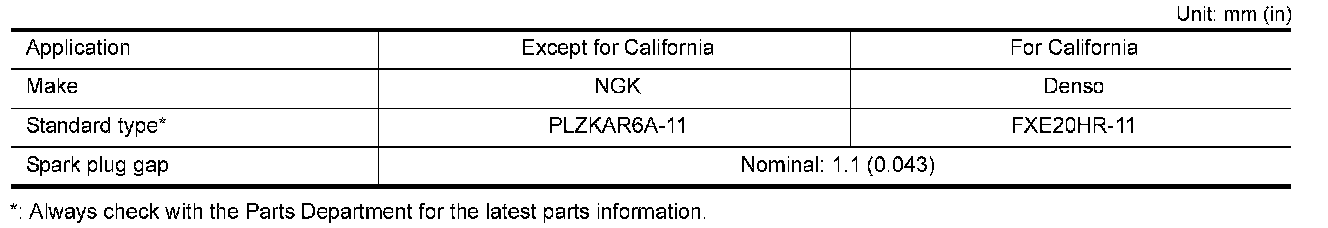

SPARK PLUG

Unit: mm (in)






CYLINDER HEAD

Unit: mm (in)






VALVE

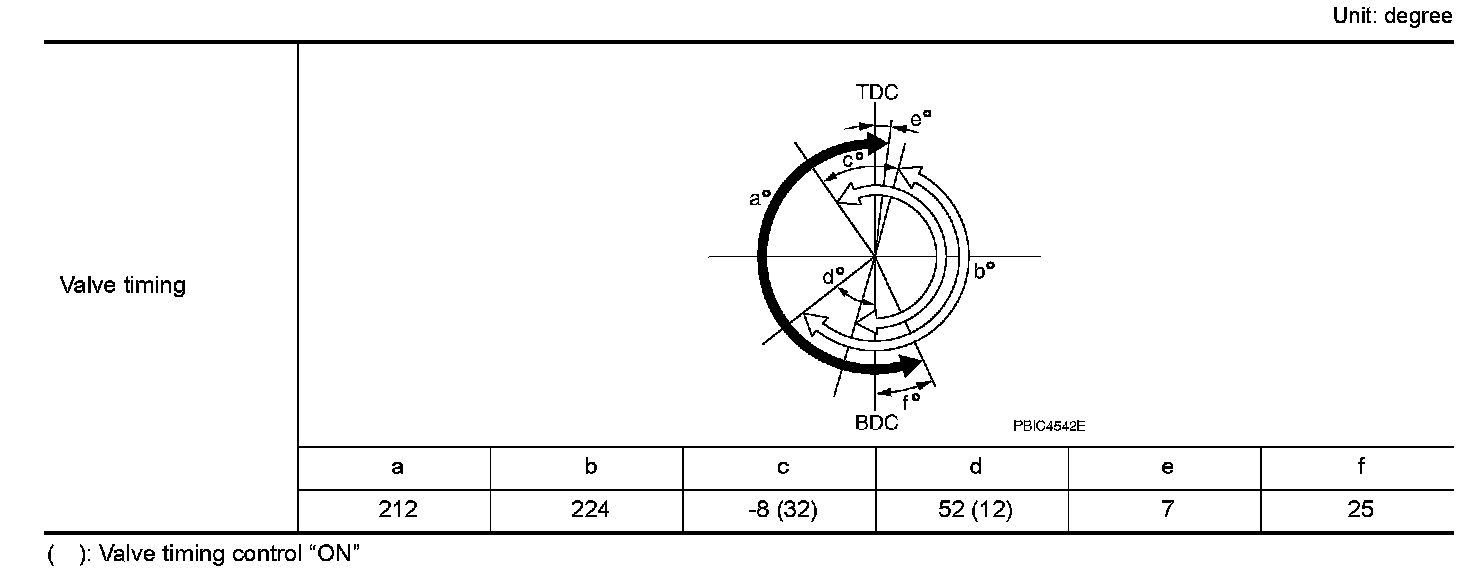

Valve Timing
Unit: degree

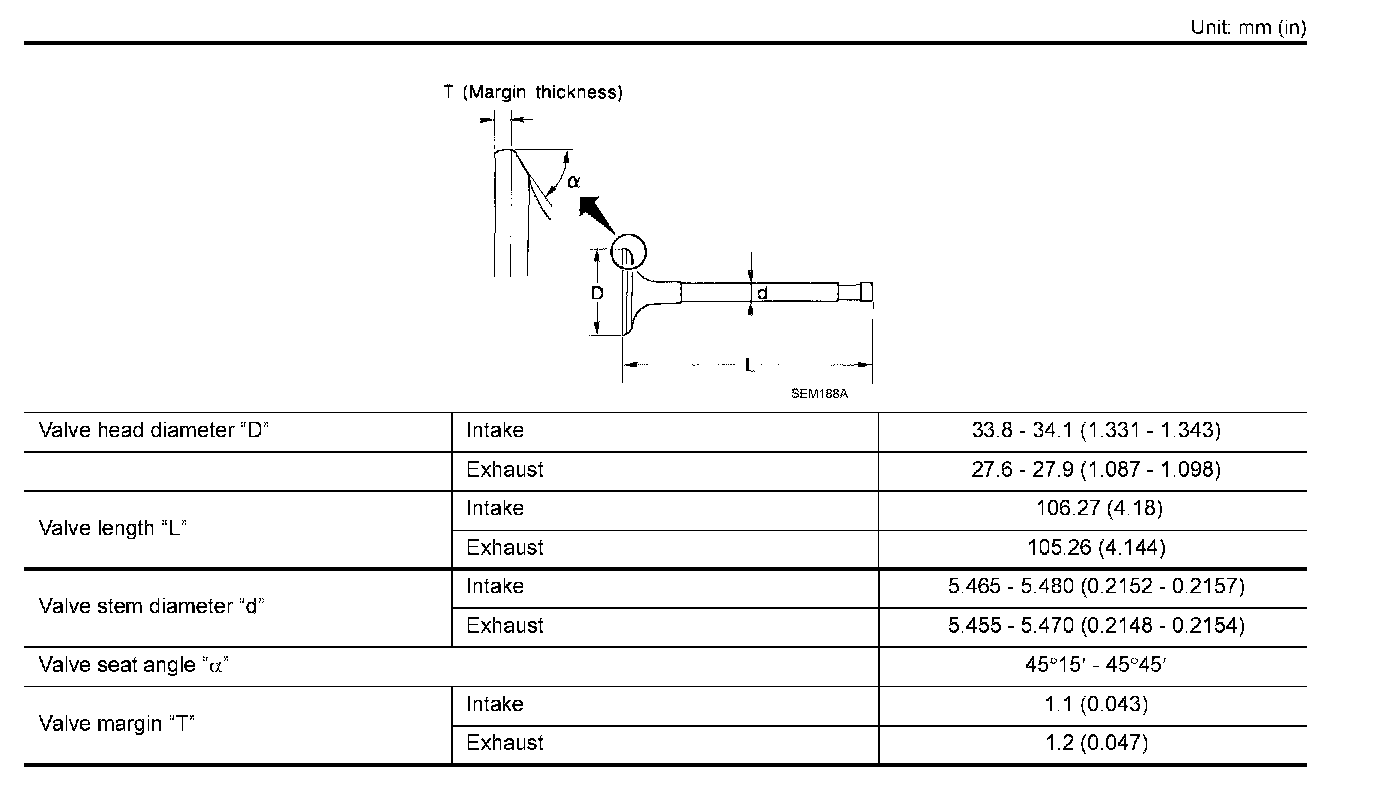

Valve Dimensions
Unit: mm (in)

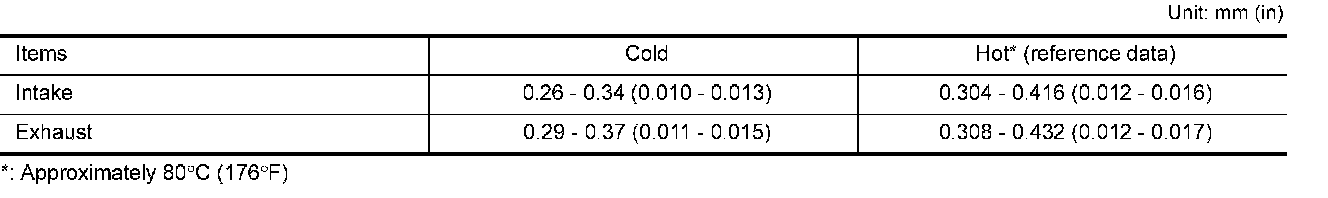

Valve Clearance
Unit: mm (in)

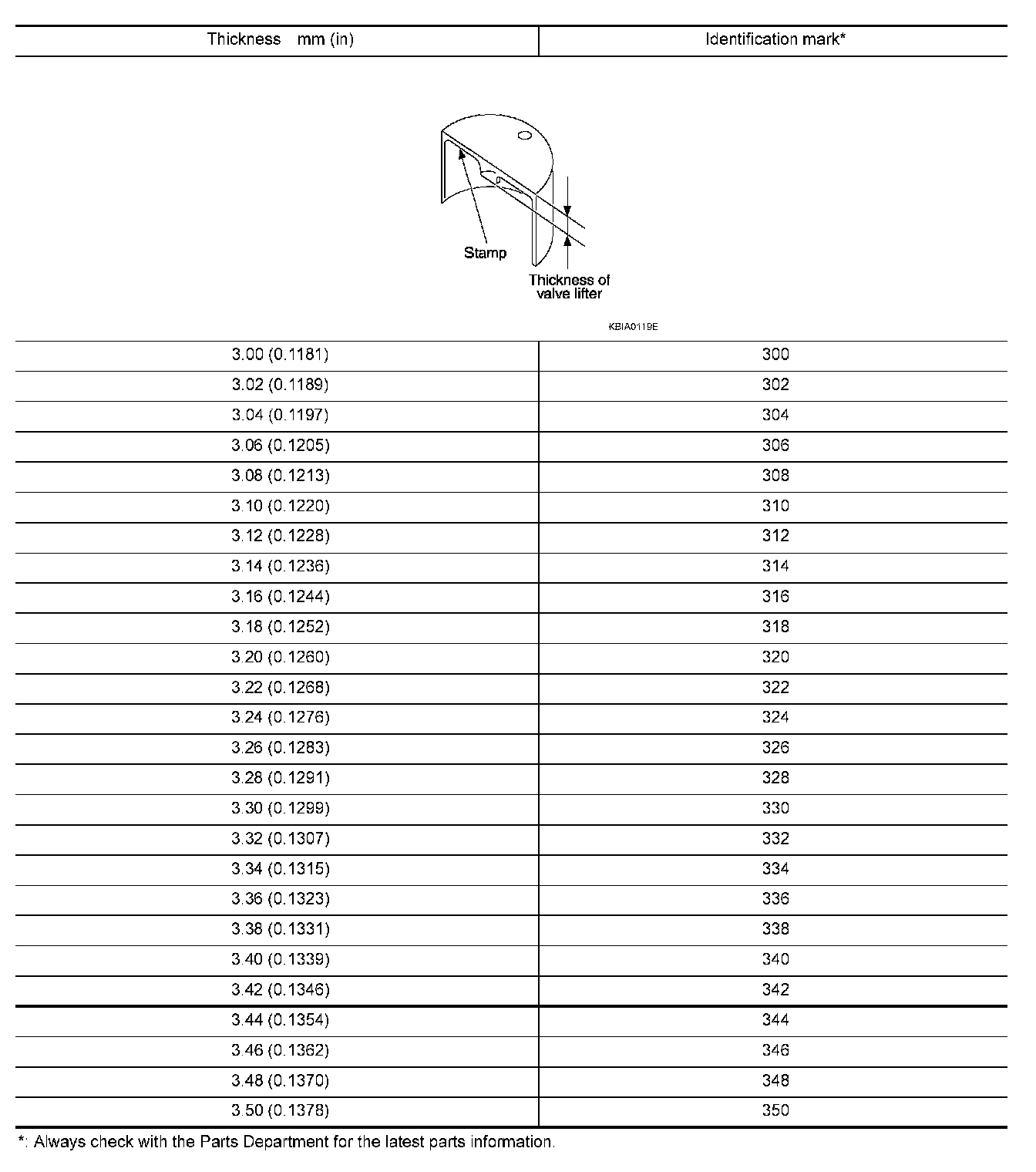

Available Valve Lifter

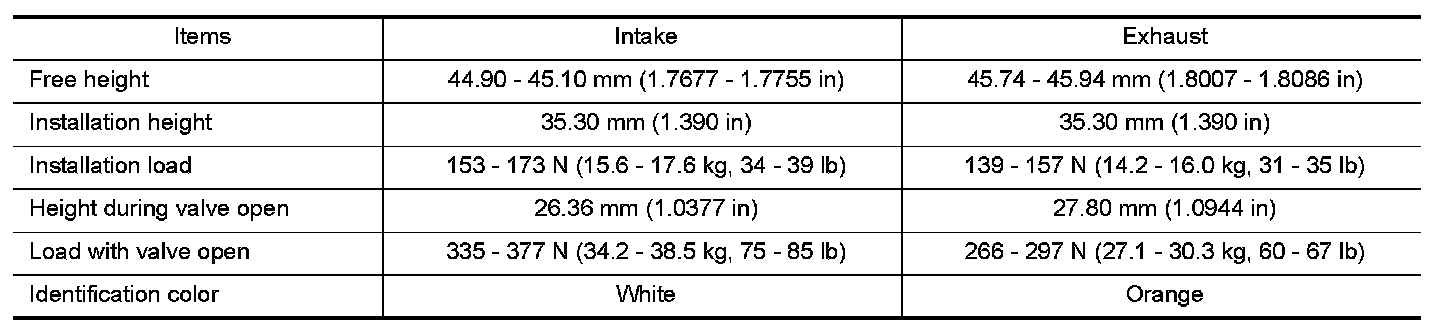

Valve Spring

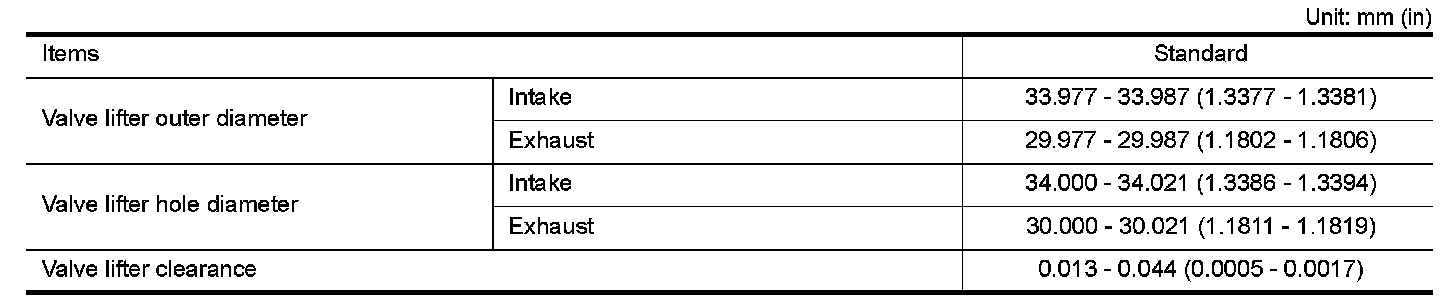

Valve Lifter
Unit: mm (in)

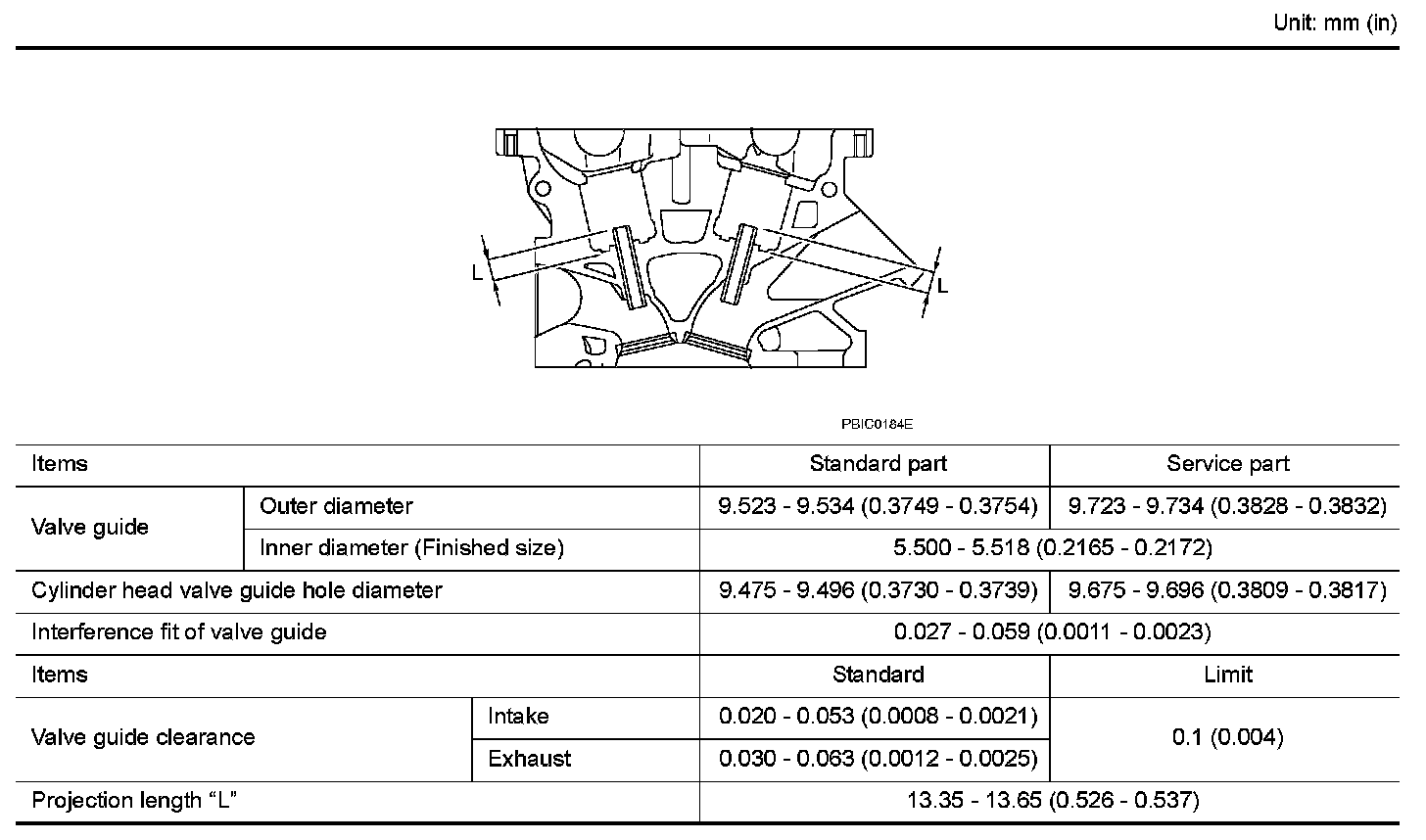

Valve Guide
Unit: mm (in)

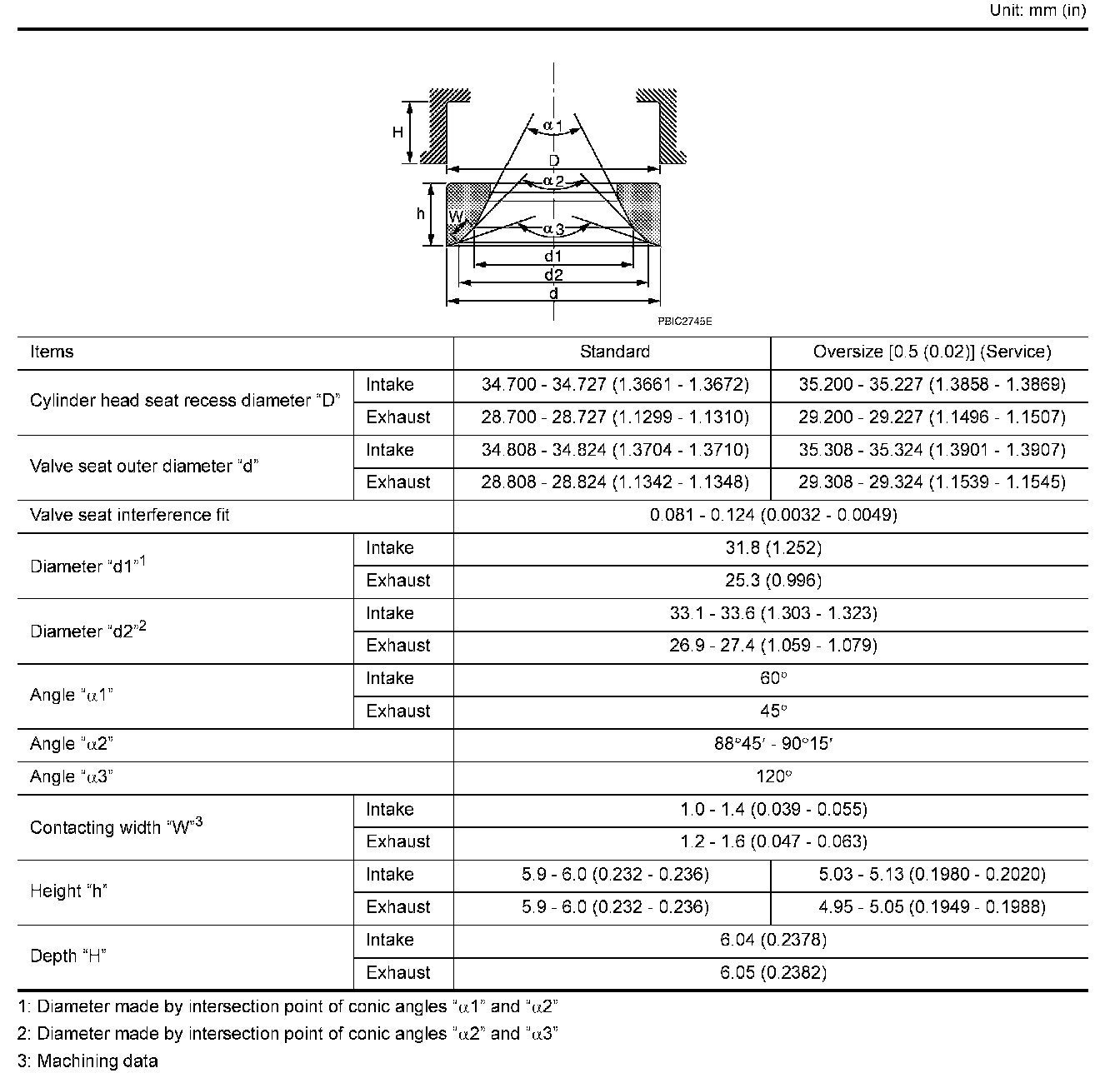

Valve Seat
Unit: mm (in)

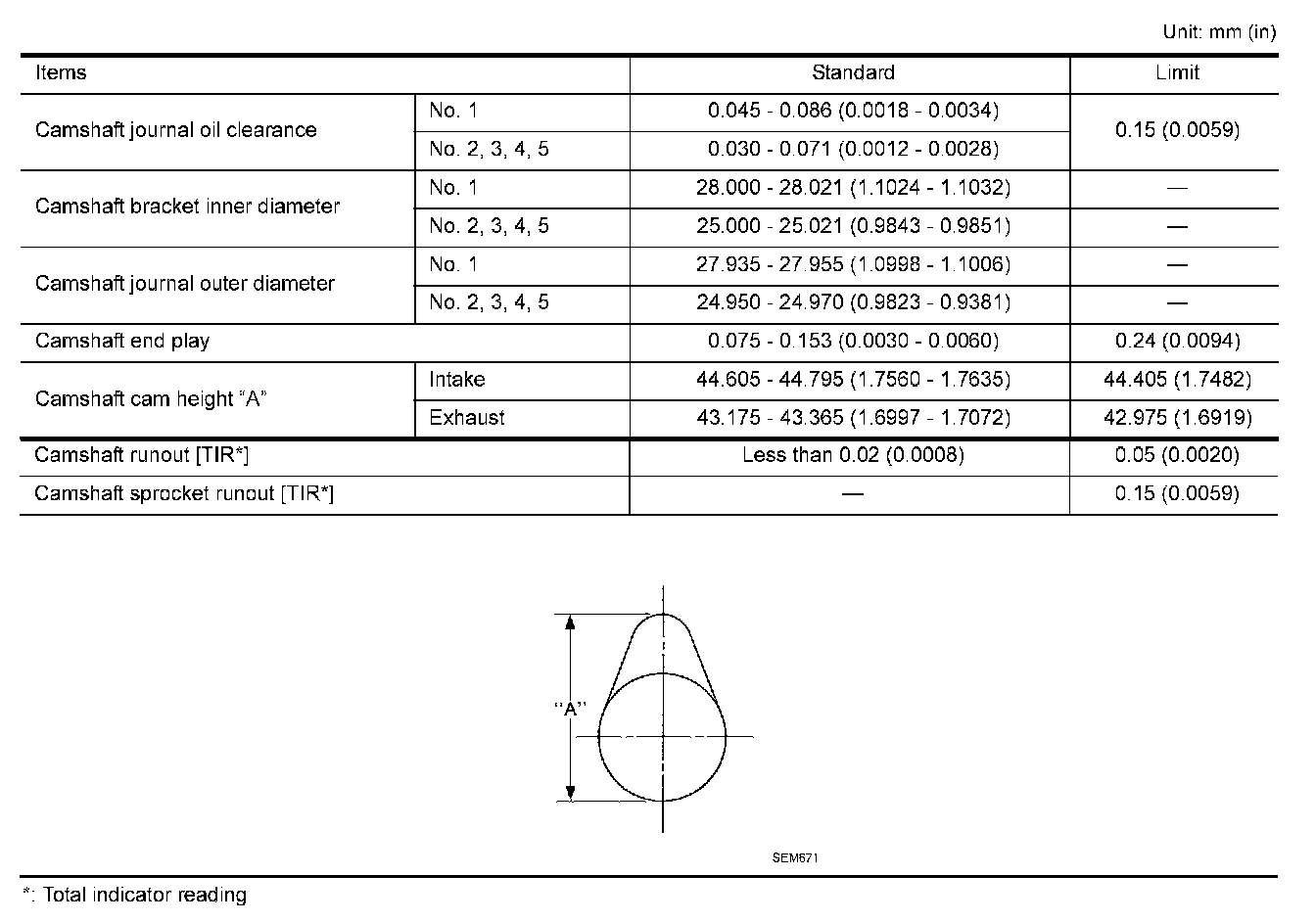

CAMSHAFT AND CAMSHAFT BEARING

Unit: mm (in)






CYLINDER BLOCK

Unit: mm (in)






PISTON, PISTON RING AND PISTON PIN

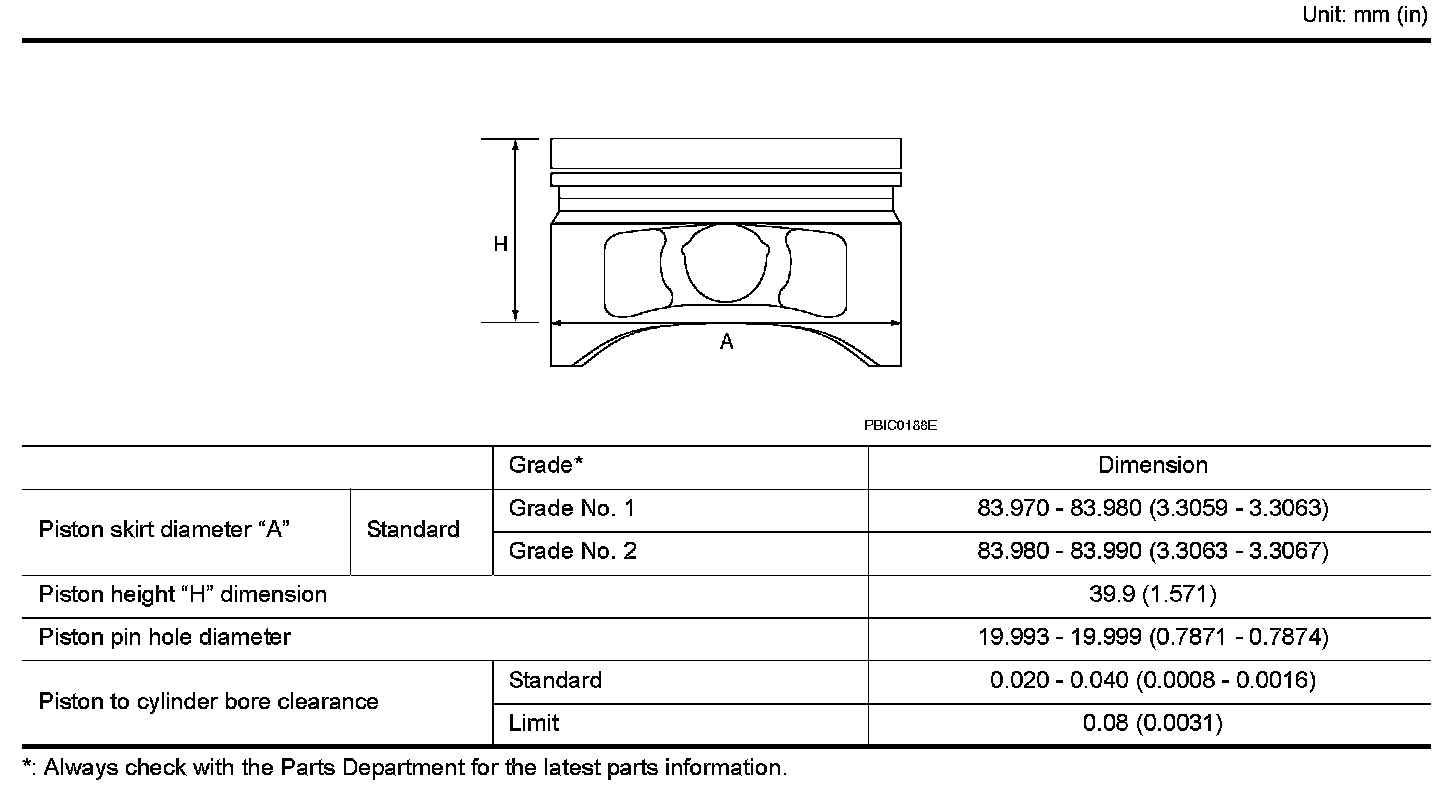

Available Piston
Unit: mm (in)

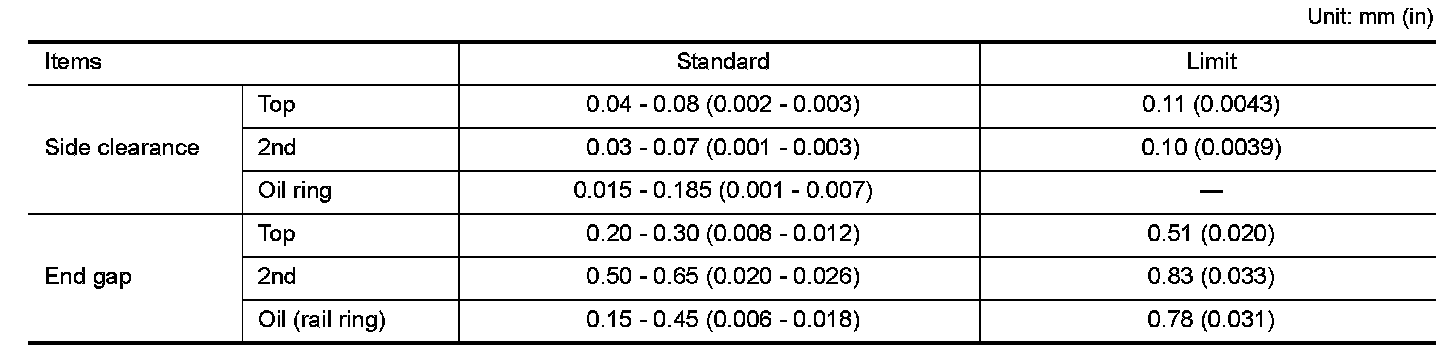

Piston Ring
Unit: mm (in)

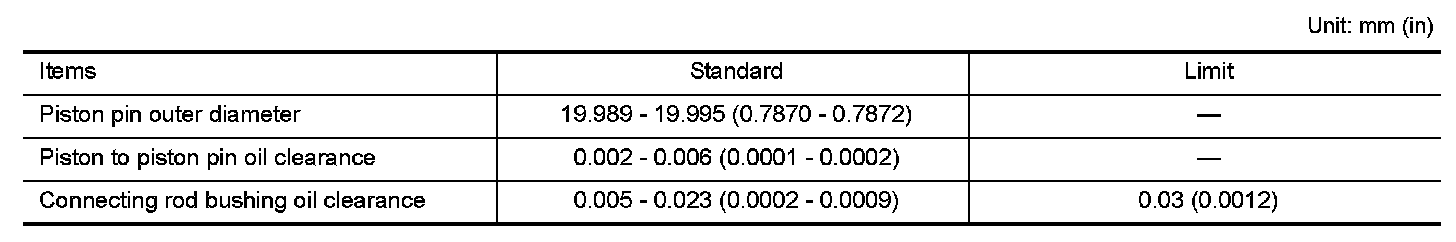

Piston Pin
Unit: mm (in)






CONNECTING ROD

Unit: mm (in)

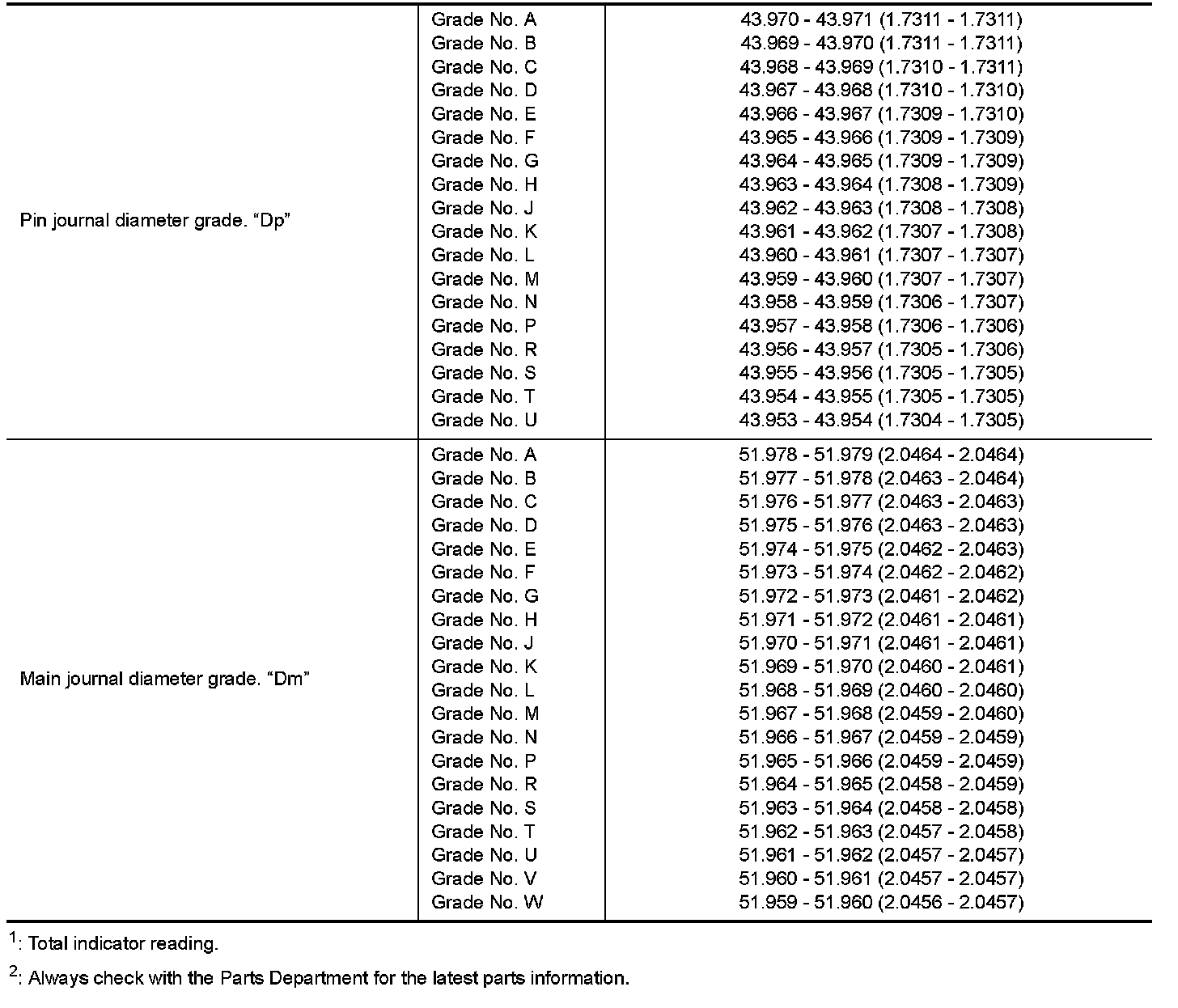

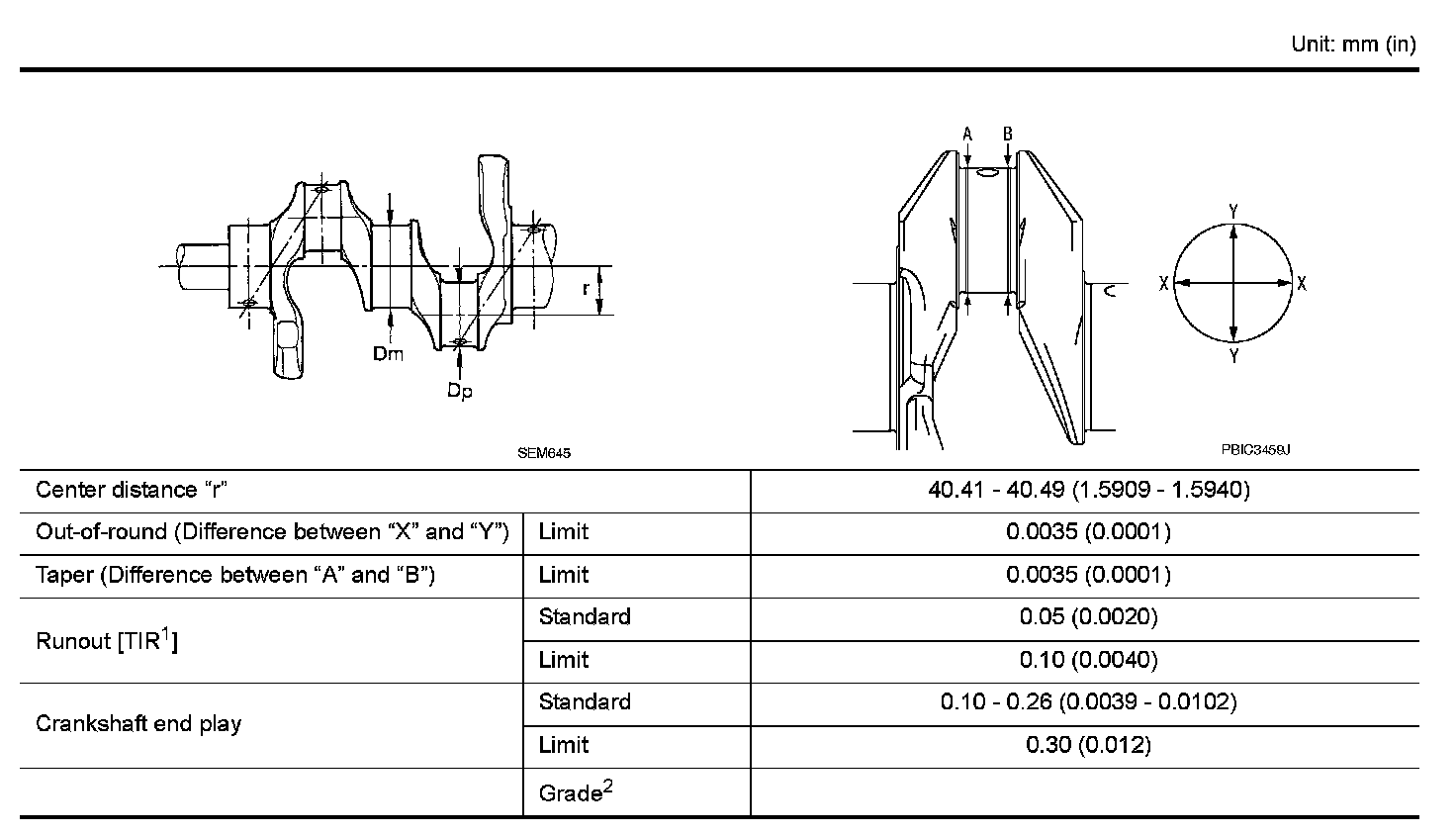

CRANKSHAFT

Unit: mm (in)

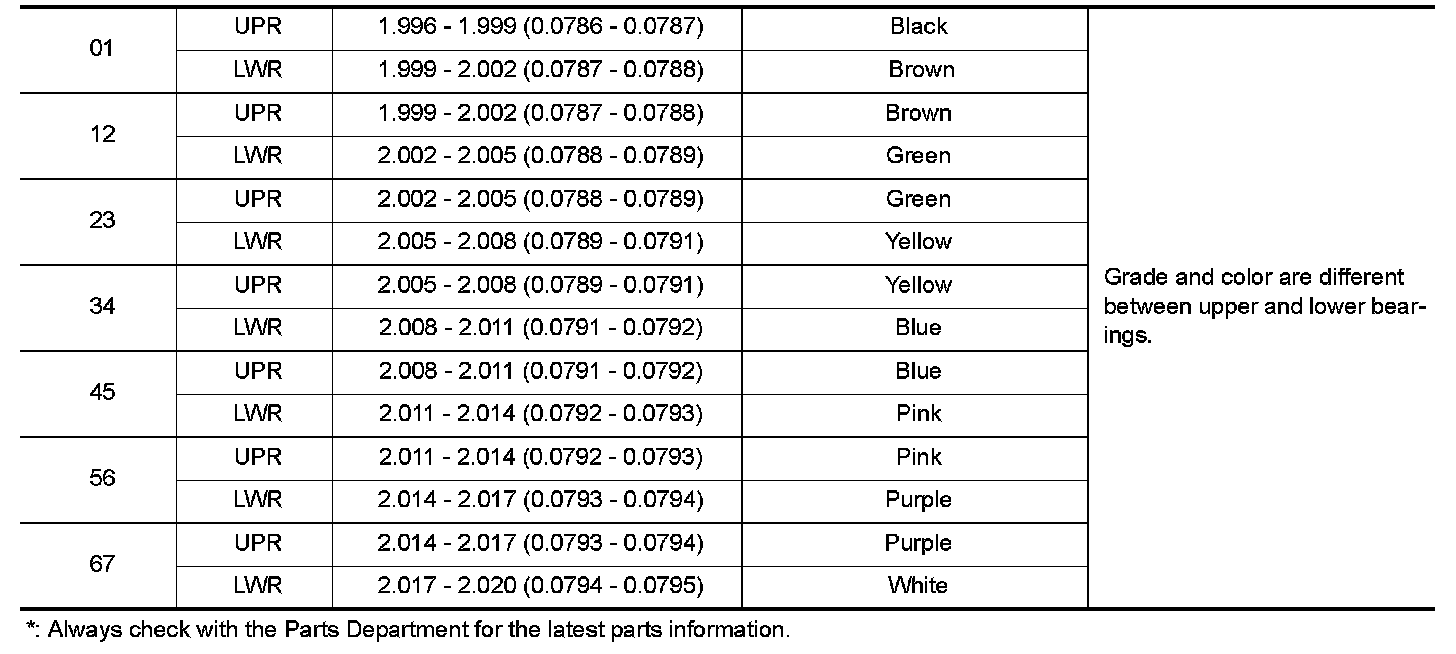

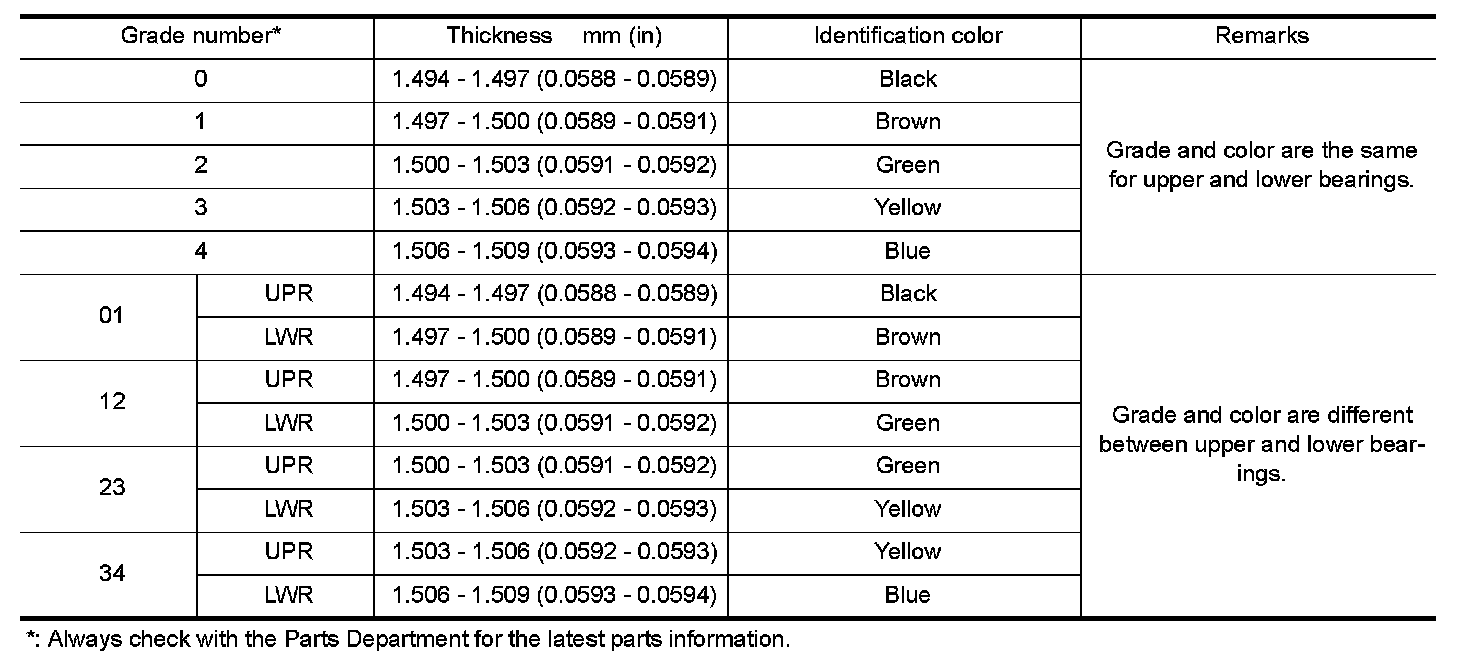

MAIN BEARING

Unit: mm (in)

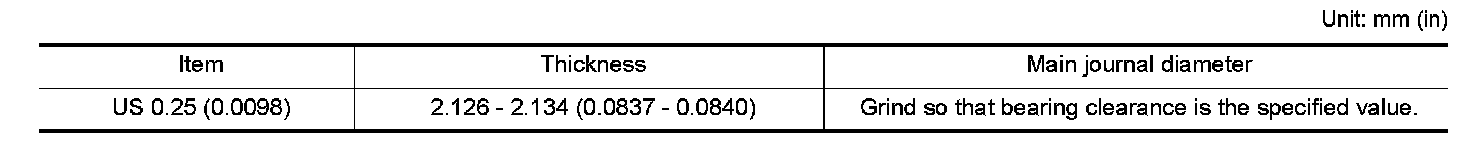

Undersize
Unit: mm (in)

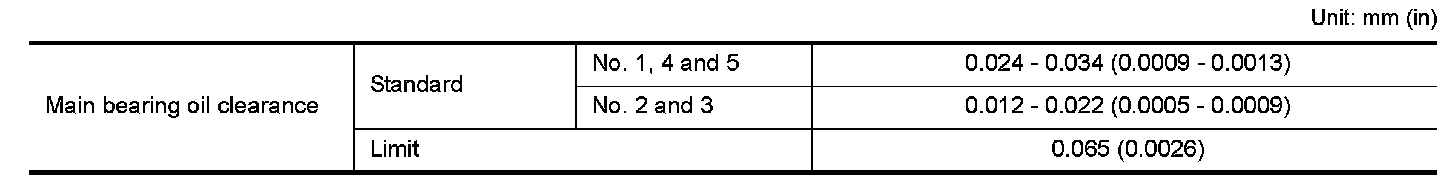

Bearing Oil Clearance
Unit: mm (in)

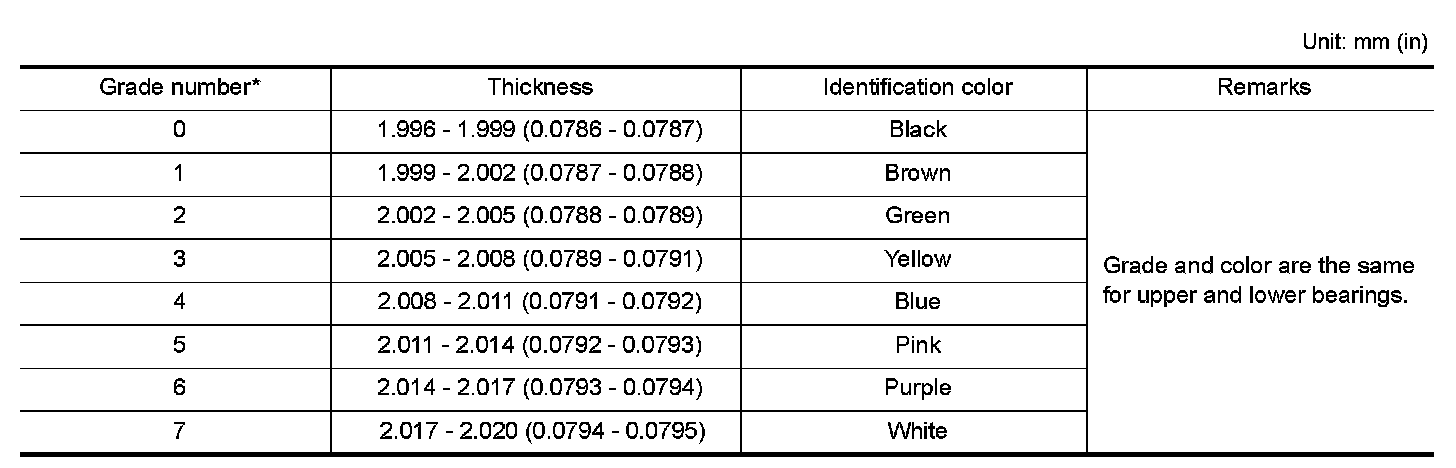

CONNECTING ROD BEARING

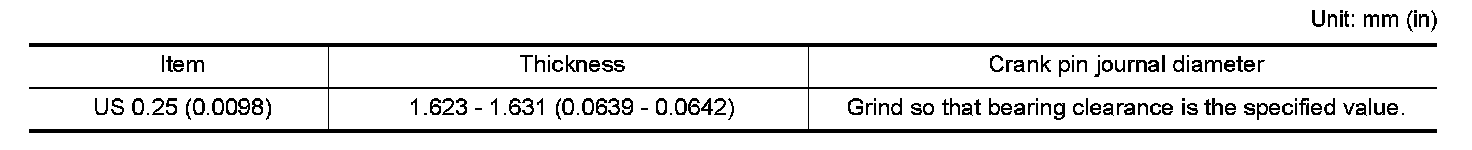

Undersize
Unit: mm (in)

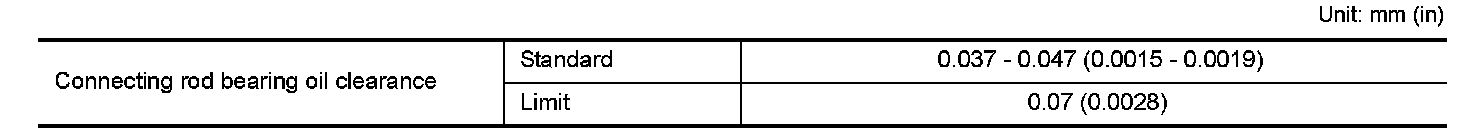

Bearing Oil Clearance
Unit: mm (in)
