CONSULT Function (BCM)

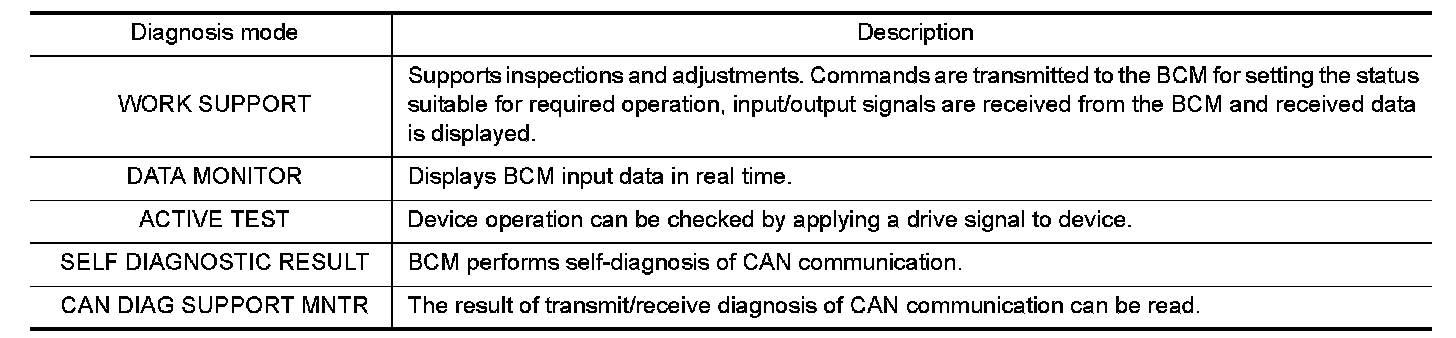

FRONT WIPER AND WASHER SYSTEMCONSULT Function (BCM) CONSULT can display each diagnostic item using the diagnostic test modes shown following.

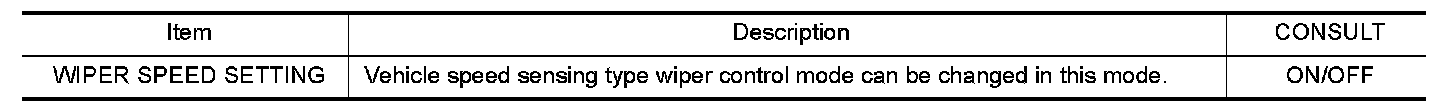

WORK SUPPORT Display Item List

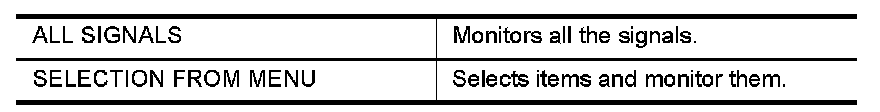

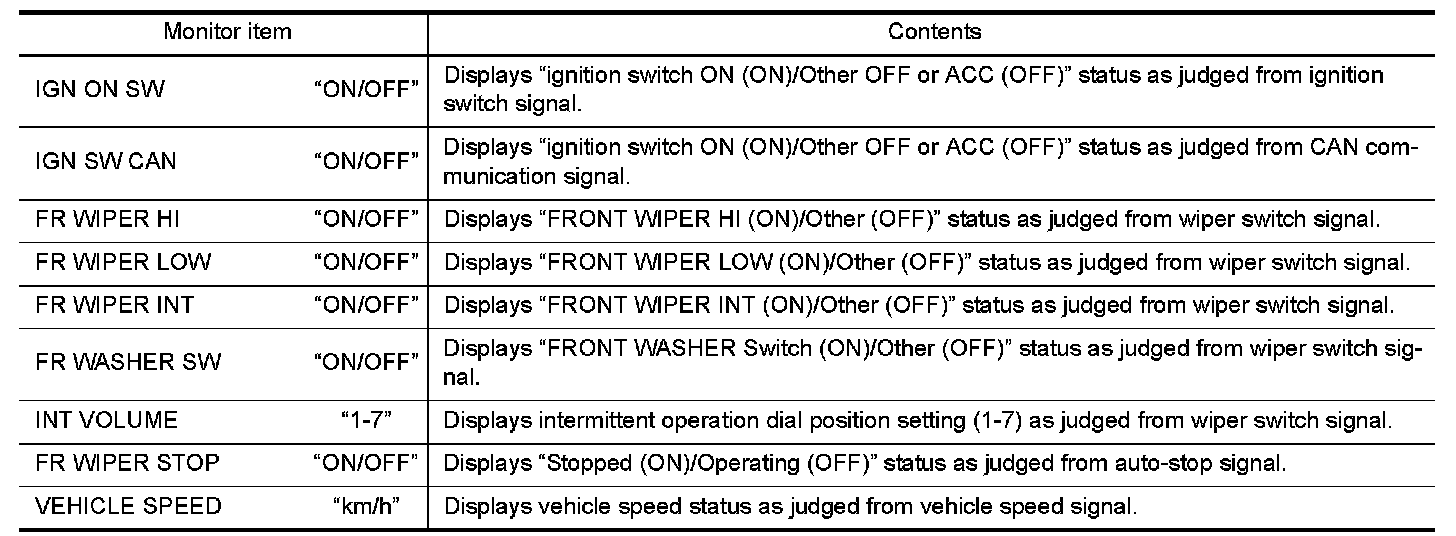

DATA MONITOR Display Item List

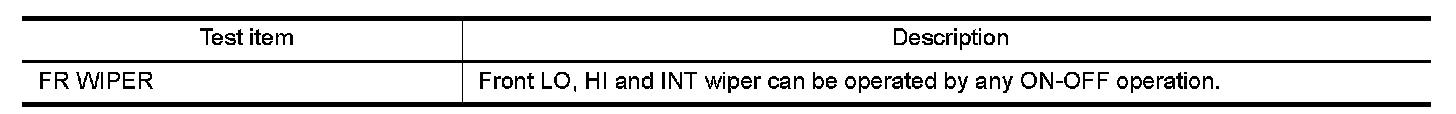

ACTIVE TEST Display Item List
