Connector Locations




HARNESS

Harness Layout


HOW TO READ HARNESS LAYOUT






The following Harness Layouts use a map style grid to help locate connectors on the drawings:
- Main Harness, Hazard Switch Sub-harness, Console Switch Subharness and Console Sub-harness
- Engine Room Harness
- Engine Room Harness Passenger Compartment and EPS Subharness
- Engine Control Harness (MR-20DE) and Engine Control Harness (QR-25DE)
- Body Harness, Tail Sub-harness and Tail No. 2 Sub-harness
- Room Lamp Harness and Sunroof Sub-harness

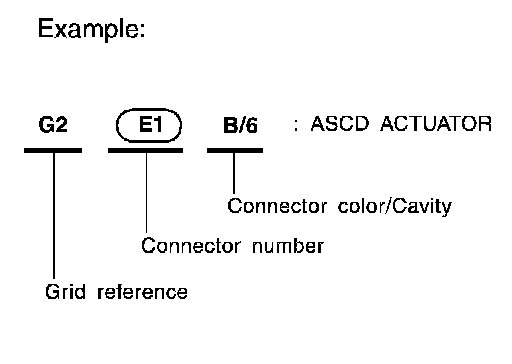

To use the grid reference
1.Find the desired connector number on the connector list.
2.Find the grid reference.
3.On the drawing, find the crossing of the grid reference letter column and number row.
4.Find the connector number in the crossing zone.
5.Follow the line to the connector.

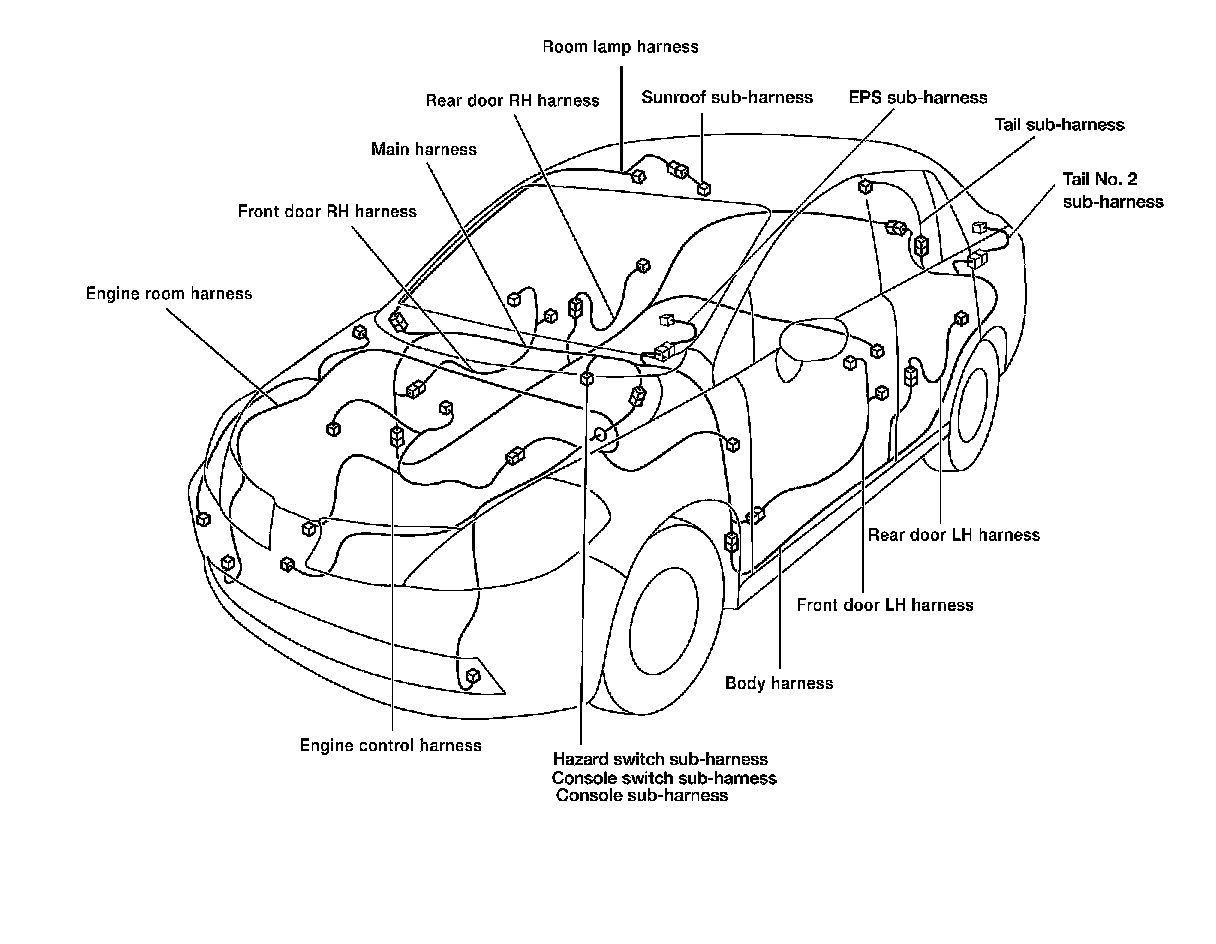

OUTLINE

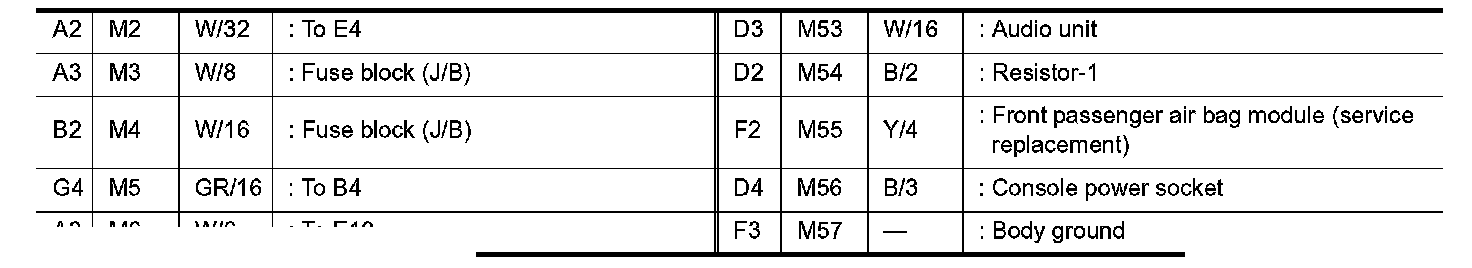

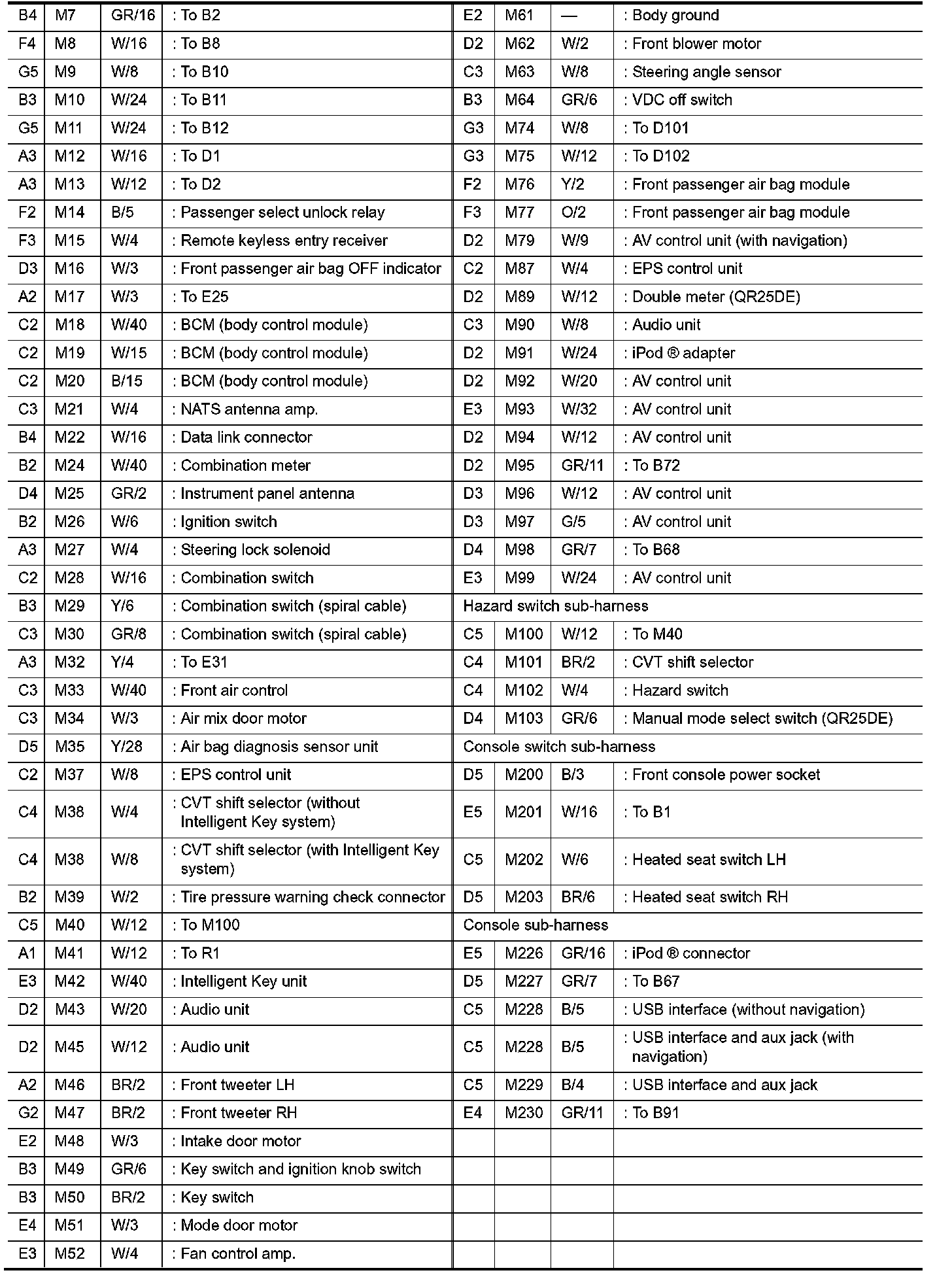

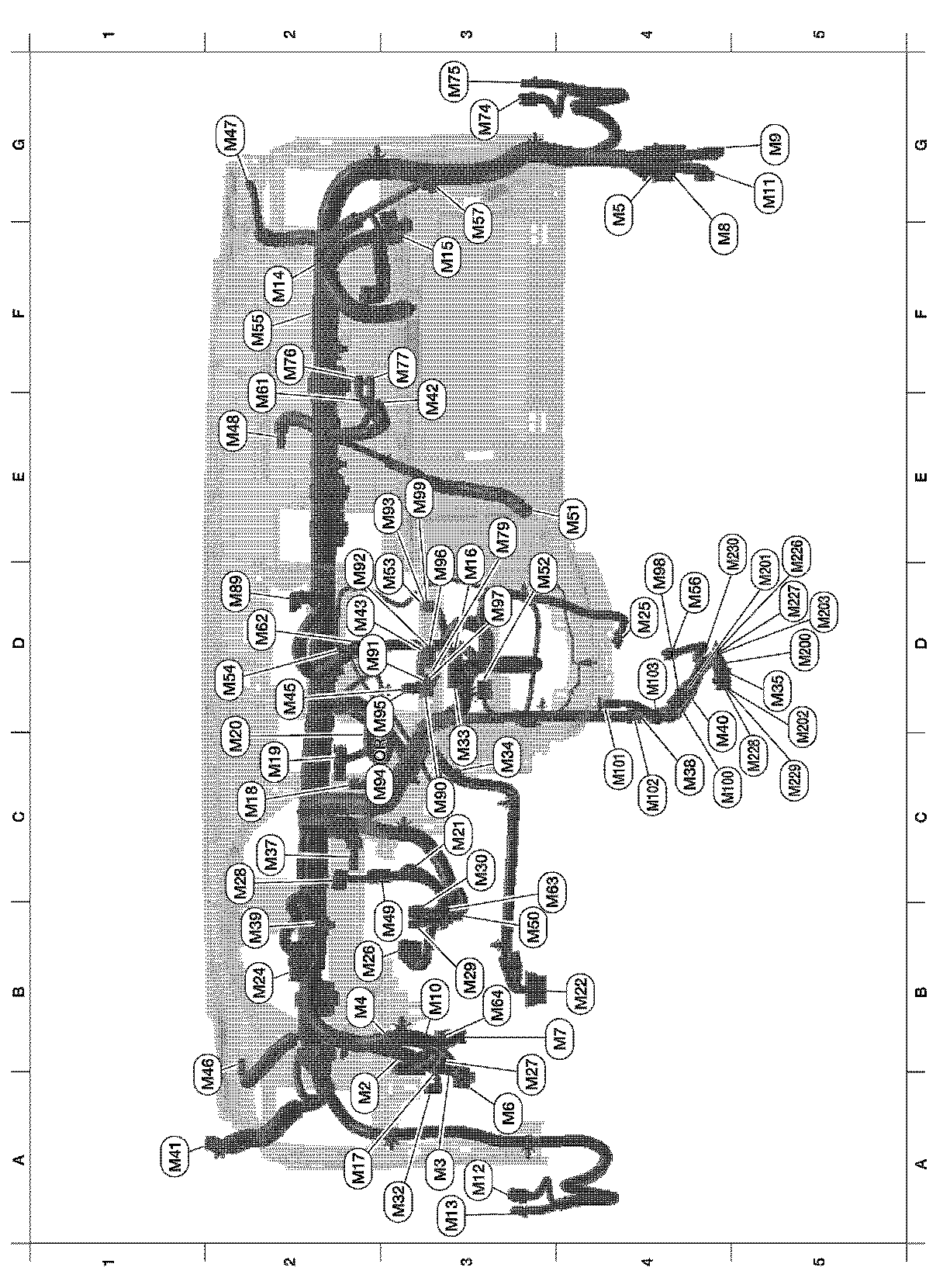

MAIN HARNESS

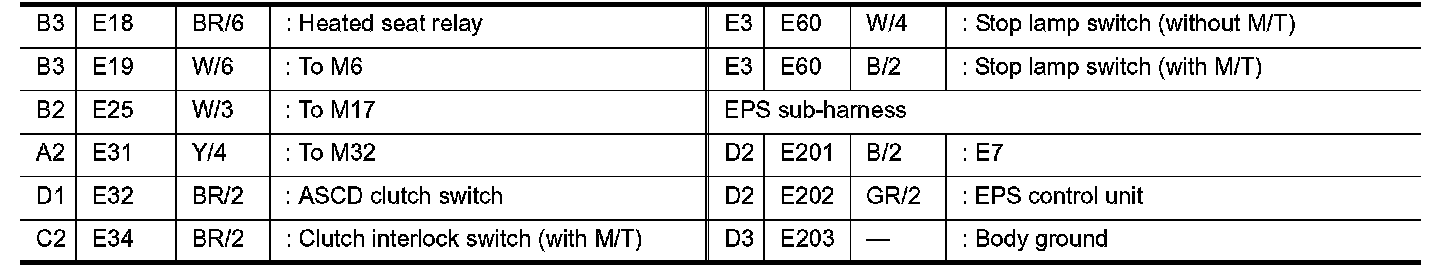

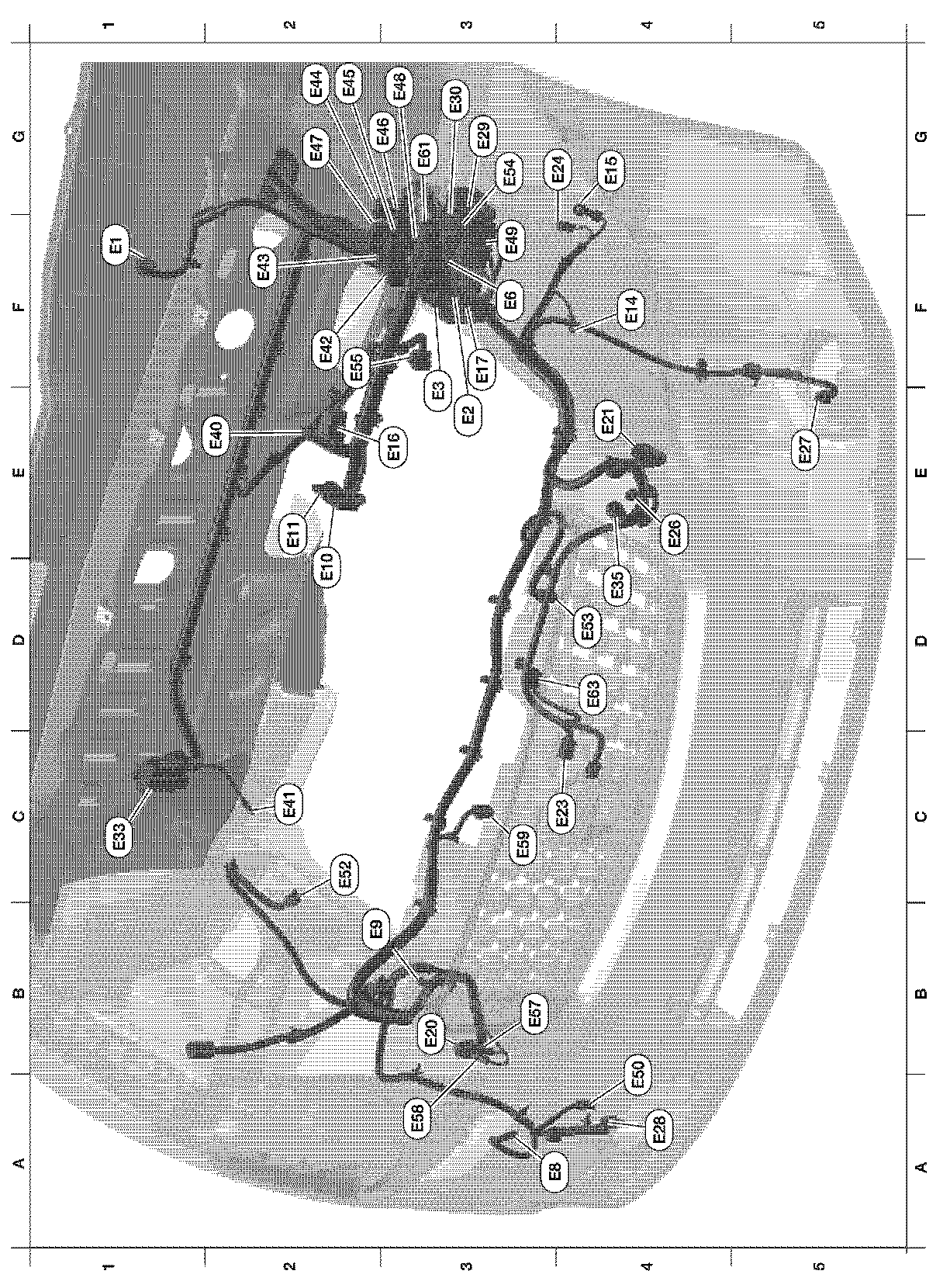

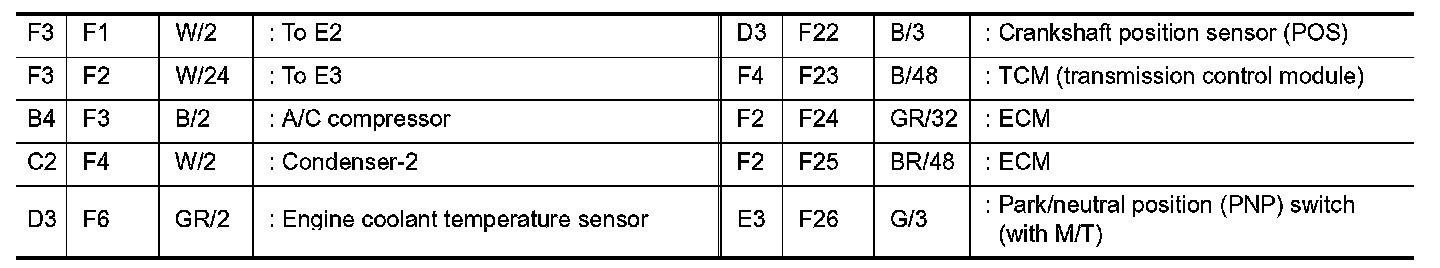

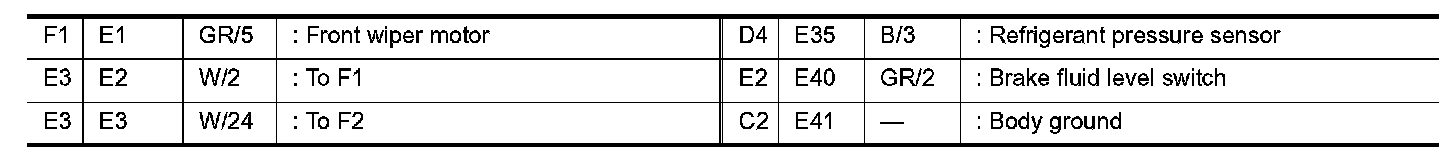

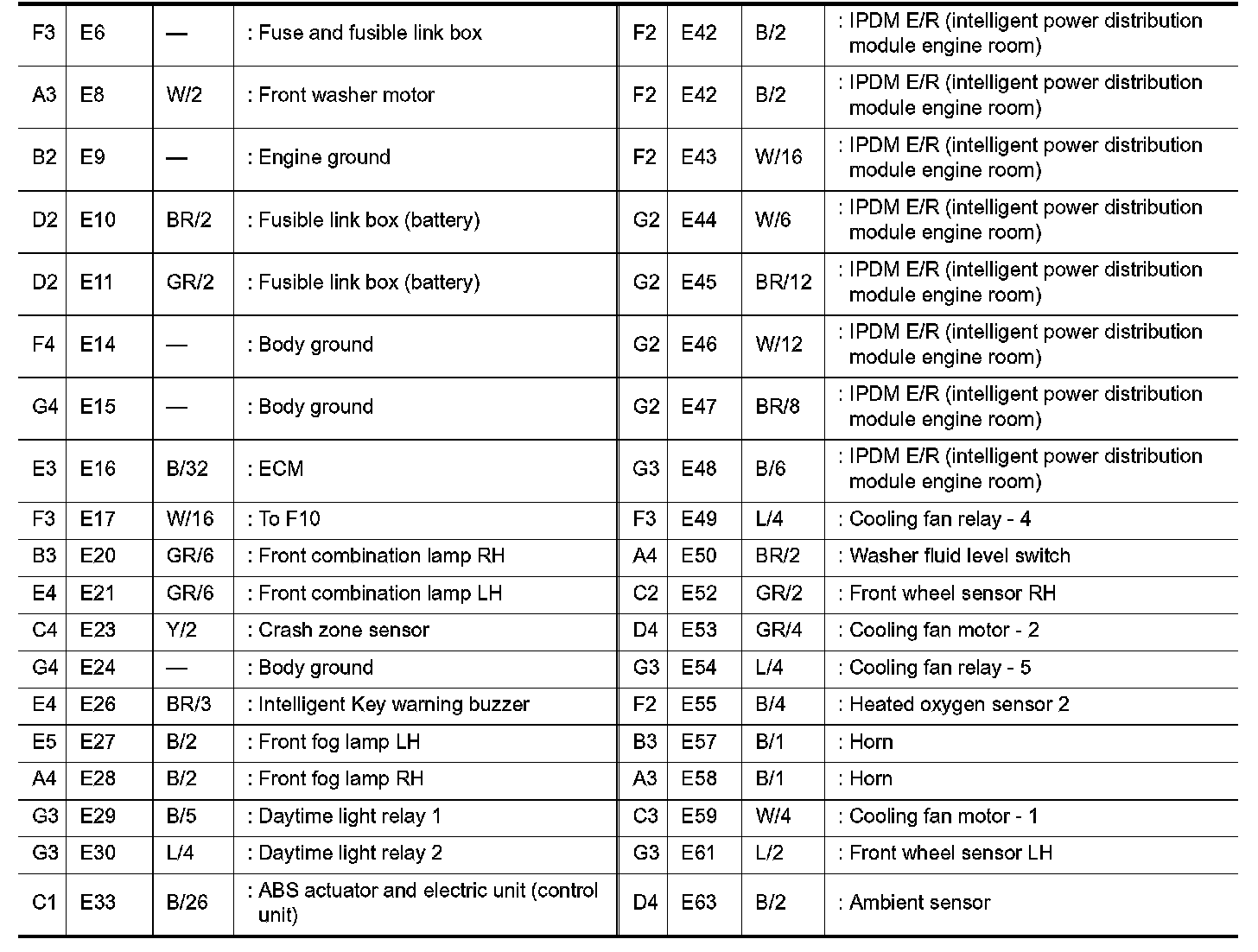

ENGINE ROOM HARNESS






Refer to "PASSENGER COMPARTMENT" for continuation of engine room harness.

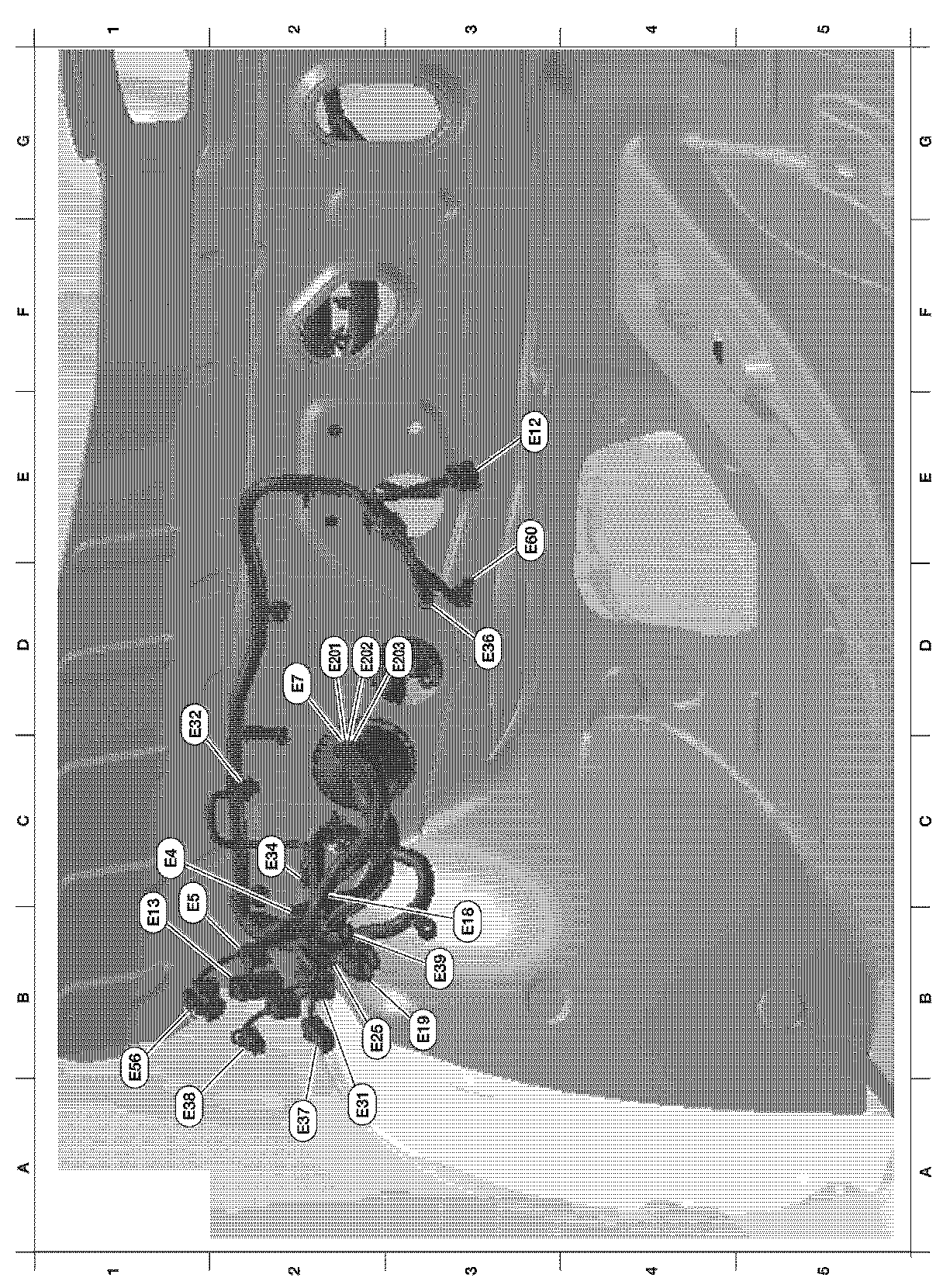

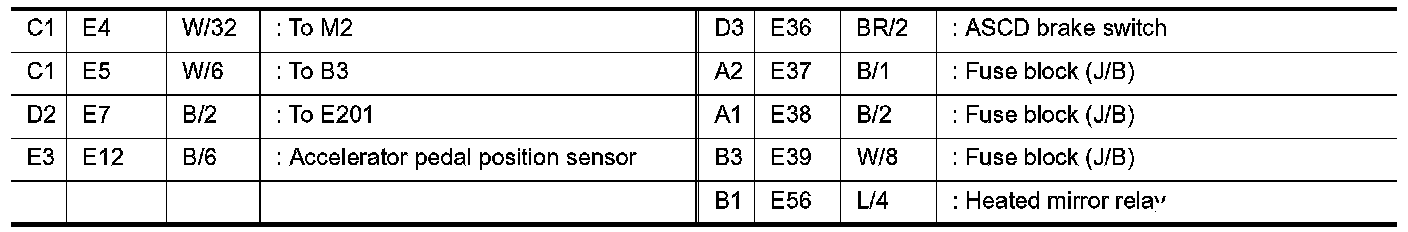

PASSENGER COMPARTMENT






Refer to "ENGINE ROOM HARNESS" for continuation of engine room harness.











ENGINE CONTROL HARNESS (MR20DE)

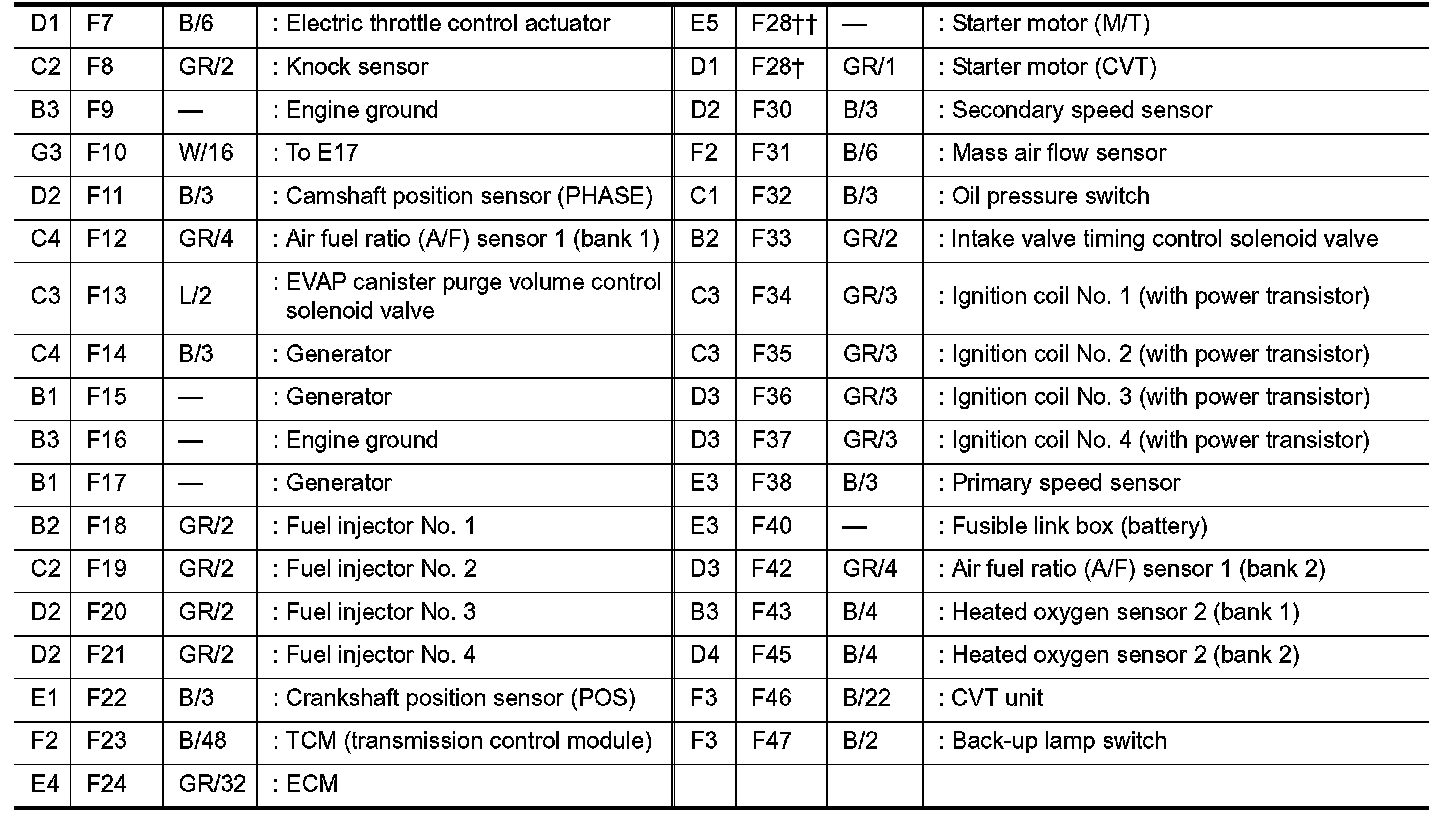

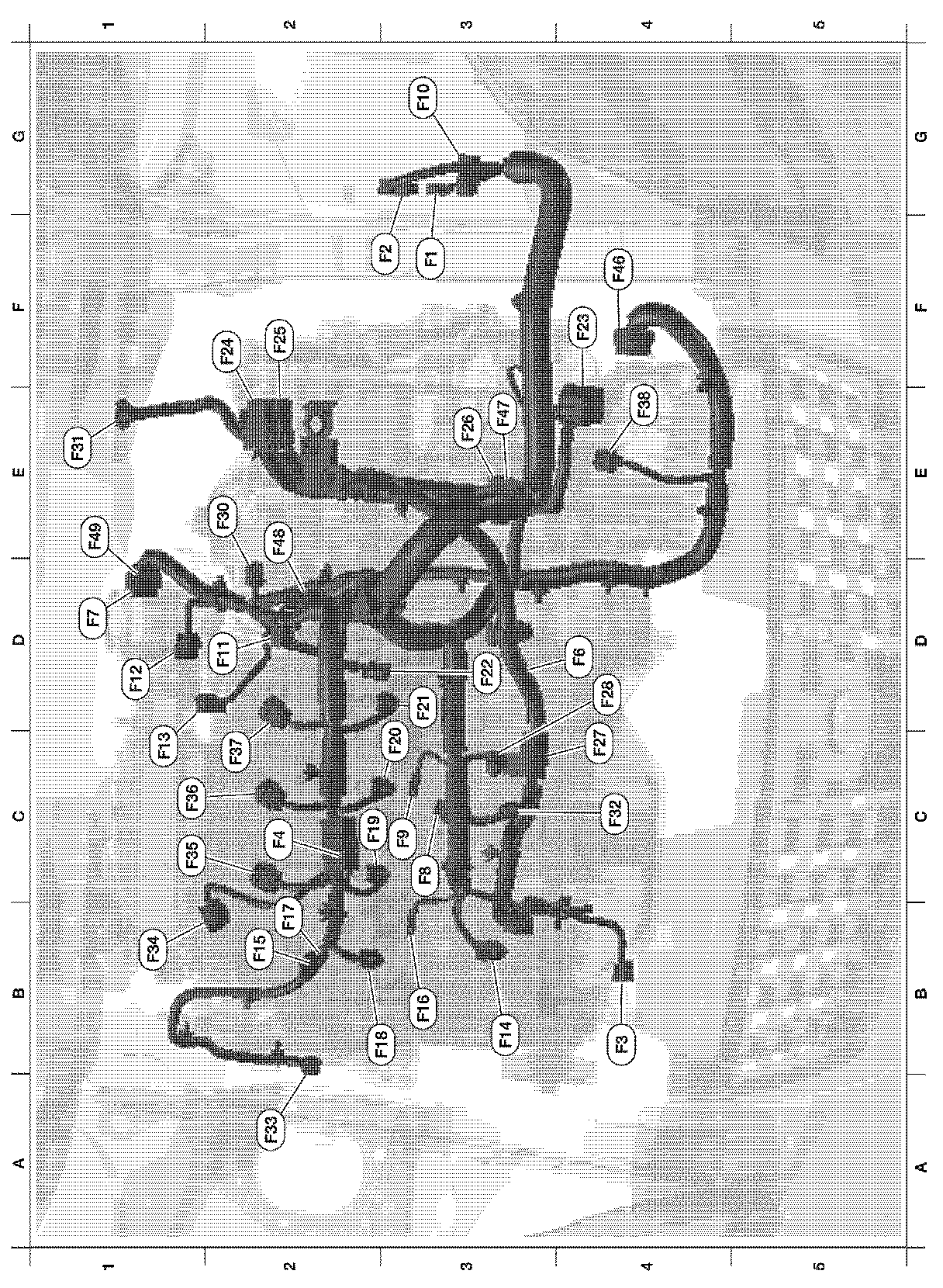

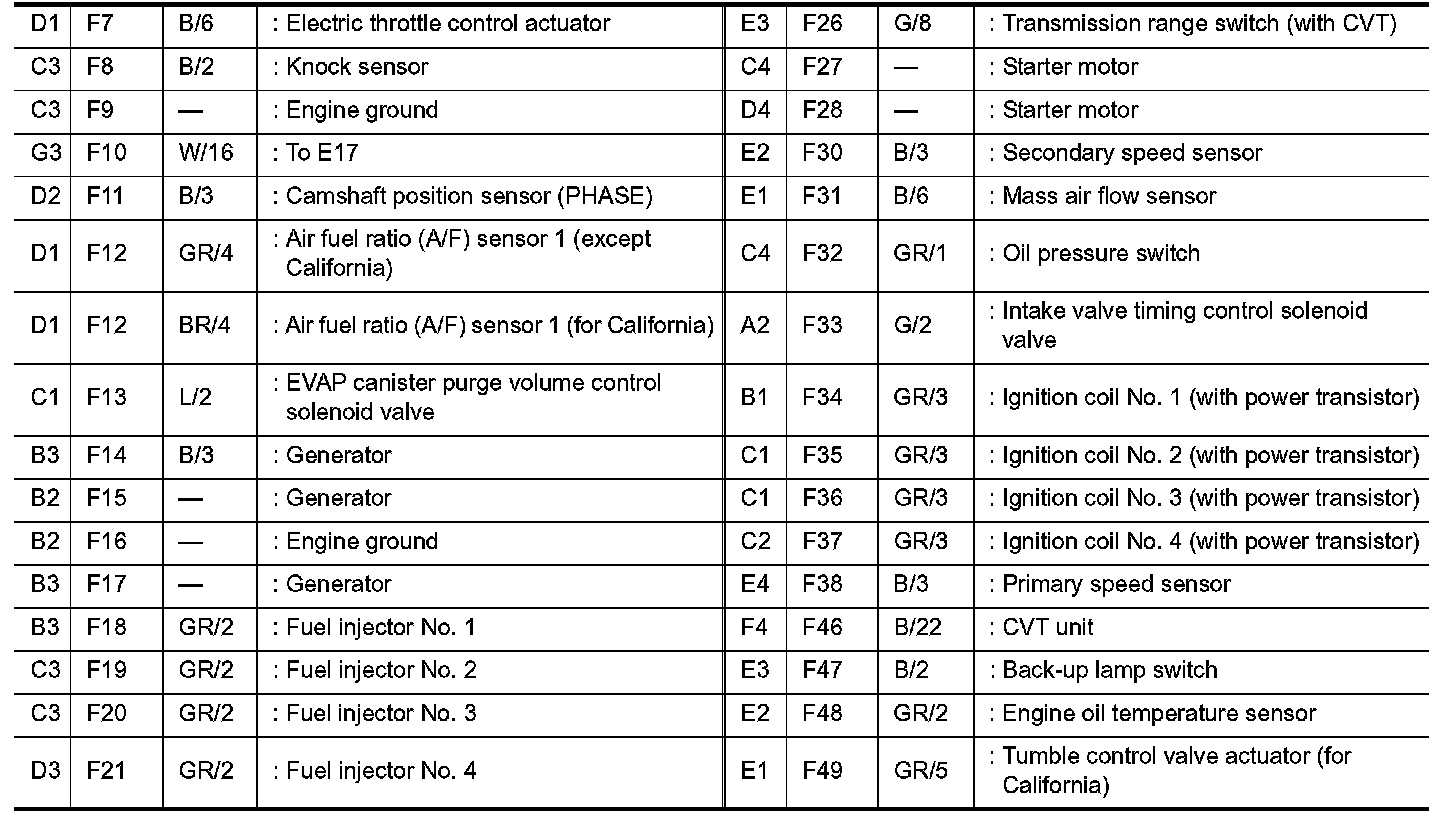

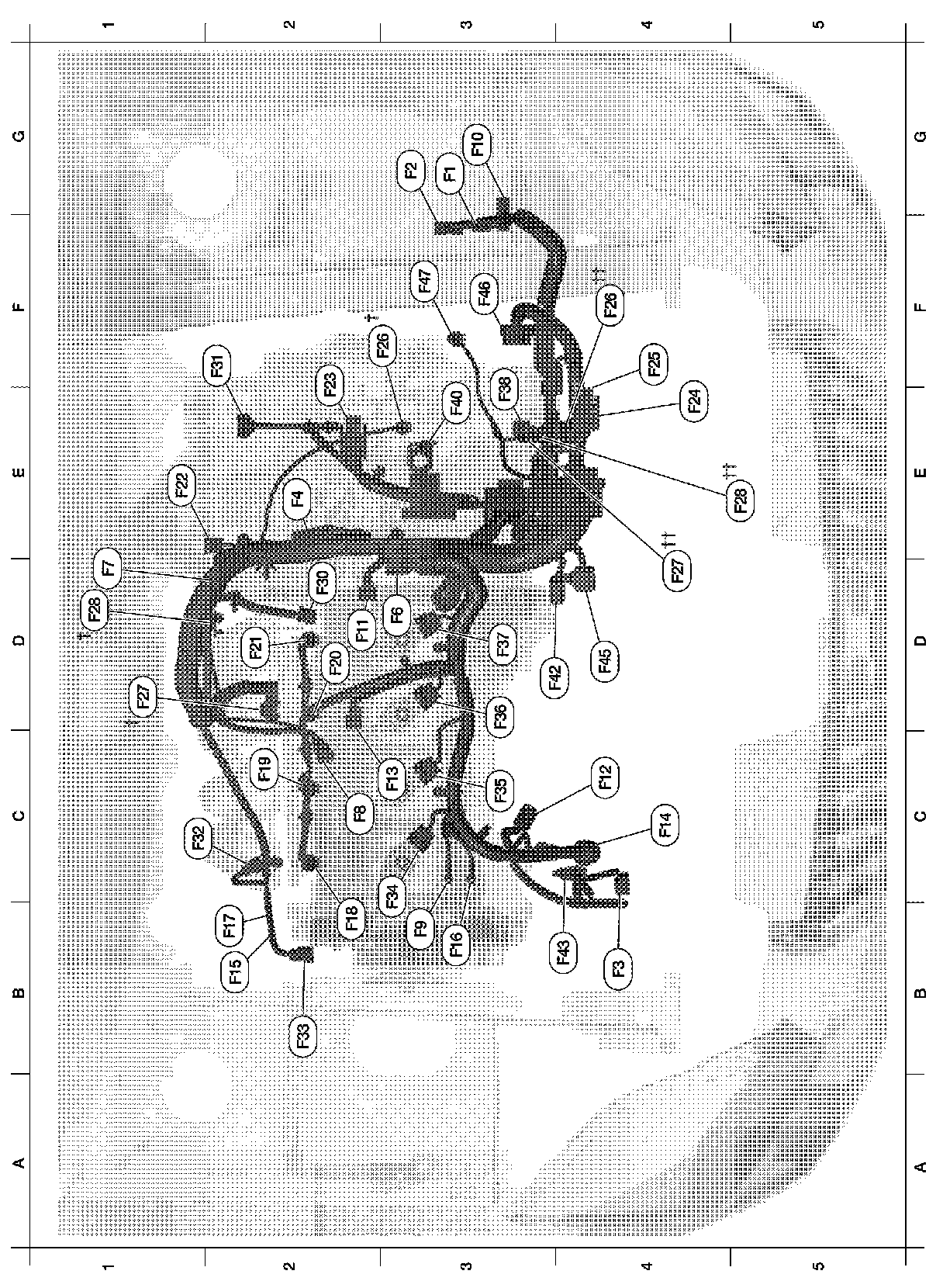

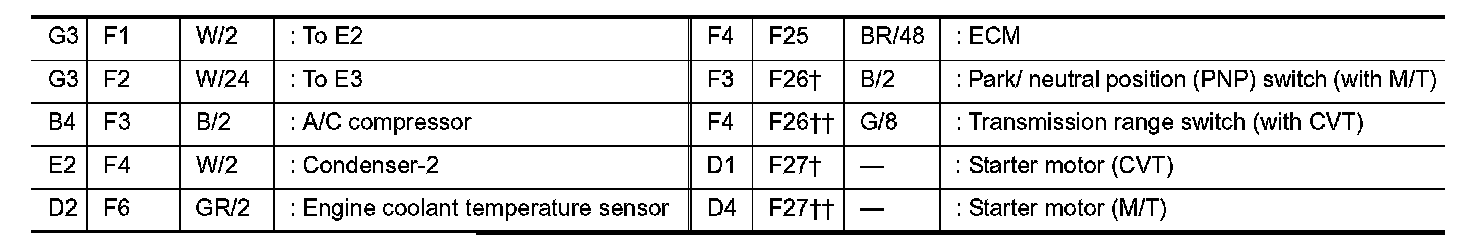

ENGINE CONTROL HARNESS (QR25DE)

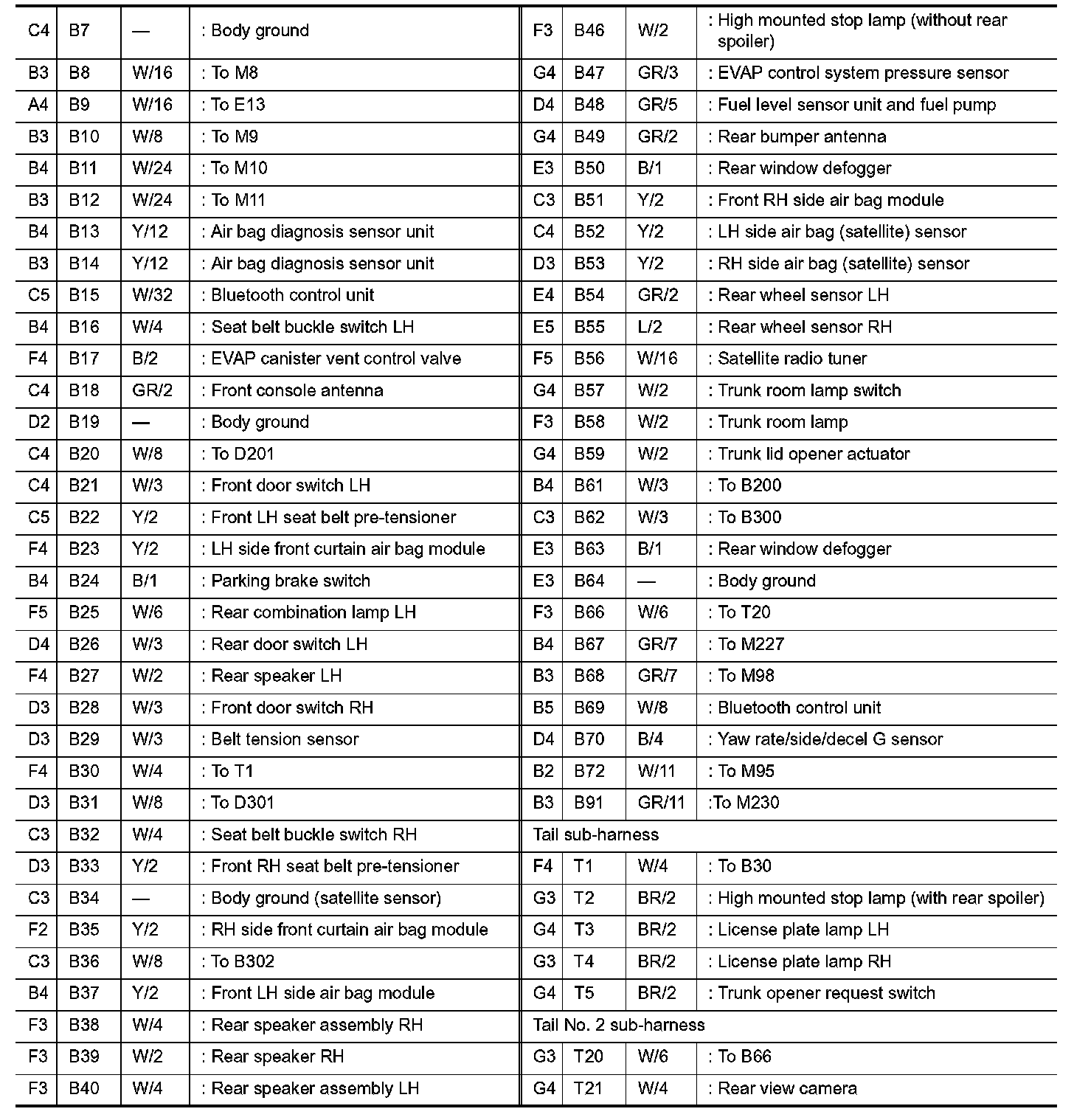

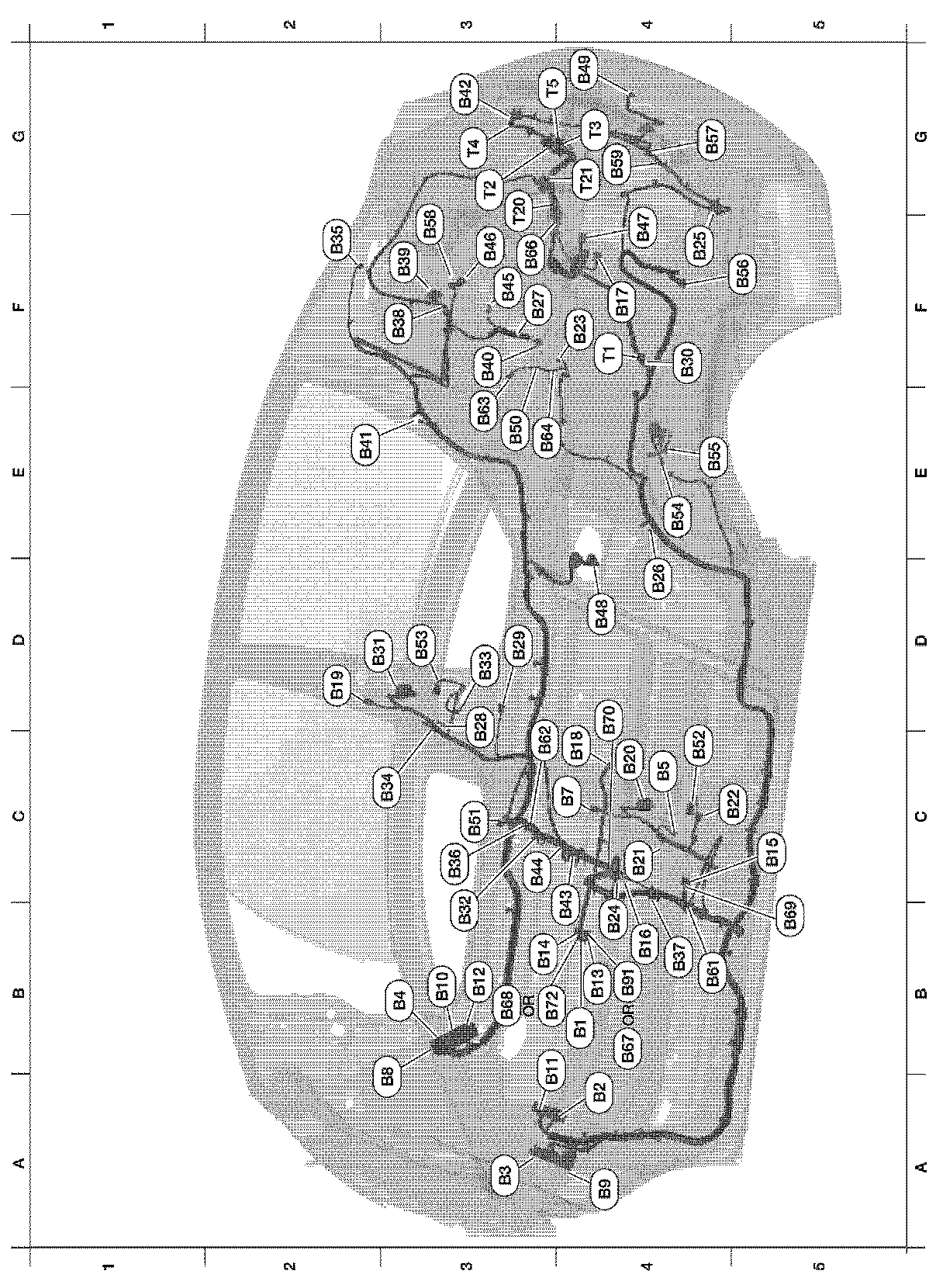

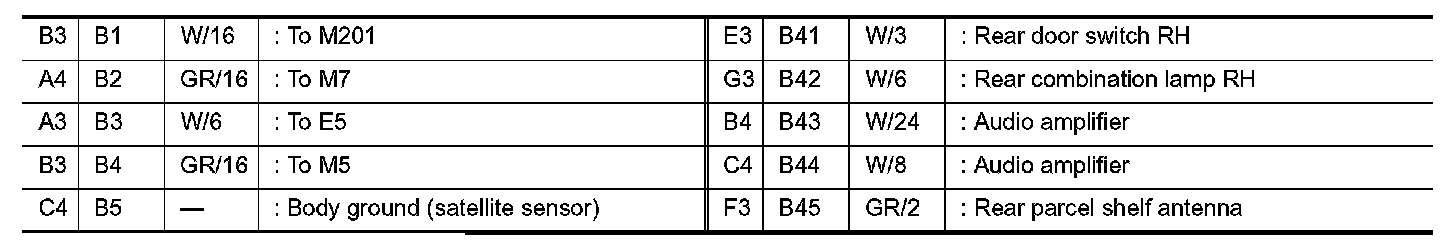

BODY HARNESS

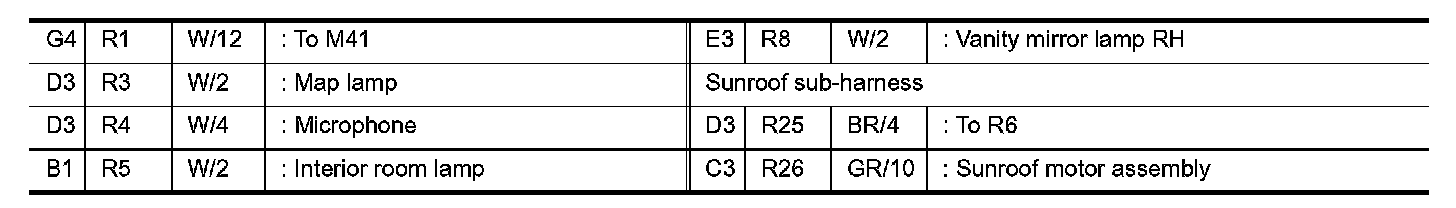

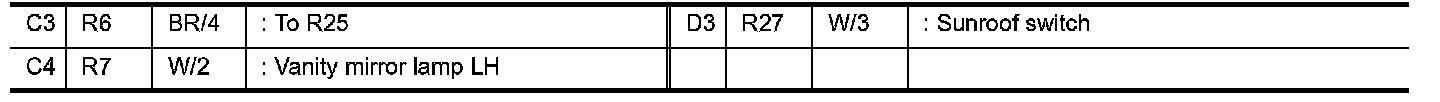

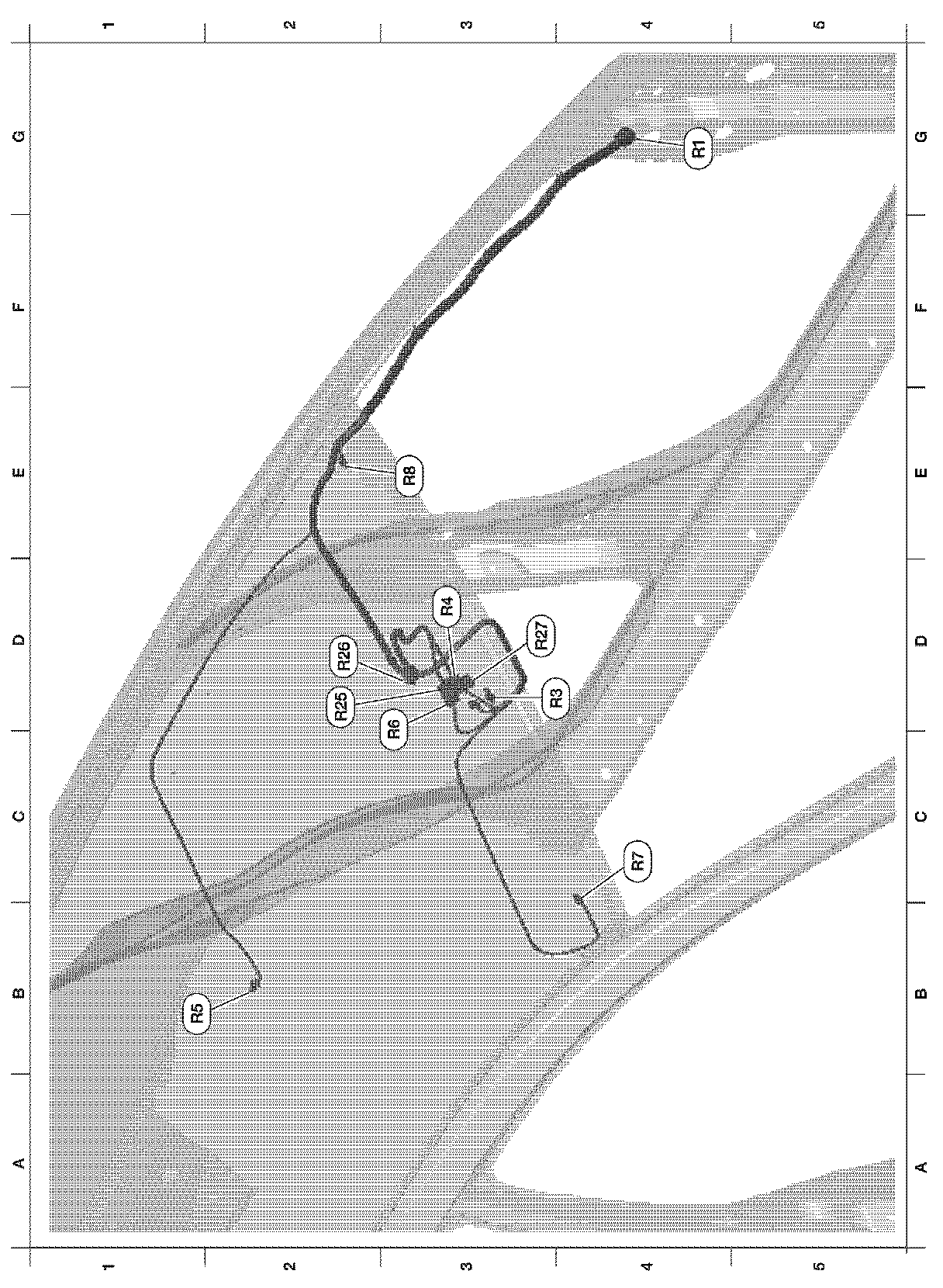

ROOM LAMP HARNESS

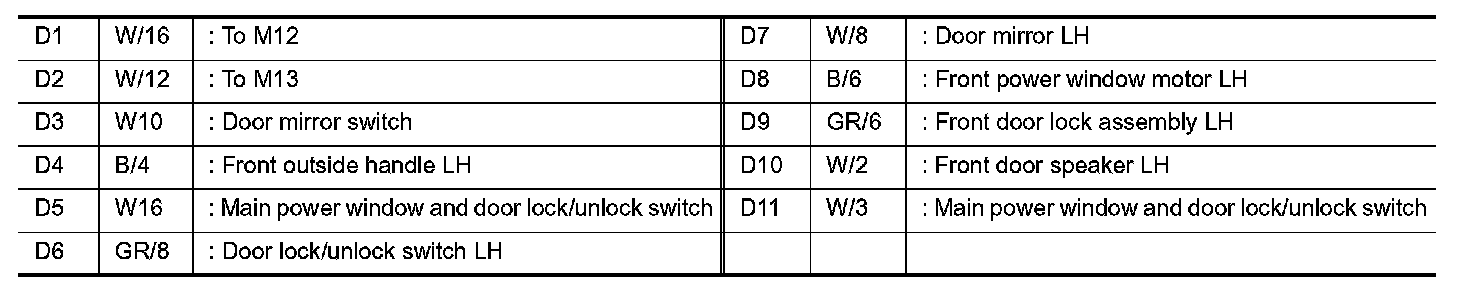

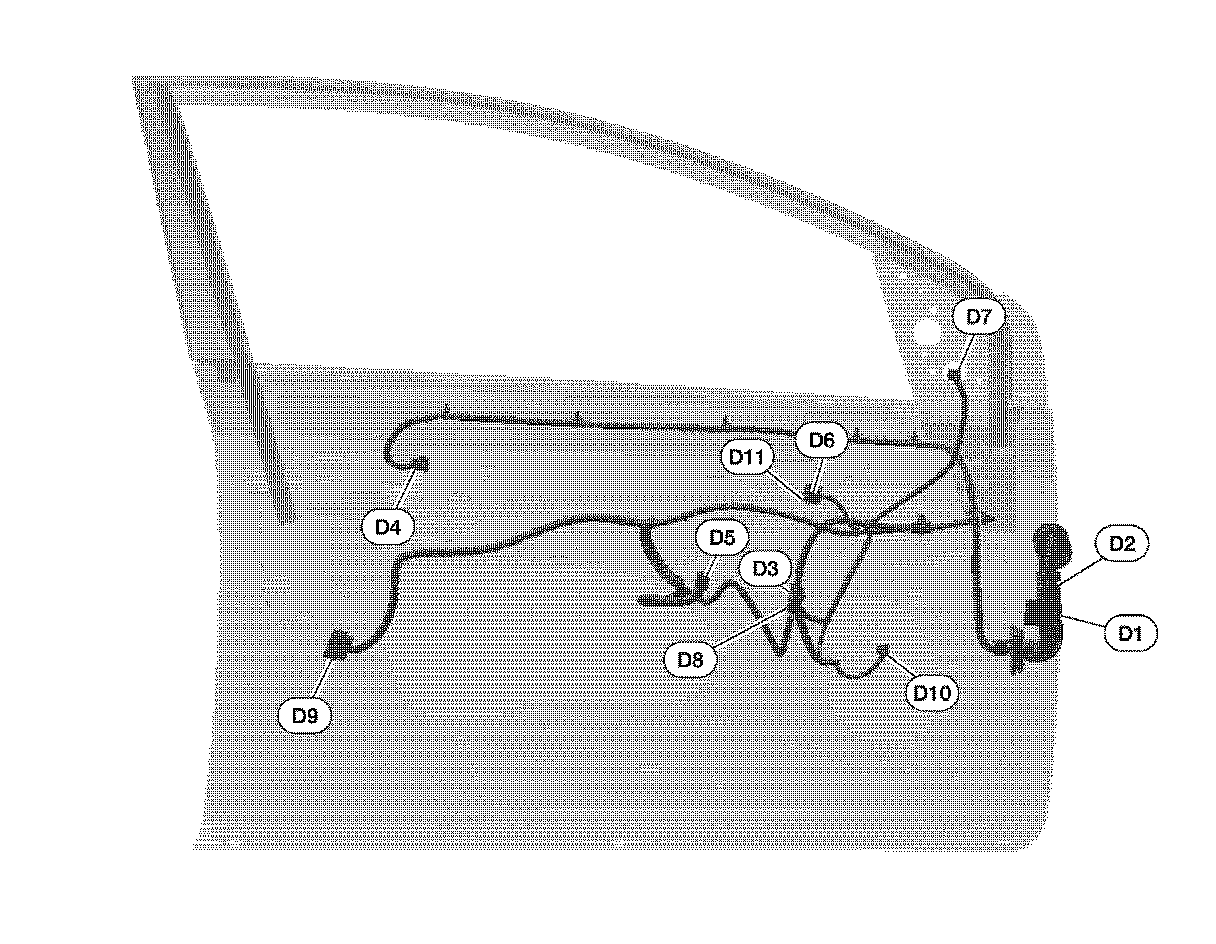

FRONT DOOR LH HARNESS

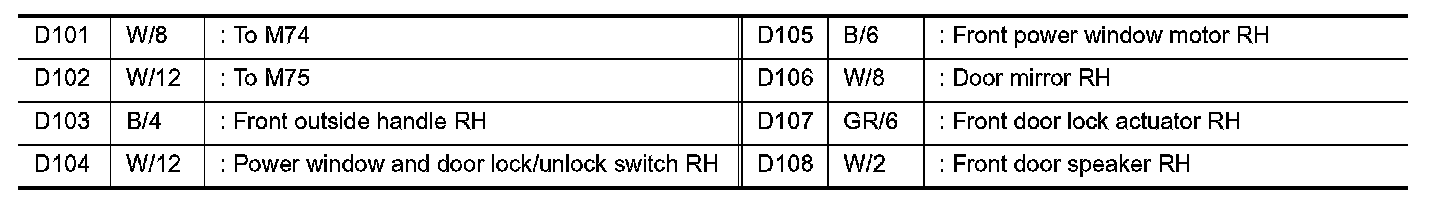

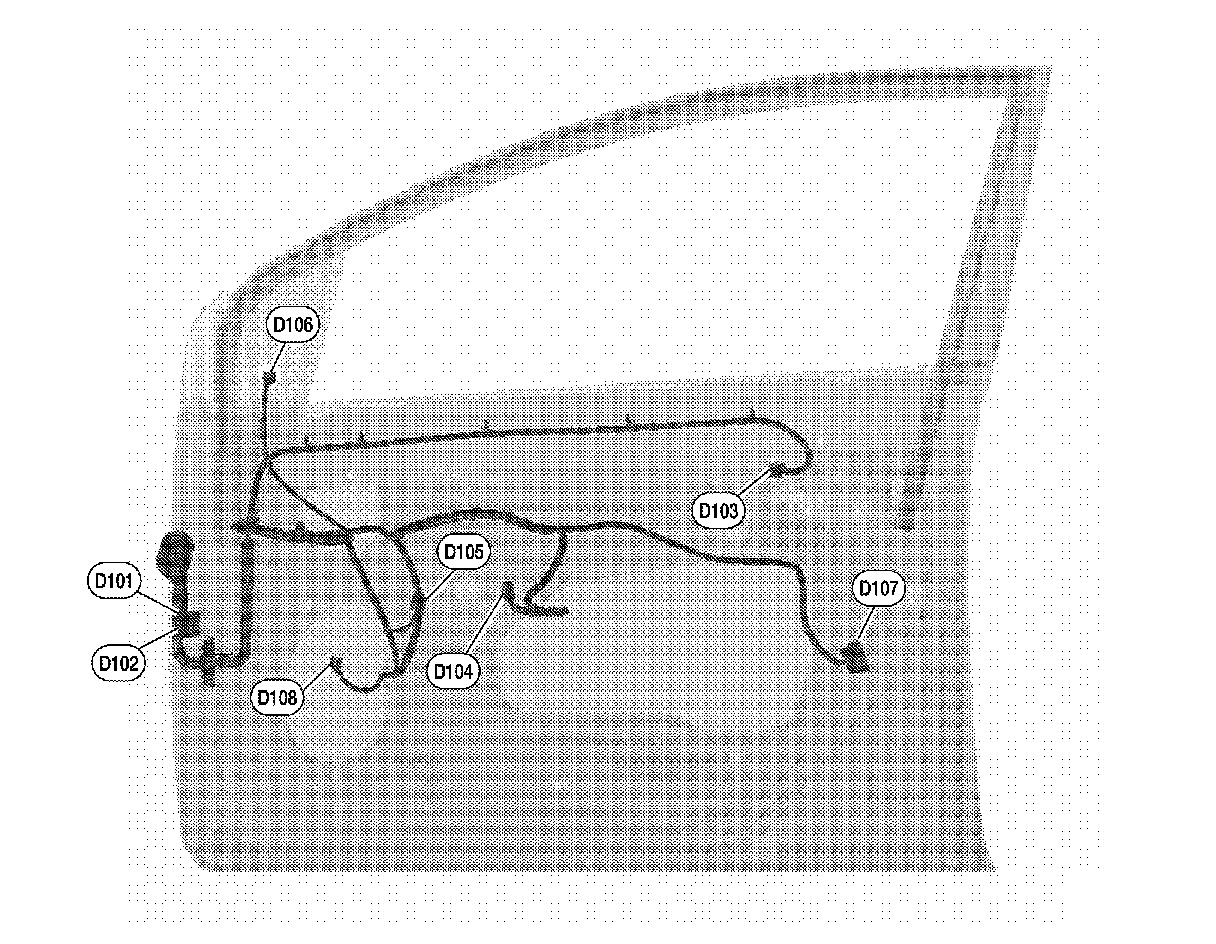

FRONT DOOR RH HARNESS

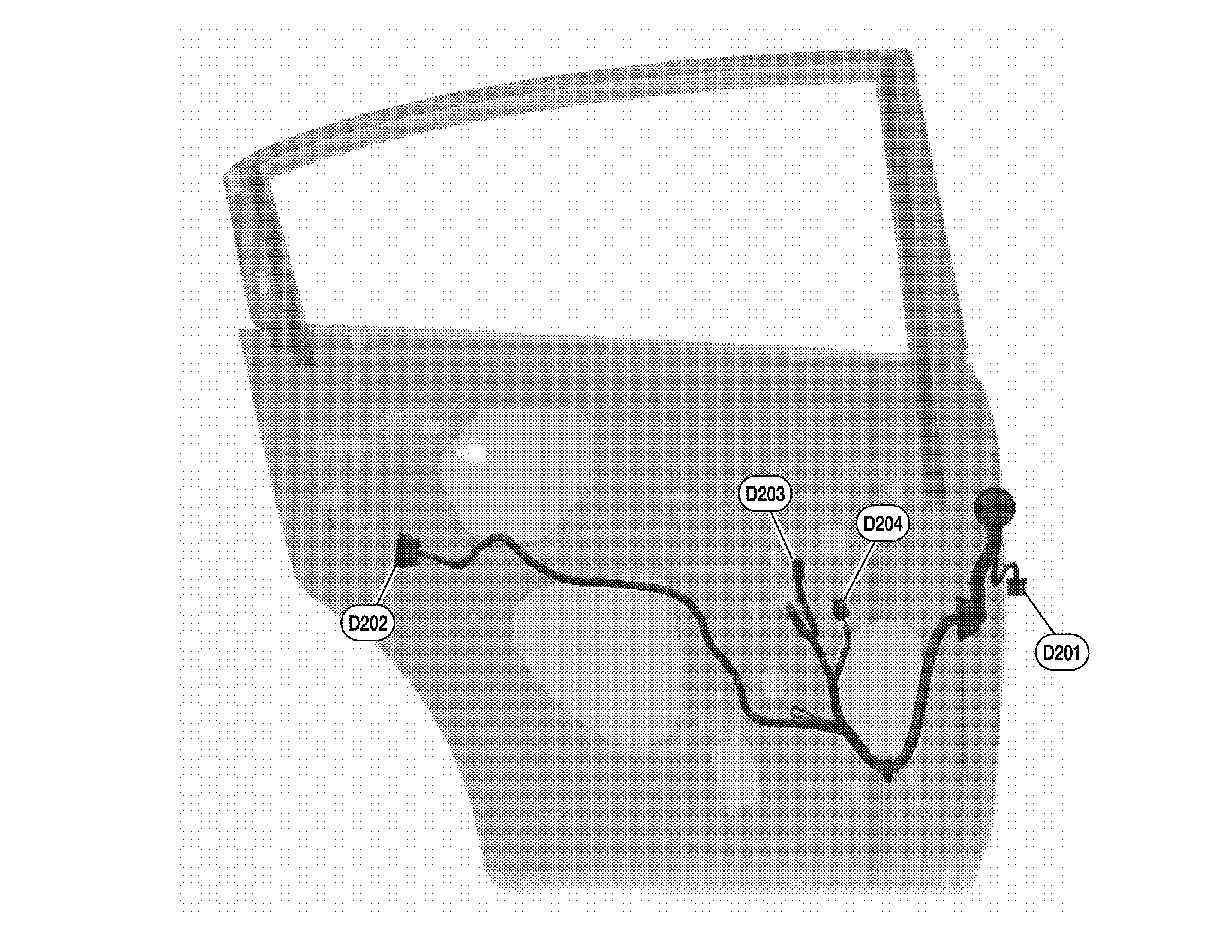

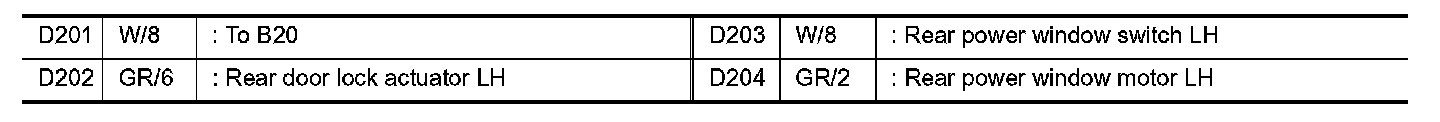

REAR DOOR LH HARNESS

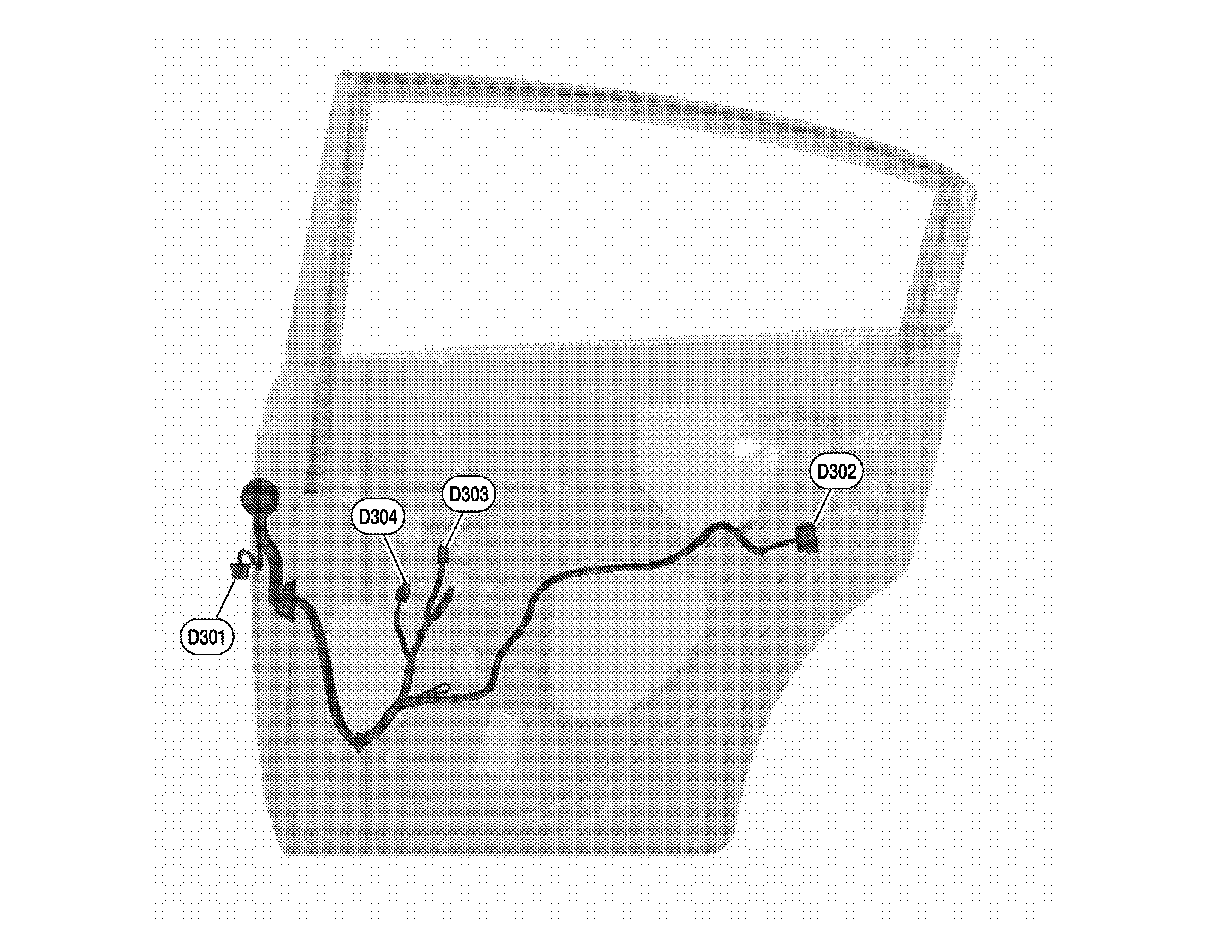

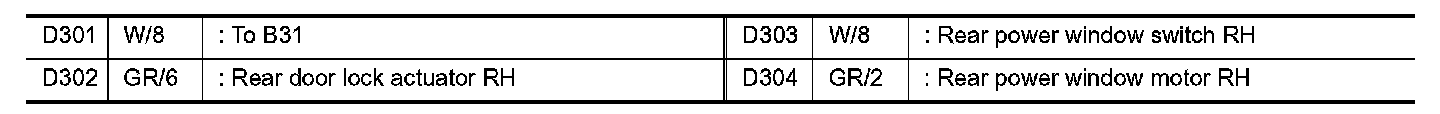

REAR DOOR RH HARNESS
