Removal And Installation




ACCELERATOR CONTROL SYSTEM

Removal and Installation


CAUTION:
- Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sensor from accelerator pedal assembly.
- Avoid impact from dropping etc. during handling.
- Be careful to keep accelerator pedal assembly away from water.

REMOVAL

1.Disconnect the negative battery terminal.
2.Disconnect accelerator pedal position sensor harness connector.
3.Remove the accelerator pedal assembly nuts and remove accelerator pedal assembly.

INSTALLATION






Installation is in the reverse order of removal.
- Check the accelerator pedal for smooth operation. There should be no binding or sticking when applying or releasing the accelerator pedal.

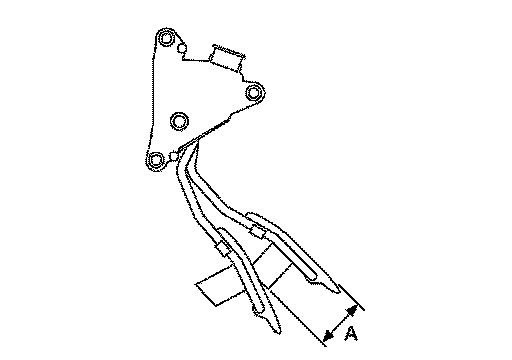

- Check that the accelerator pedal moves through the full specified distance of the specified pedal travel (A).
Pedal Travel (A): [1][2]Accelerator Pedal.

CAUTION:
- When the accelerator pedal position sensor harness connector is disconnected, perform the "Accelerator Pedal Released
Position Learning". (MR-20DE For
California), (MR-20DE Except For California), Accelerator Pedal Released Position Learning (QR-25DE).
