Generic Scan Tool Function




TROUBLE DIAGNOSIS

Generic Scan Tool (GST) Function


DESCRIPTION

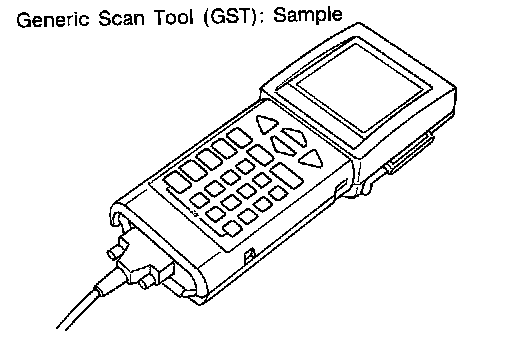

Generic Scan Tool (OBD II scan tool) complying with SAE J1978/
ISO 15031-4 has several functions explained below.
ISO-15765-4 is used as the protocol.
The name GST or Generic Scan Tool is used in this service manual.

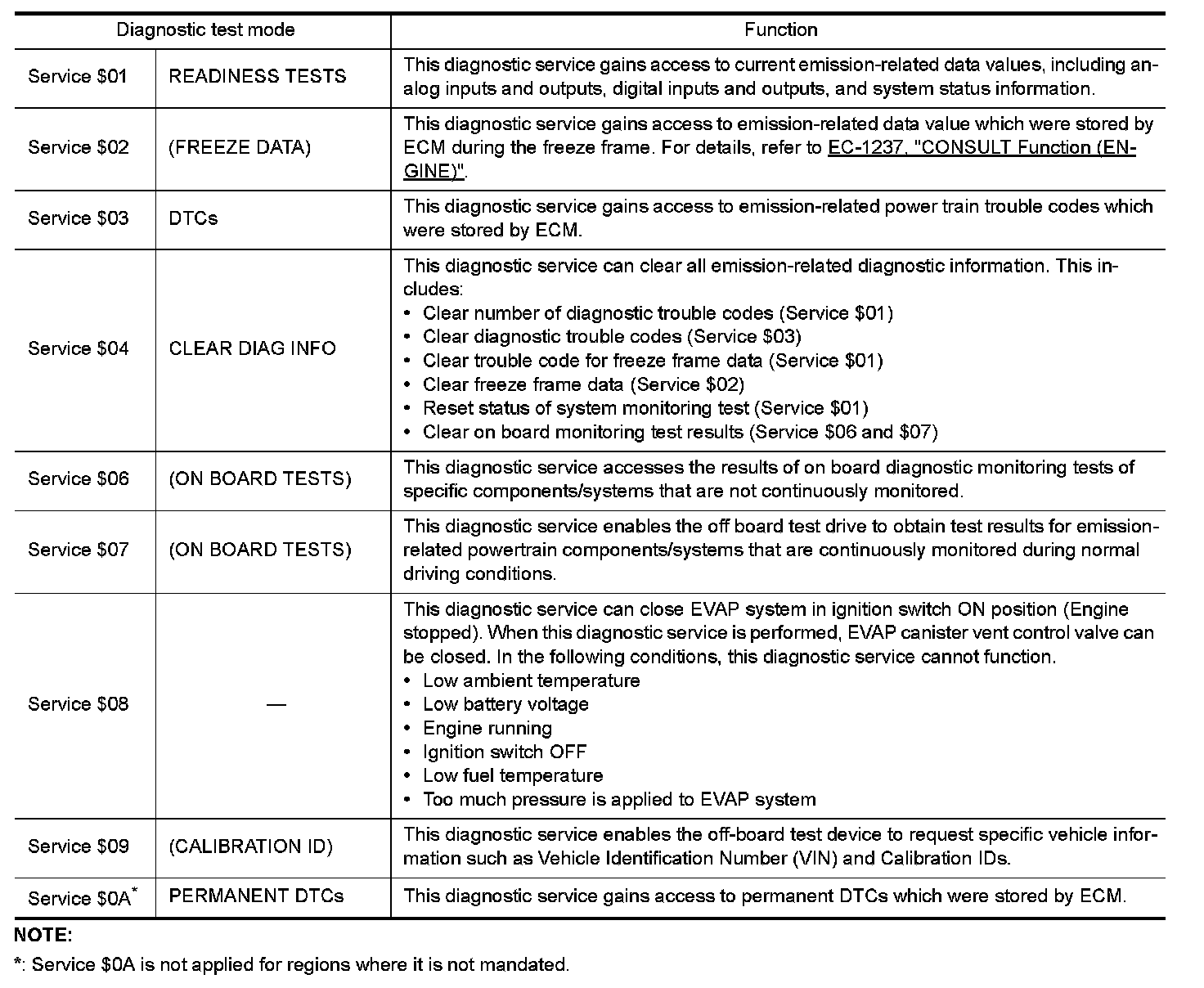

FUNCTION







INSPECTION PROCEDURE

1.Turn ignition switch OFF.

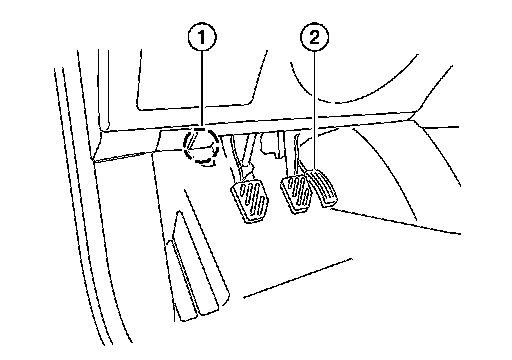

2.Connect GST to data link connector (1).
- Accelerator pedal (2)





3.Turn ignition switch ON.

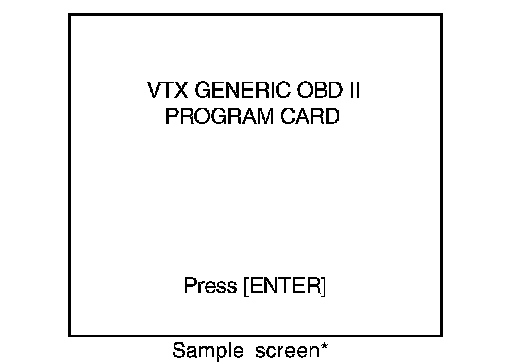

4.Enter the program according to instruction on the screen or in the operation manual.

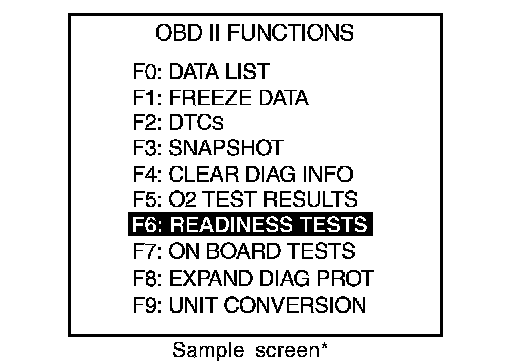

(*: Regarding GST screens in this section, sample screens are shown.)





5.Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.
