Spark Plug: Service and Repair

SPARK PLUG

Removal and Installation












REMOVAL

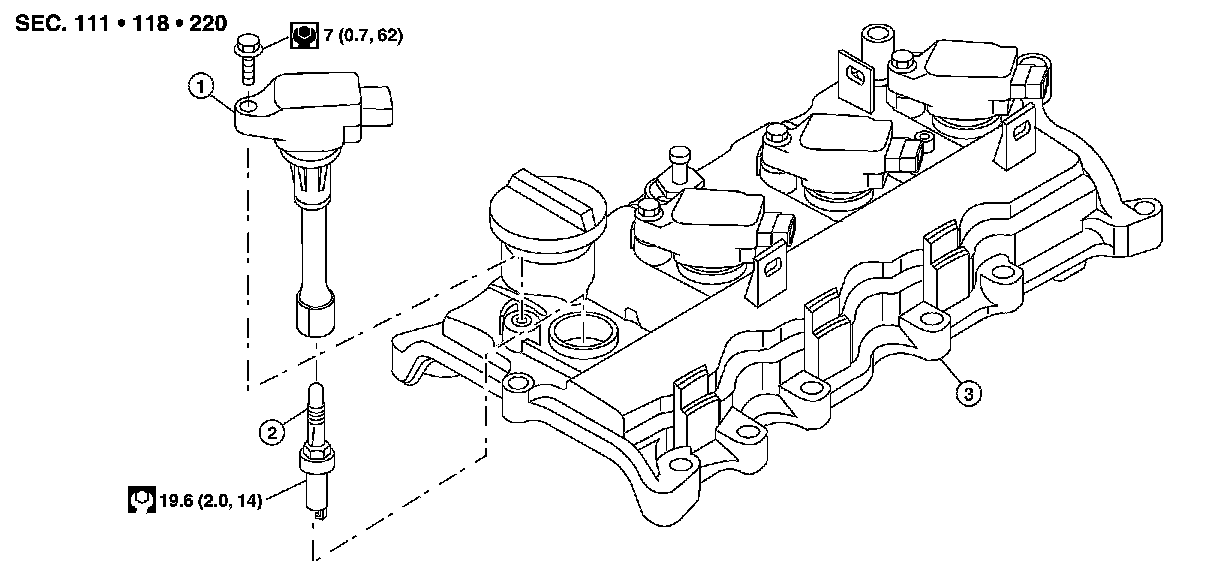

1.Remove the ignition coil. Service and Repair.

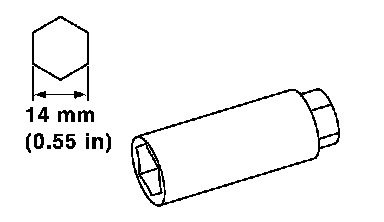

2.Remove the spark plug with a suitable spark plug wrench.






INSPECTION AFTER REMOVAL

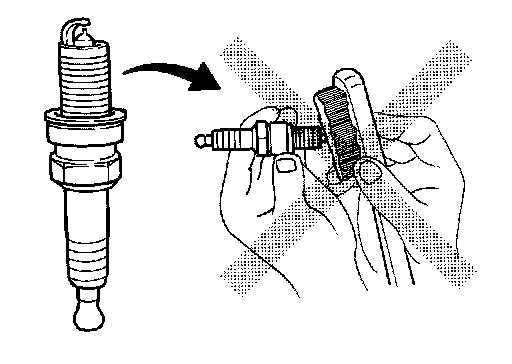

- Do not use a wire brush for cleaning the spark plugs. Replace as necessary.

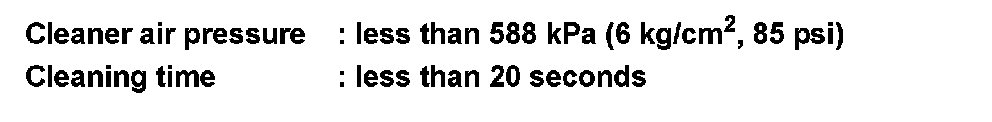

- If plug is covered with carbon, a spark plug cleaner may be used.

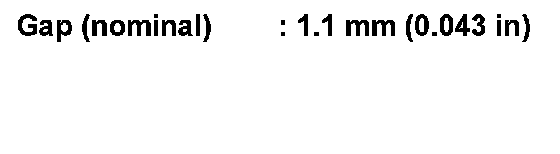

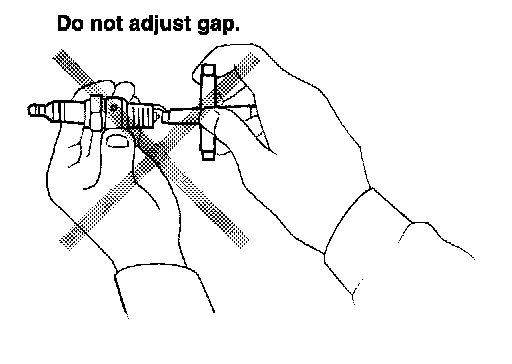

- Checking and adjusting plug gap is not required between change intervals. If the gap is out of specification, replace the spark plug.






INSTALLATION

Installation is in the reverse order of removal.

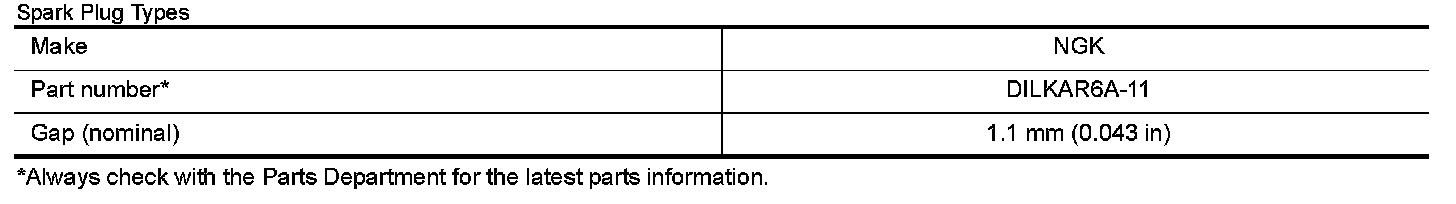

Spark Plug Types
