Control Module HVAC: Service and Repair

CONTROL UNIT

Removal and Installation

FRONT AIR CONTROL

Removal
1.Release the CVT or M/T finisher, disconnect necessary connectors and remove finisher. Component Parts.
2.Release the clips using a suitable tool, disconnect harness, then remove the controller finisher.

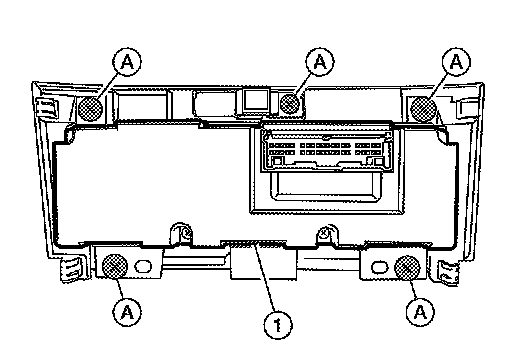

3.Remove the five screws (A) and remove the front air control (1)
from control finisher.
Installation
Installation is in the reverse order of removal.
