Intake Manifold

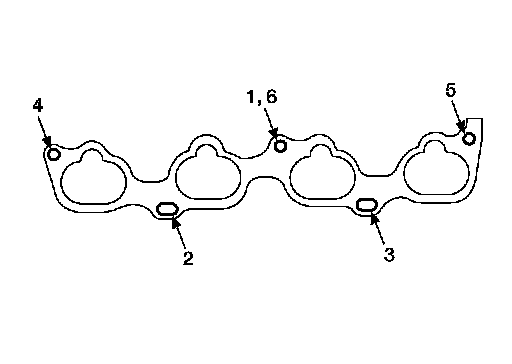

SERVICE DATA AND SPECIFICATIONS (SDS)INTAKE MANIFOLD AND EXHAUST MANIFOLDTighten the
intake manifold bolts and nuts in the numerical order as shown.
Intake manifold 19.6 Nm (2.0 kg-m, 14 ft-lb)
Intake manifold support (front)
19.6 Nm (2.0 kg-m, 14 ft-lb)
Intake manifold support (rear)
19.6 Nm (2.0 kg-m, 14 ft-lb)
