Timing Cover









Front cover with the following procedure:

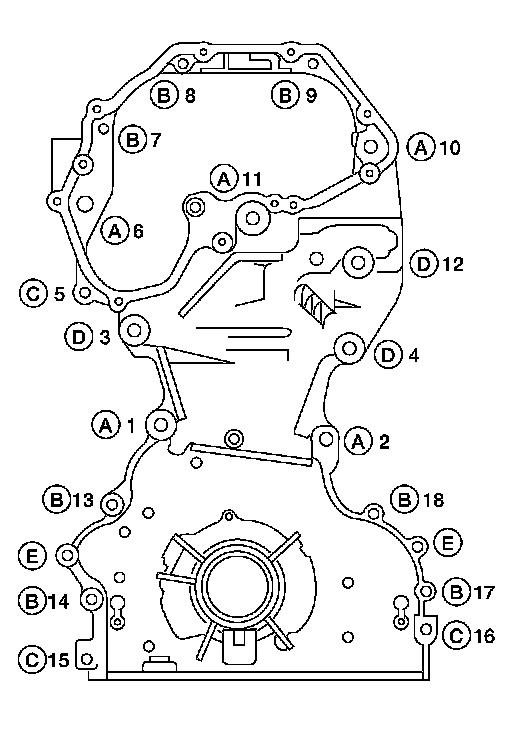

Tighten front cover bolts in the numerical order as shown.

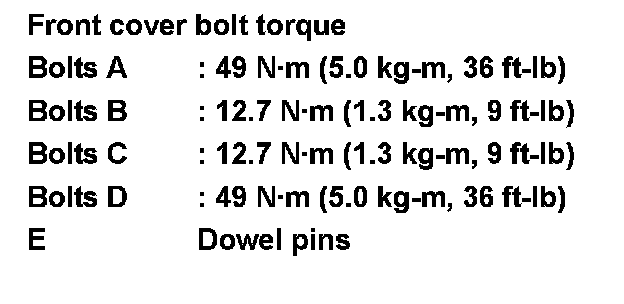

After all bolts are tightened, retighten them to the specified torque.
