Alignment




Wheel Alignment Specifications (Unladen*1)

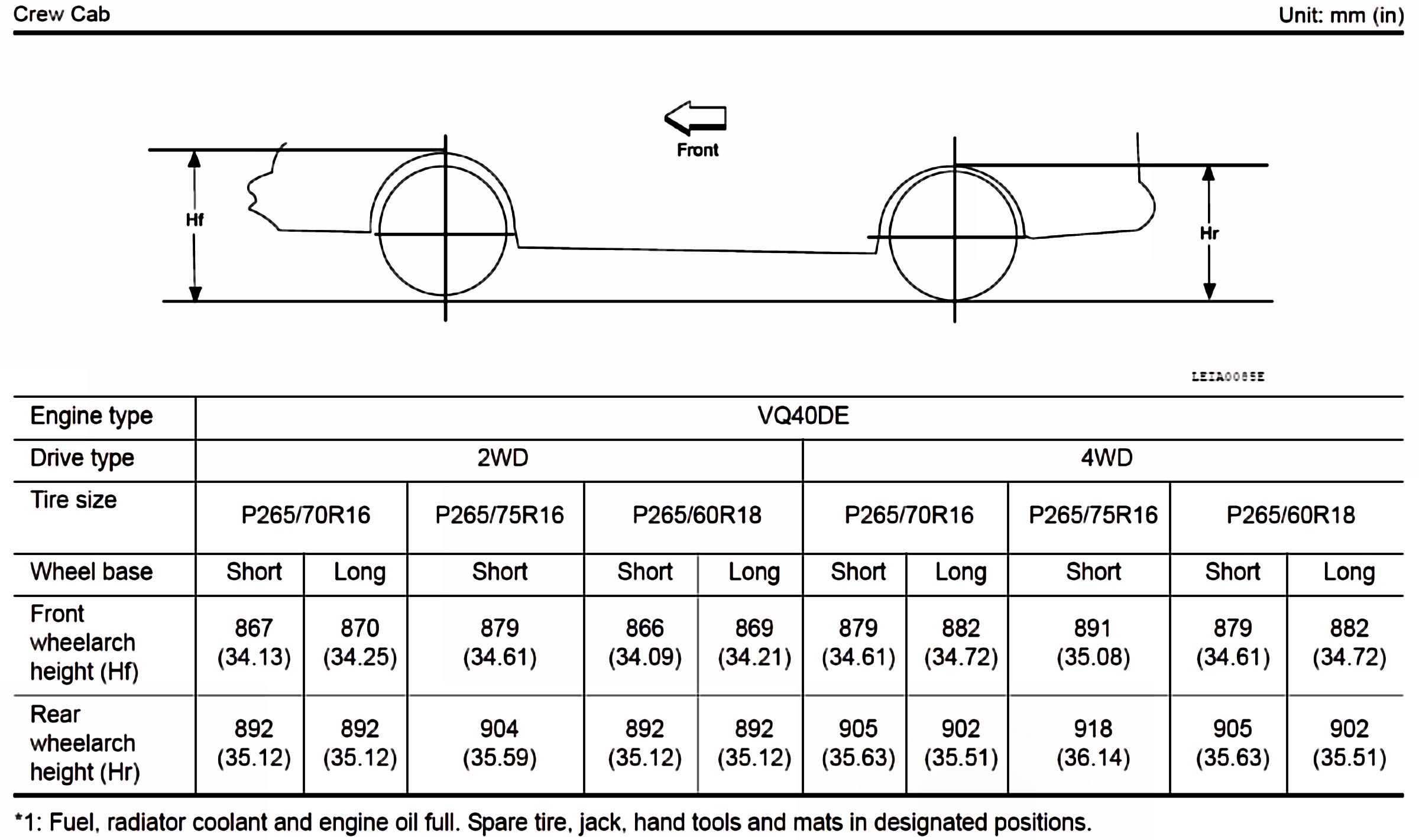

Part 1 Of 5:

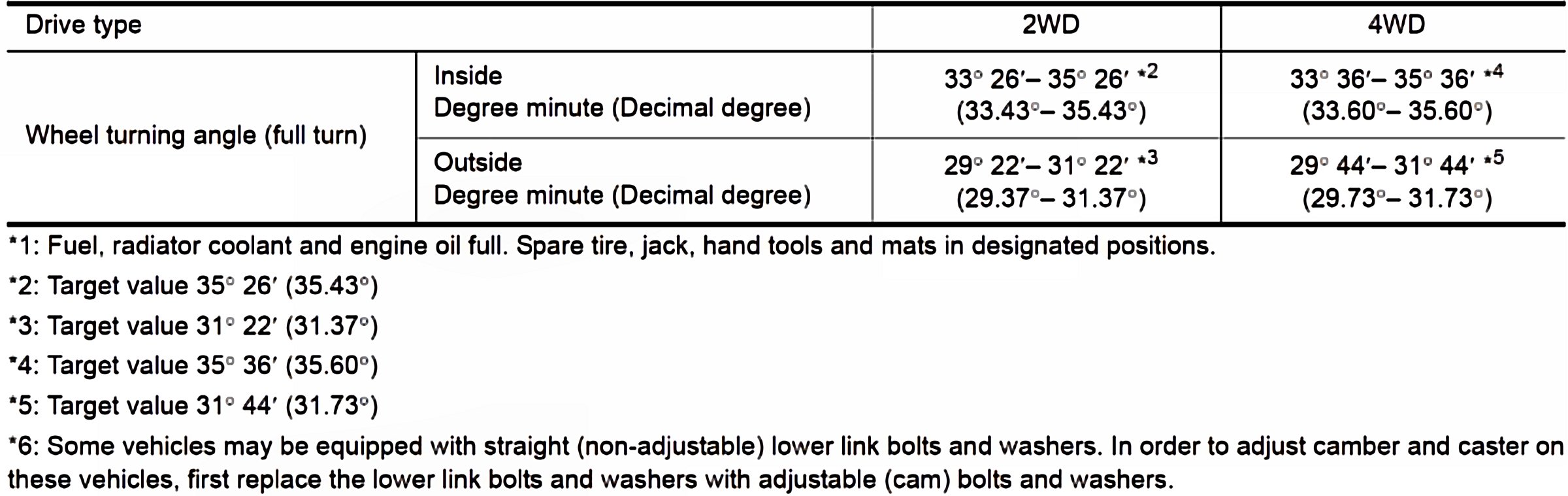

Part 2 Of 5:

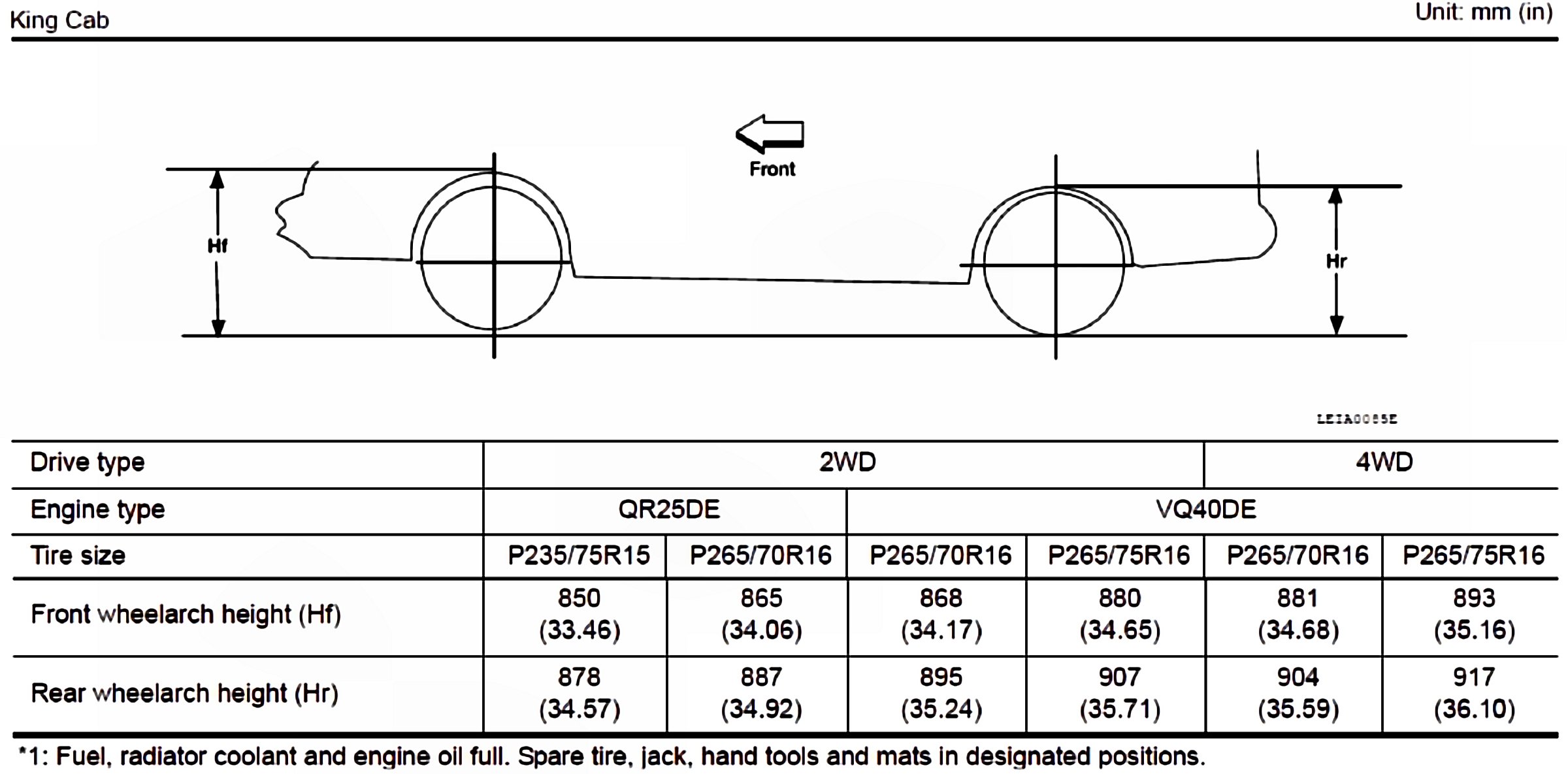

Part 3 Of 5:

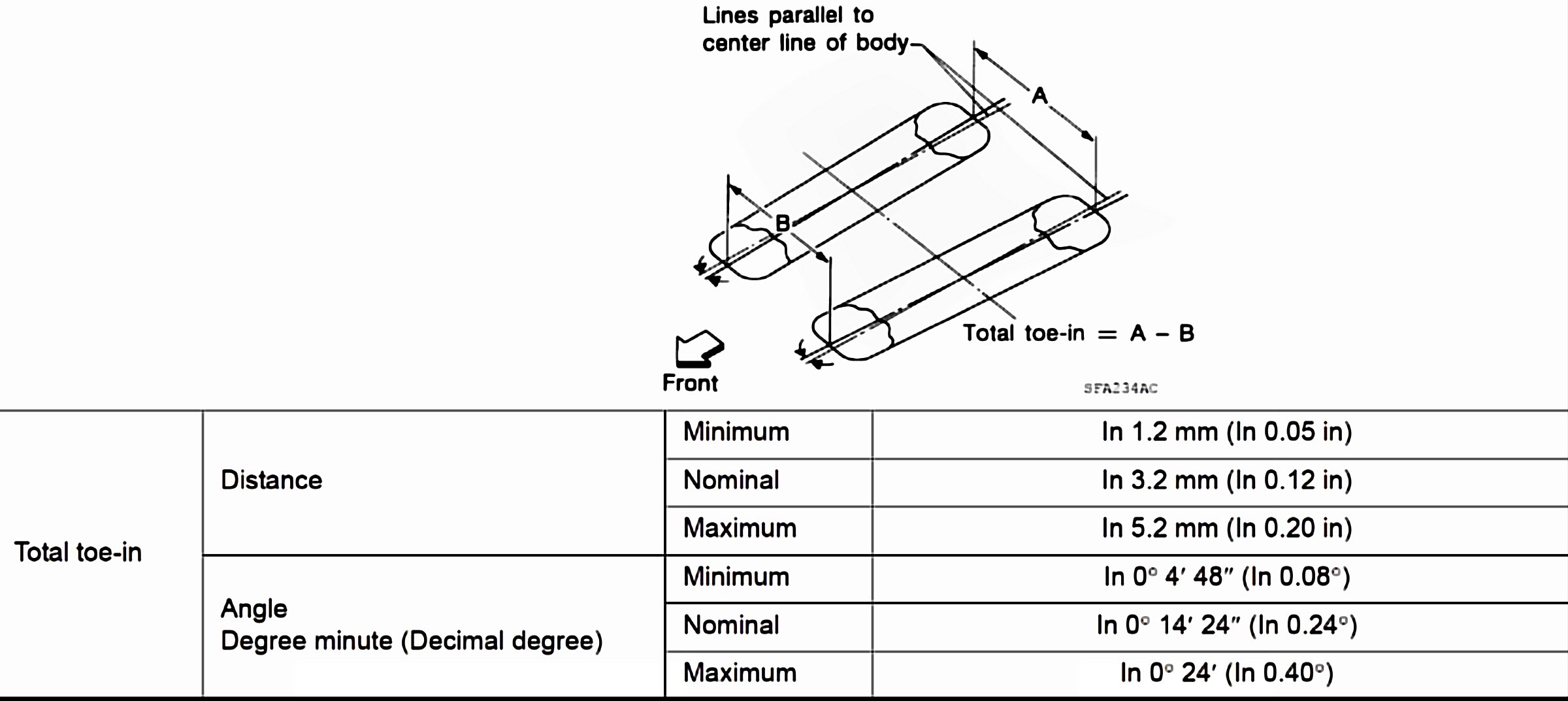

Part 4 Of 5:





Part 5 Of 5:
