Removal And Installation

A/C CONTROL

Removal and Installation


REMOVAL

1.Remove cluster lid D. Refer to "Exploded View" Exploded View.

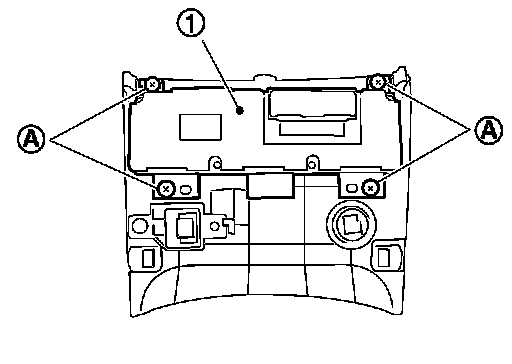

2.Remove mounting screws (A), and then remove A/C control (1).

INSTALLATION

Installation is basically the reverse order of removal.
