Home >> Oldsmobile >> 1982 >> Cutlass Ciera FWD V6-260 4.3L DSL >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

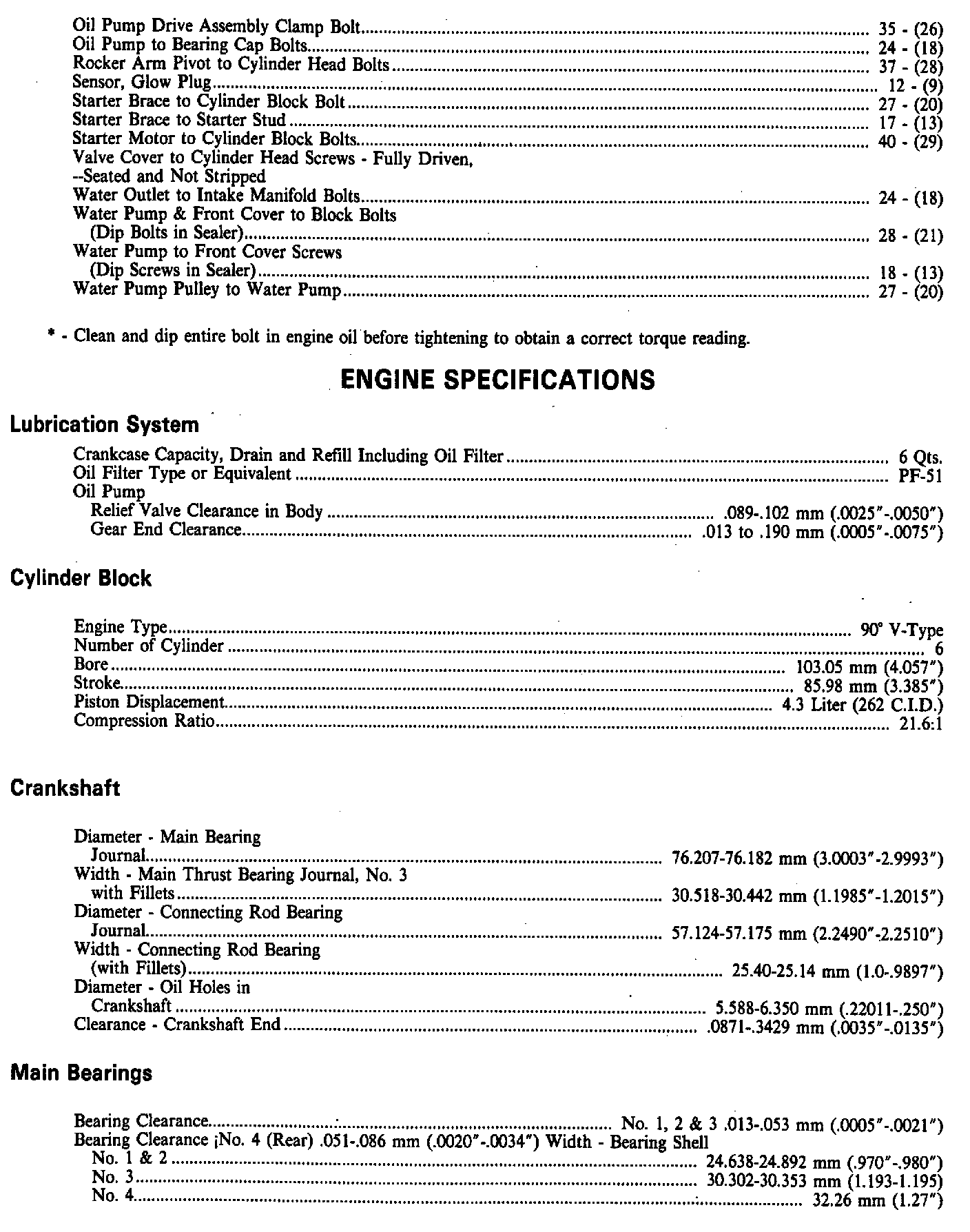

Torque Specifications:

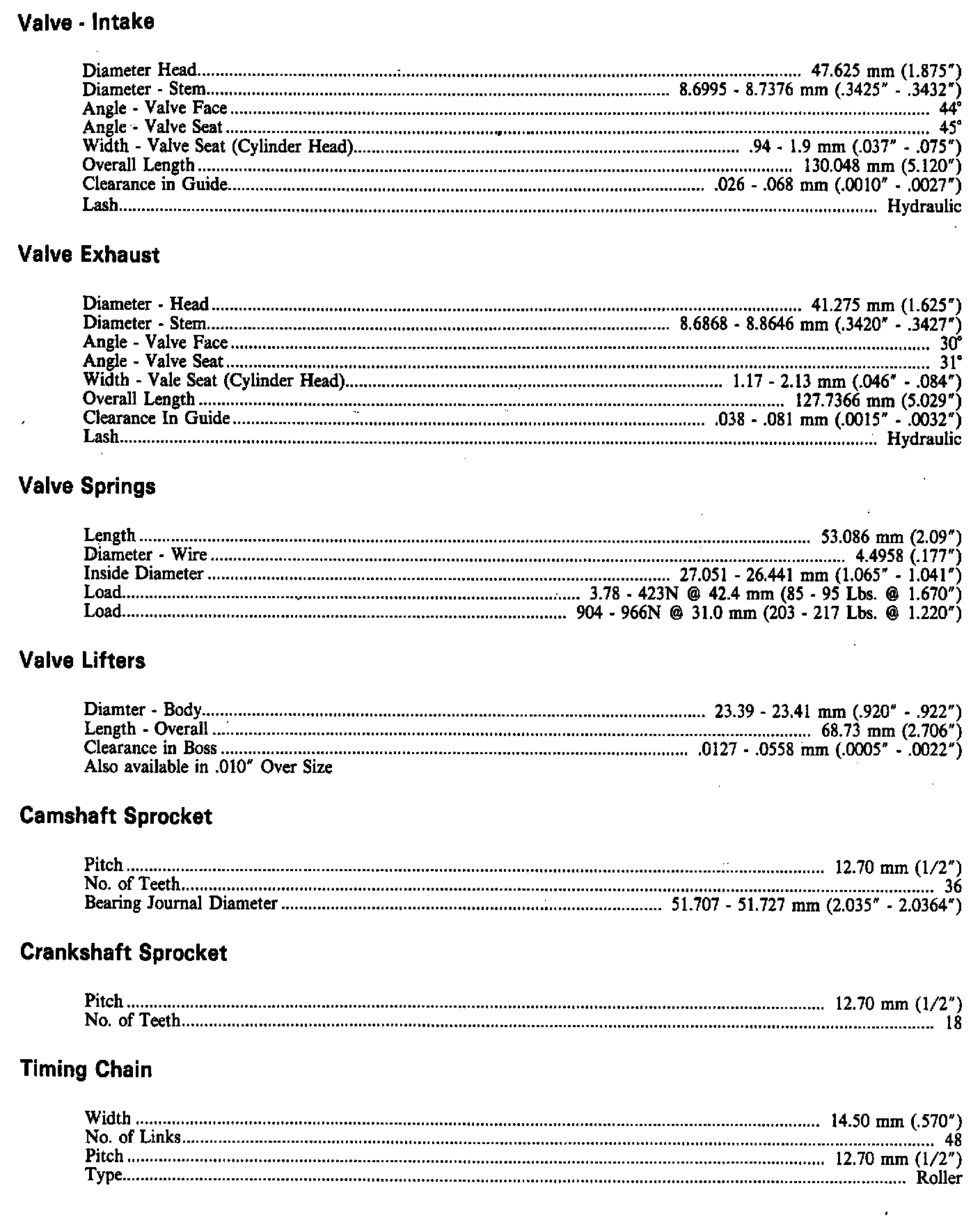

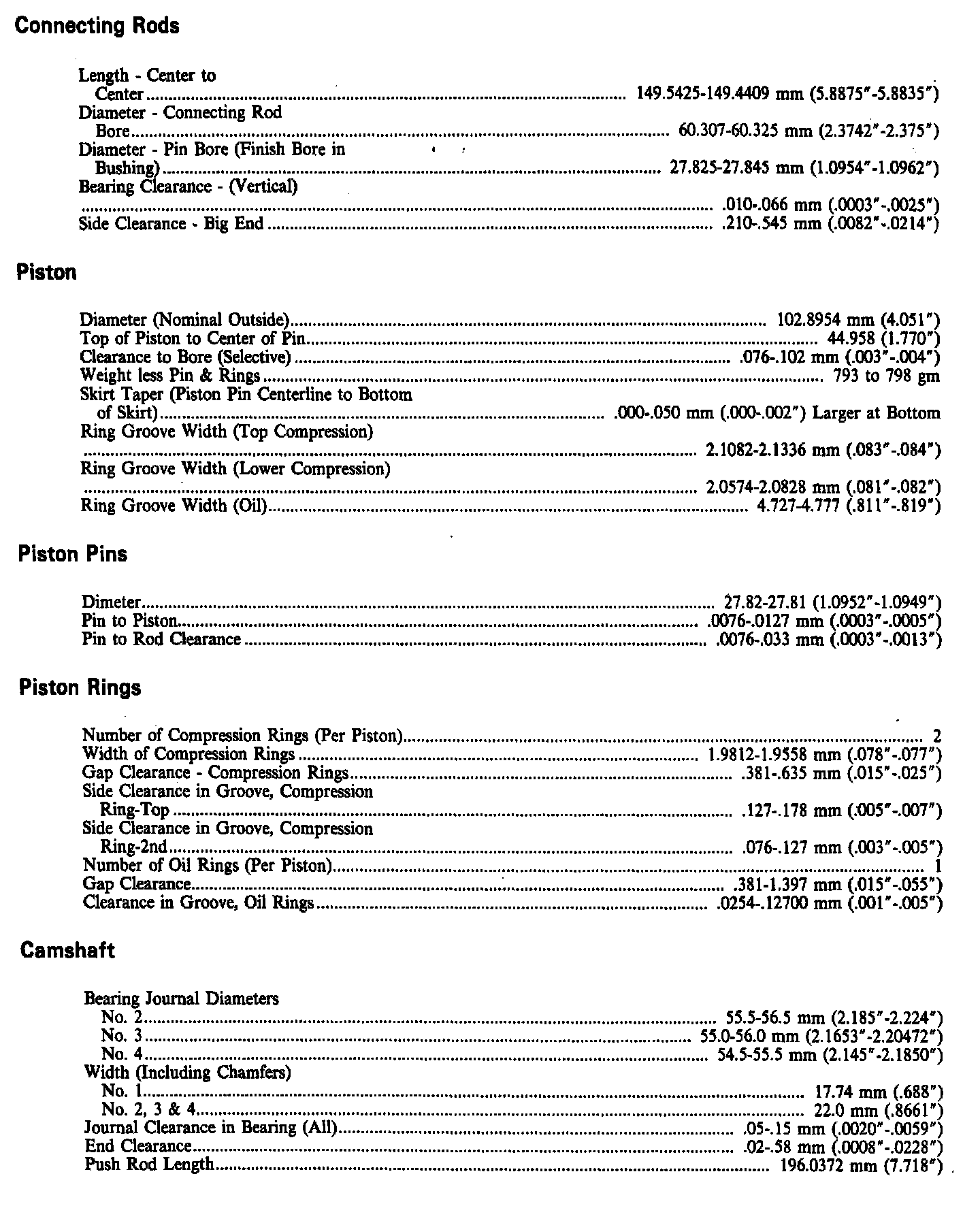

Engine Specifications:





Engine Specifications:





Engine Specifications:

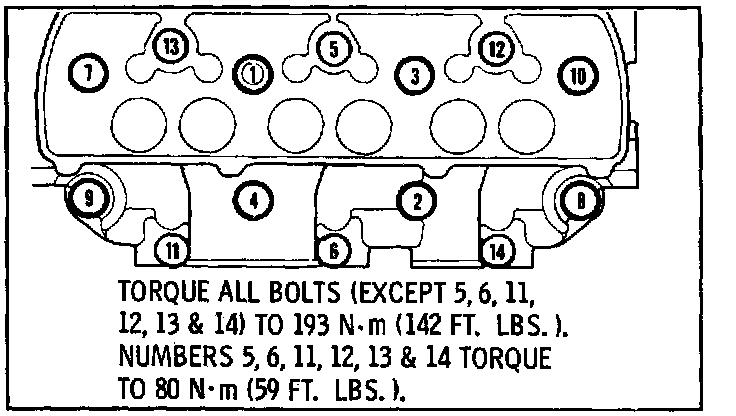

Cylinder Head Torque Sequence:

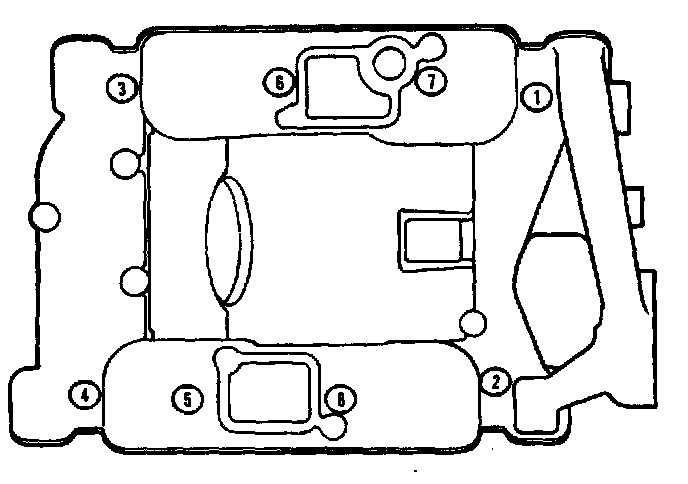

Intake Manifold Torque Sequence:
