Eaton Limited Slip Differential

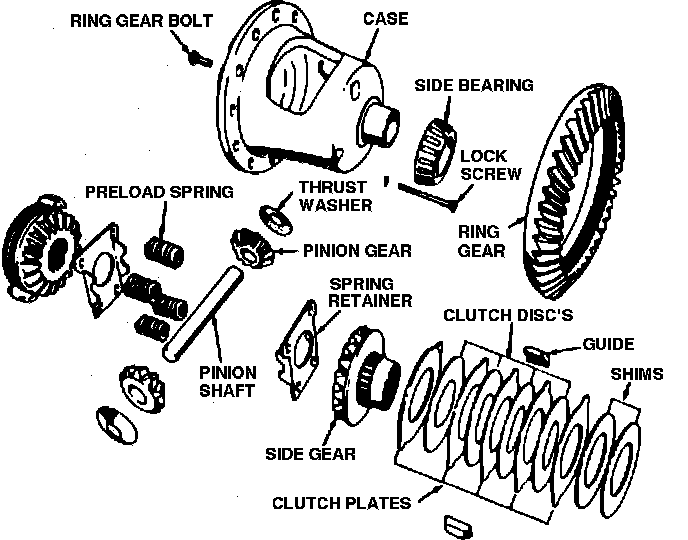

Fig. 16 Exploded view of Eaton limited slip differential:

Fig. 17 Removing clutch pack. Eaton limited slip differential:

For ring gear and side gear removal, refer to Standard Differential.
1. Remove pinion shaft lock screw and pull pinion shaft from case, Fig. 16.
2. Drive preload spring retainer and springs through observation hole in case only far enough to secure a C-clamp then install 1/4 in. nut and bolt through each front spring.
3. Position spring pack in vise and remove 1/4 in. bolts and C-clamp, then loosen vise until all spring tension is relieved.
4. Remove pinion washers, then using an axle shaft rotate case clockwise to remove first pinion gear. Rotate case counterclockwise and remove second pinion gear.
5. Remove a side gear, clutch pack and shims, noting shim location in case to aid in reassembly. Remove side gear clutch pack and shims from opposite side. If side gear or clutch pack cannot be removed readily, drive it out with a brass drift, Fig. 17.
6. Remove clutch plate guides and separate shims and clutch plates from side gears. Keep clutch plates in their original location in clutch pack.
7. If pinion shaft, pinions or side gears are excessively scored, pitted or worn, replace parts affected.
8. Inspect clutch plates for scored, worn, cracked or distorted condition. If any of these conditions exist, new clutch plates must be installed.
9. Alternately position clutch plates and discs on side gear, starting and ending with a plate having external lugs.
10. Install two clutch guides over clutch plate lugs.
11. Install same shims which were removed or an equal amount on clutch plate.
12. Repeat above steps on other clutch pack.
13. Install one side gear with clutch pack and shims in case.
14. Position two pinion gears and thrust washers on side gear and install pinion shaft.
15. Compress clutch pack by inserting a screwdriver or wedge between side gear and pinion shaft.

Fig. 5 Positioning dial indicator (typical):

16. Install a suitable dial indicator with contact button against pinion gear, Fig. 5.
17. Rotate pinion gear. Clearance should be .001 inch to .006 inch.
18. If clearance is more than .006 inch, add shims between clutch pack and case. If clearance is less than .001 inch, remove shims. A .002 inch shim will change clearance about .001 inch. Recheck clearance after adding or subtracting shims.
19. Remove side gear and repeat procedure with remaining clutch pack on opposite side of case.
20. Remove pinion shaft, pinions and thrust washers.
21. Install remaining side gear and clutch pack with correct shims in case.
22. Place pinion gears on side gears and rotate into correct position.
23. Compress preload springs and drive preload retainer and springs between side gears.
24. Insert thrust washers behind pinion gears.
25. Install pinion shaft and retain with lock bolt, tightening lock bolt to 20 ft. lbs.
