Choke Rod Adjustment

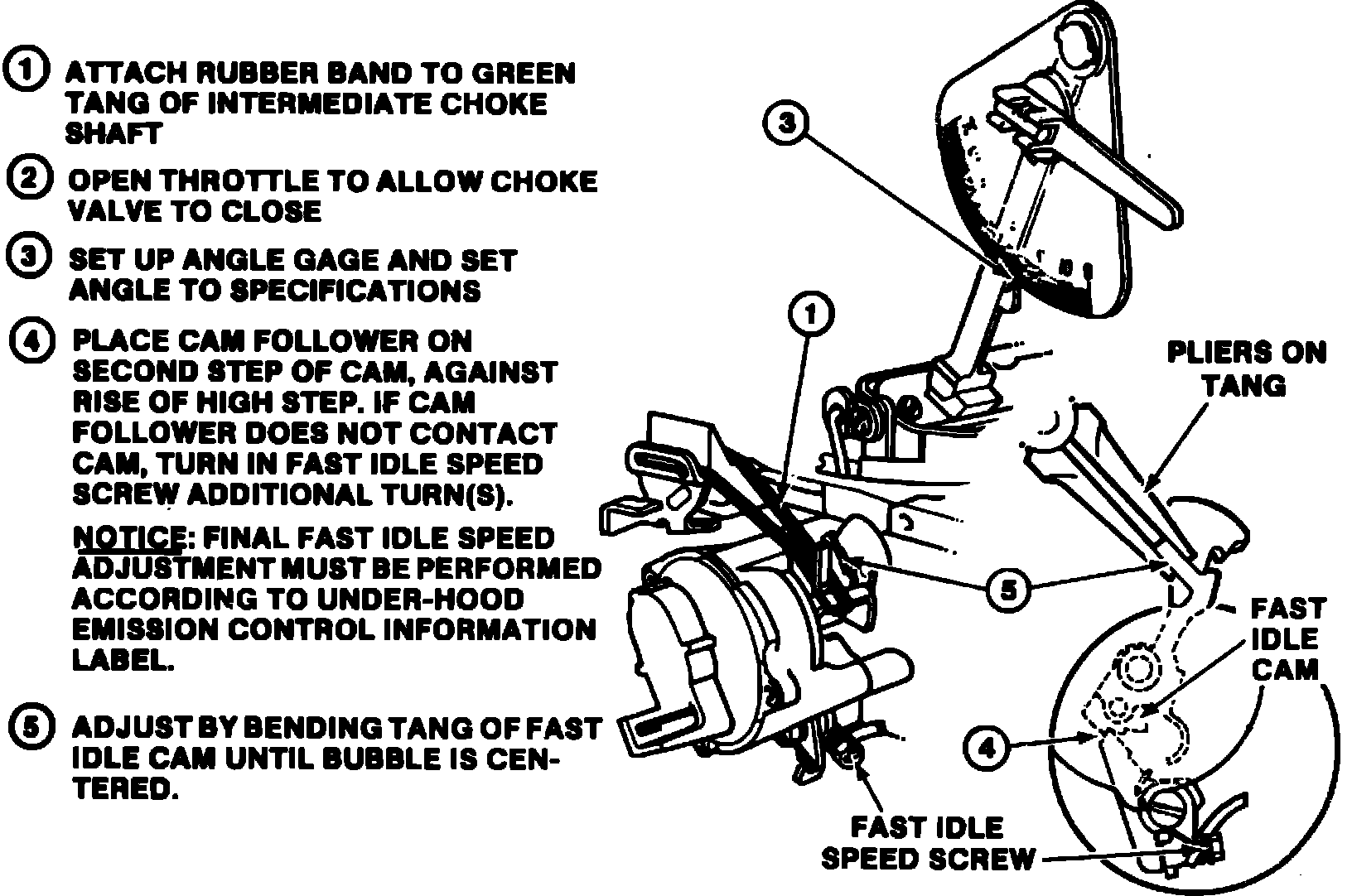

Fig. 7 Choke valve angle gauge installation:

Fig. 8 Choke rod adjustment:

Install choke valve angle gauge tool No. J-26701 or BT-7704 as shown in Fig 7. With gauge installed, adjust choke rod as outlined in Fig 8. Adjust as directed to dimension listed under Specifications, Adjustment Specifications.
