Steering Column: Description and Operation

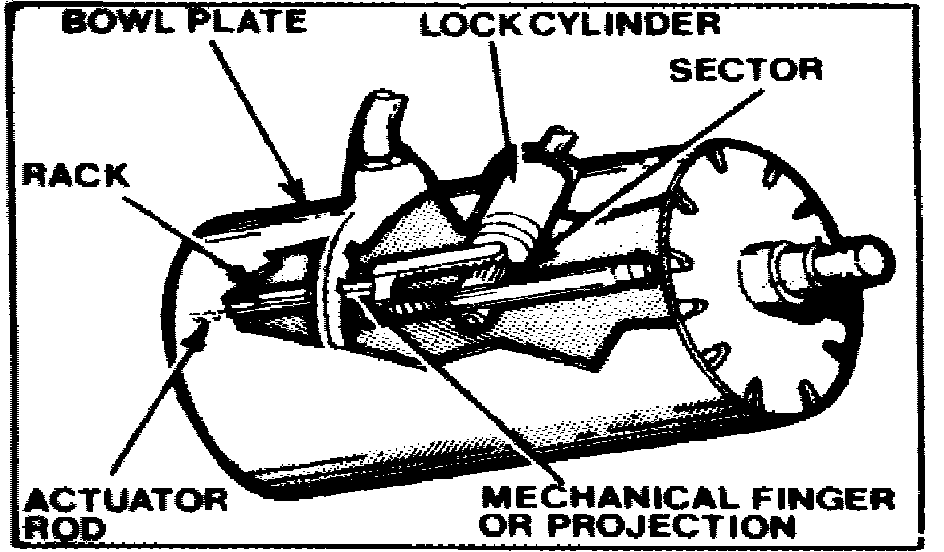

Fig. 6 Mechanical neutral start system w/standard column:

Fig. 7 Mechanical neutral start system w/tilt column:

Fig. 8 Mechanical neutral start system in Park position:

Actuation of the ignition switch is prevented by a mechanical lockout system, Figs. 6 and 7, which prevents the lock cylinder from rotating when the selector lever is out of Park or Neutral. When the selector lever is in Park or Neutral, the slots in the bowl plate and the finger on the actuator rod align allowing the finger to pass through the bowl plate in turn actuating the ignition switch, Fig. 8. If the selector lever is in any position other than Park or Neutral, the finger contacts the bowl plate when the lock cylinder is rotated, thereby preventing full travel of the lock cylinder.
