Camshaft: Service and Repair

Removal

If engine is in the car, the radiator, grille and A/C components will have to be removed. If engine is out of car, proceed as follows:

1. To remove camshaft, remove intake manifold, rocker arm/shaft assemblies, pushrods and valve lifters.

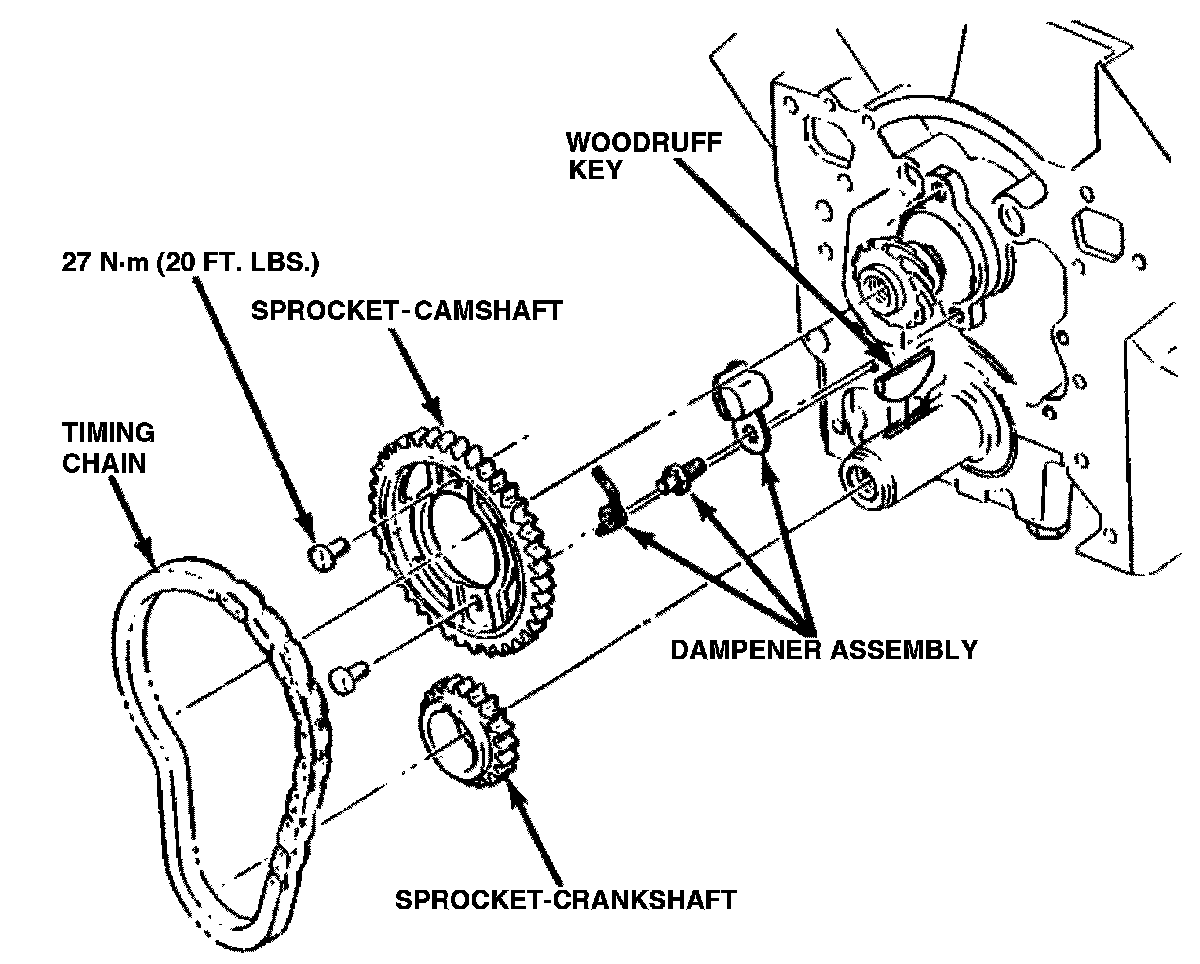

2. Remove timing chain and sprockets.

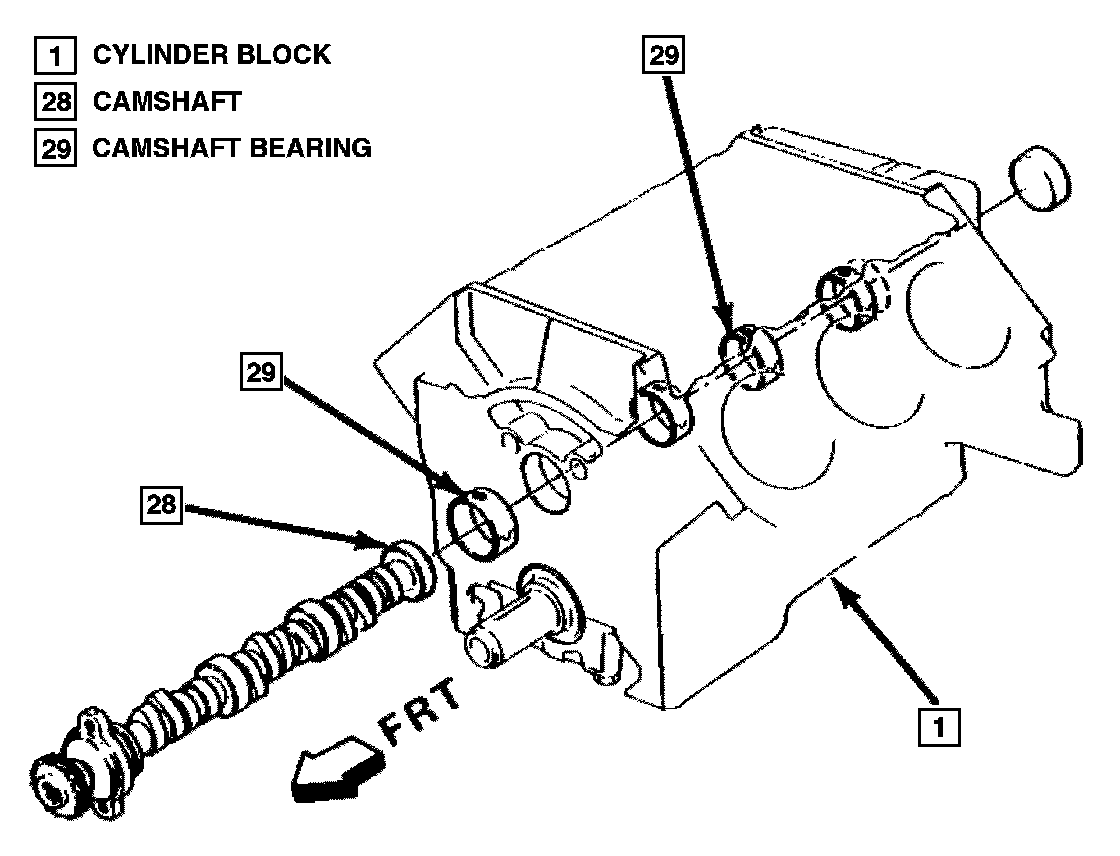

3. Slide camshaft out of engine, using care not to mar the bearing surfaces.

Installation

1. Reverse procedure to install.
