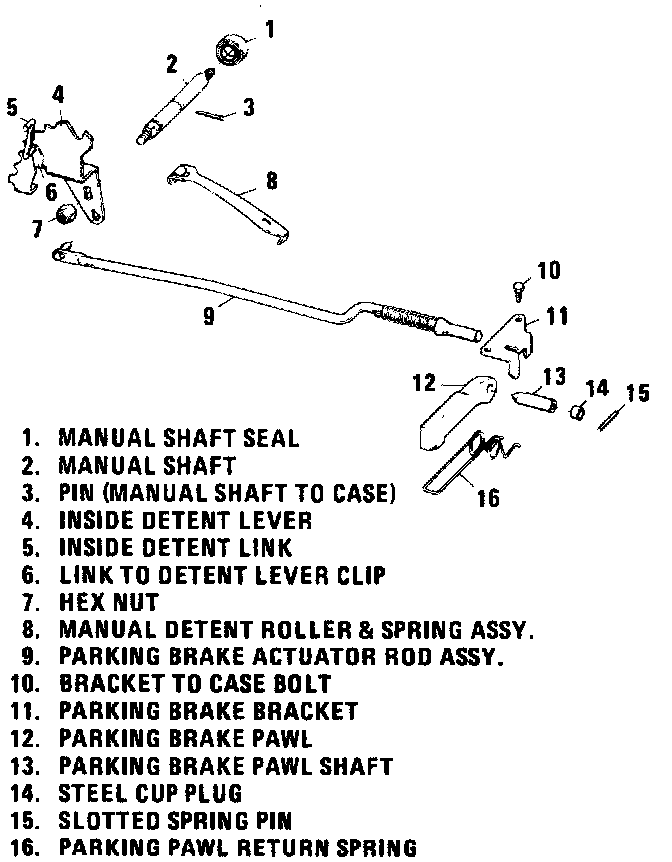

Inner Manual Linkage

1. Check manual shaft and parking pawl components for wear and damage and replace any defective component as required.

2. Position transmission horizontally with oil pan side up.

3. Install manual shaft seal with seal lip facing inward into transmission case.

4. Install parking pawl and return spring with tooth toward inside of transmission case and parking pawl return spring under pawl tooth with spring ends toward inside of transmission case.

5. Align parking pawl and return spring with transmission case shaft bore.

6. Install tapered end of parking pawl shaft into transmission case.

7. Install parking pawl shaft cup plug and retaining pin.

8. Position parking pawl toward center of transmission and install parking lock bracket Torque bracket bolts to 18 ft lbs. (24 Nm).

9. Install parking actuator rod into detent lever, positioning detent lever between actuator rod tangs.

10. Install parking actuator rod and inside detent lever with detent lever pin toward center of transmission and actuator plunger between parking pawl and parking lock bracket.

11. Install manual shaft with small identification ring groove first into transmission case.

2. Align inside detent lever with flats on manual shaft and install inside detent lever onto manual shaft.

13. Install hex nut onto manual shaft and torque nut to 23 ft lbs. (31 Nm).

14. Install transmission case retaining pin onto manual shaft.
