Torque Specifications

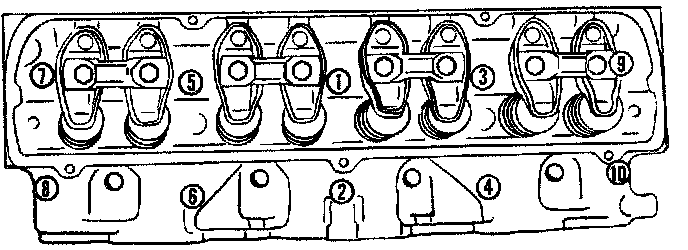

CYLINDER HEAD TORQUE SPECIFICATIONS






First pass 81 N.m. ( 60 lbs. ft. ).
Second pass 169 N.m. ( 125 lbs. ft. ).
