Electronic Spark Timing

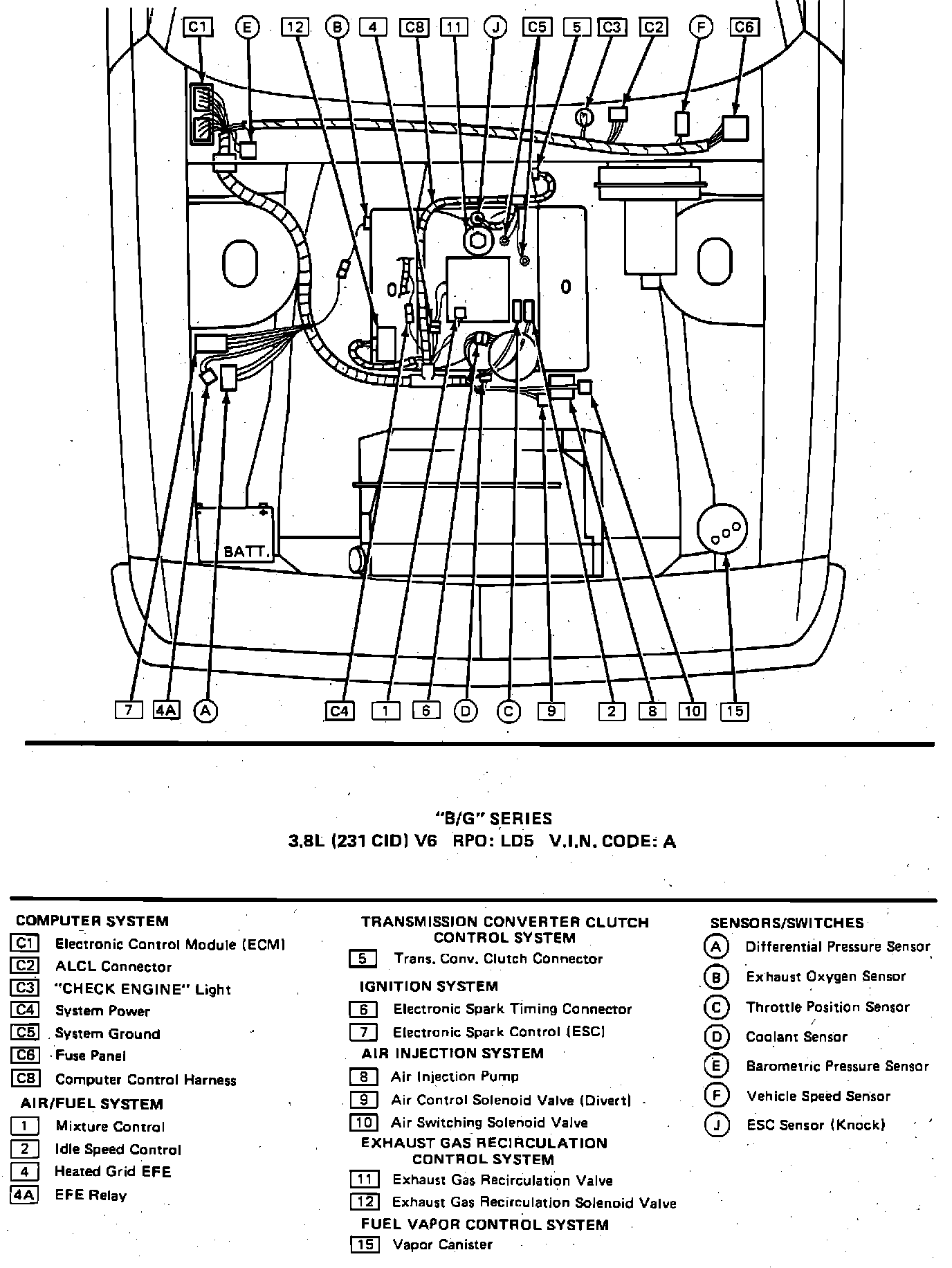

Engine Component Locations.:




Front Of Engine

Applicable to: V6-231/3.8L Engine
