A/T - Service Replacement Model Update
90oldsmobile11SUBJECT SERVICE REPLACEMENT TRANSMISSION ASSEMBLY (SRTA)
MODEL UPDATE
ALL 1982-91 MODELS EQUIPPED WITH HYDRA-MATIC 3T40 (THM
MODELS/YEARS 125C) TRANSAXLES (RPO - MD9)
NUMBER: 91-I-02
CORP.REF.NO: 077105R
DATE: August 1990
SECTION: 7
THIS BULLETIN REPLACES DEALER INFORMATION BULLETIN 90-I-26 WHICH HAS BEEN REVISED TO CHANGE INFORMATION UNDER "SERVICE PARTS INFORMATION" AND TO ADD 1991 SRTA MODEL APPLICATIONS.
BULLETIN COVERS:
The start of the HYDRA-MATIC 3T40 (THM 125C) SRTA model replacement program. See "SERVICE PARTS INFORMATION" for a complete list of the 1982 through 1991 HYDRA-MATIC 3T40 (THM 125C) models offered by Hydra-matic.
SRTA ADVANTAGES:
- A SRTA is the product of a highly successful, customer satisfaction driven program providing the technician with a service alternative when addressing diagnostic and overhaul concerns.
- All SRTA units are designed and remanufactured to current engineering specifications.
- GMSPO Parts Distribution Centers are committed to 48 hour maximum delivery time for all SRTA models, with no VIP charges.
In the interest of customer satisfaction, SRTA models should only be considered when the projected cost of repair exceeds the cost of a SRTA replacement.
SERVICE NOTE:
Cooler flushing MUST be performed whenever a transmission/transaxle is removed for service. It is essential to flush the cooler after SRTA installation, major overhaul, in any case of pump or torque converter replacement, or when fluid contamination is suspected. Time allowance has been added to operation K7000 (Trans. Removal and Replacement) for 1987 through 1991 models. Add 0.6 hours to Removal and Replacement allowances for 1982 through 1986 models.

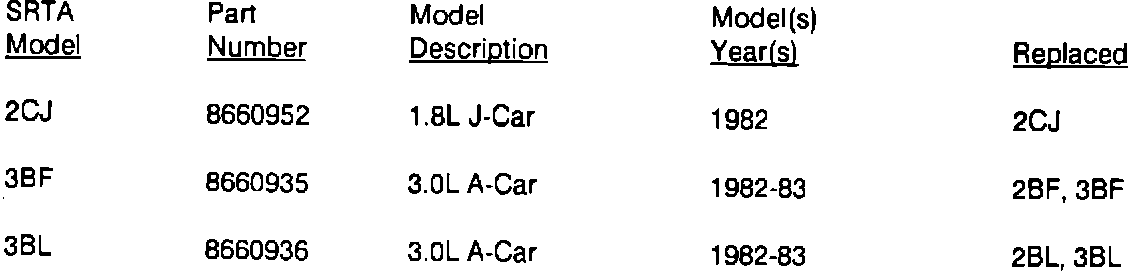

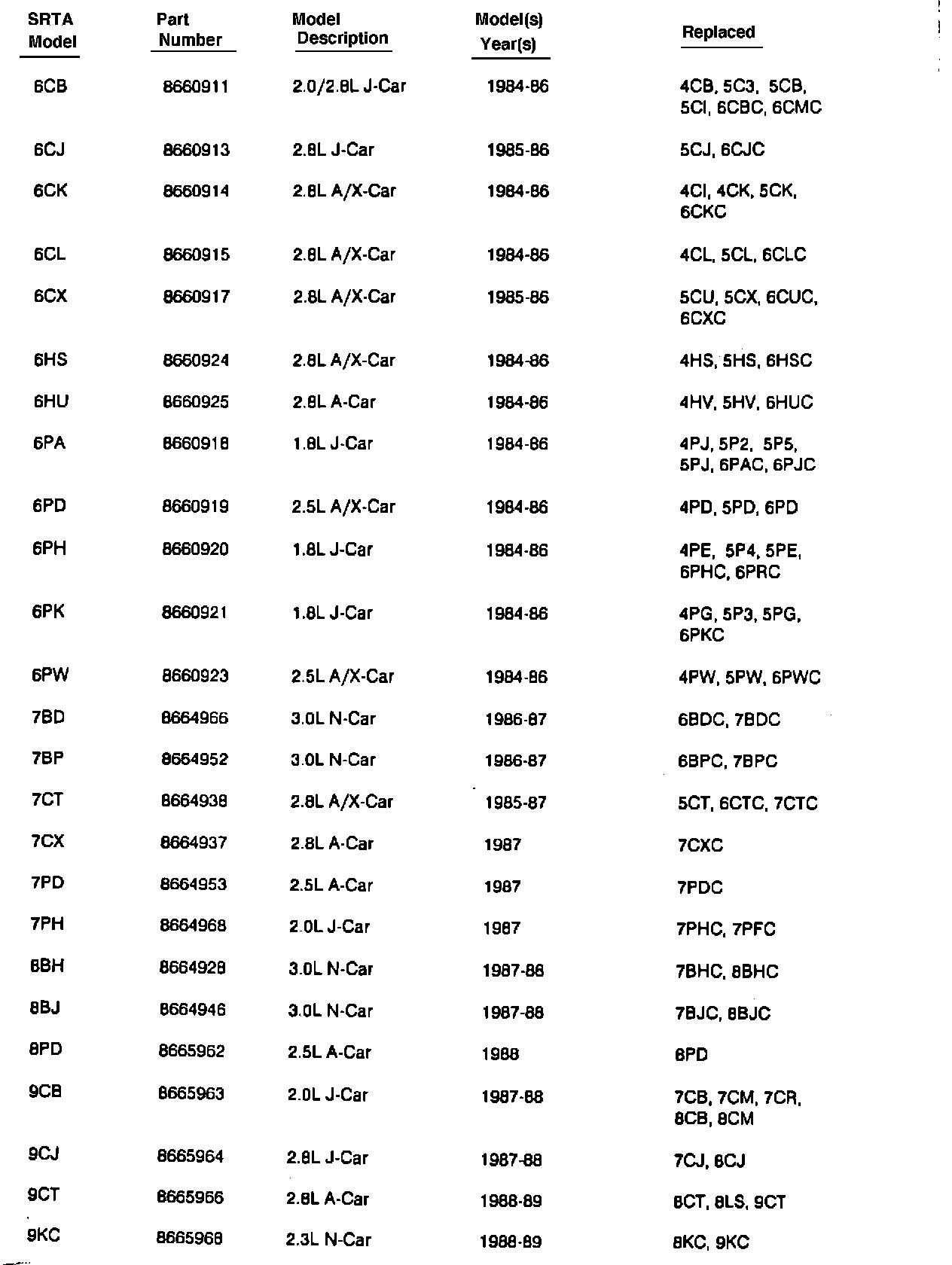

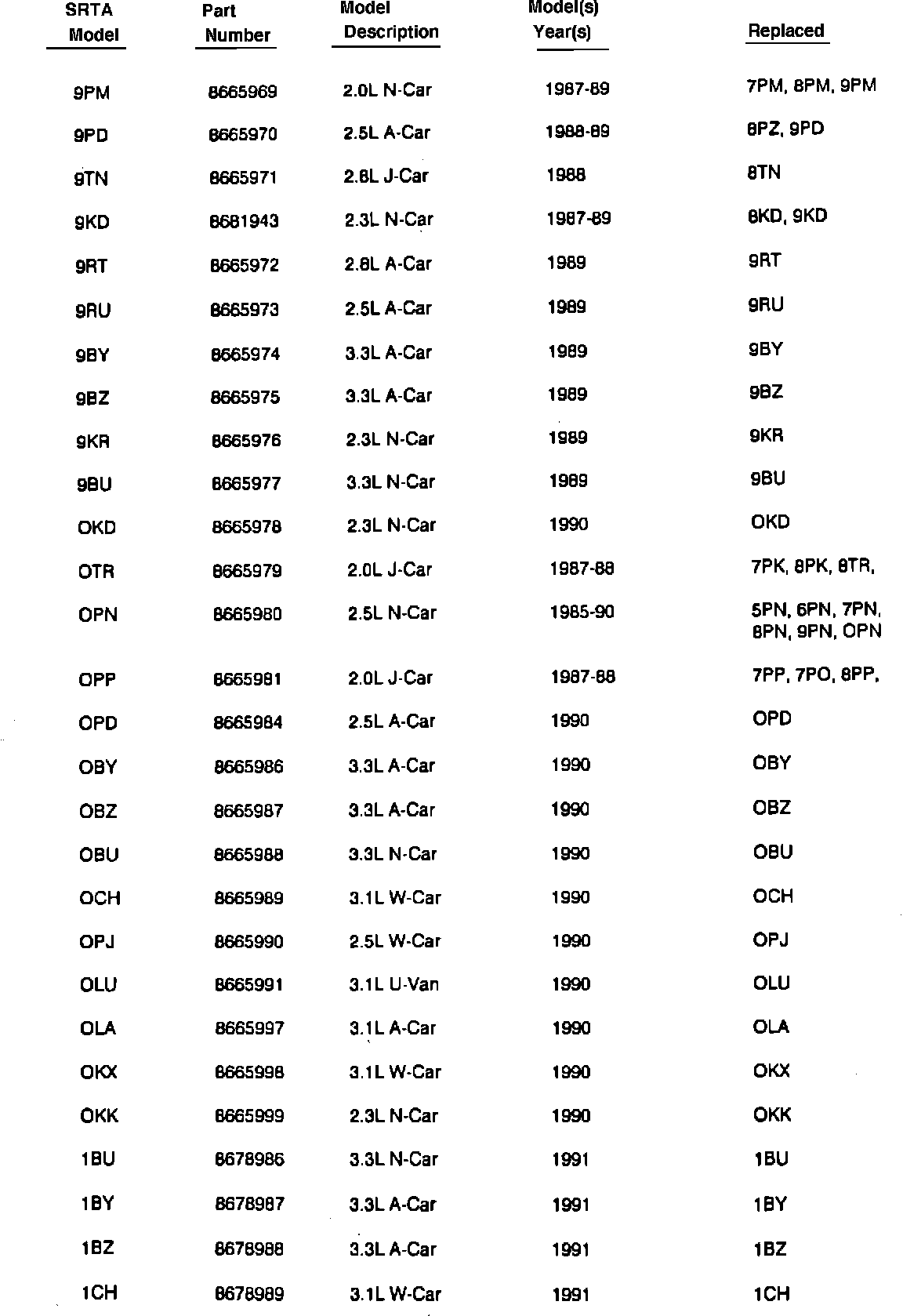

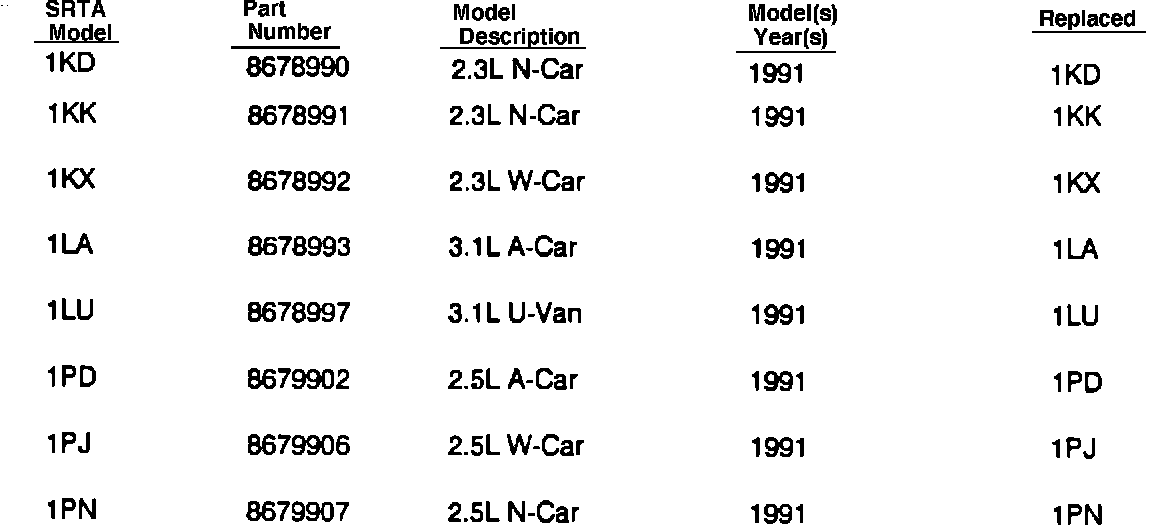

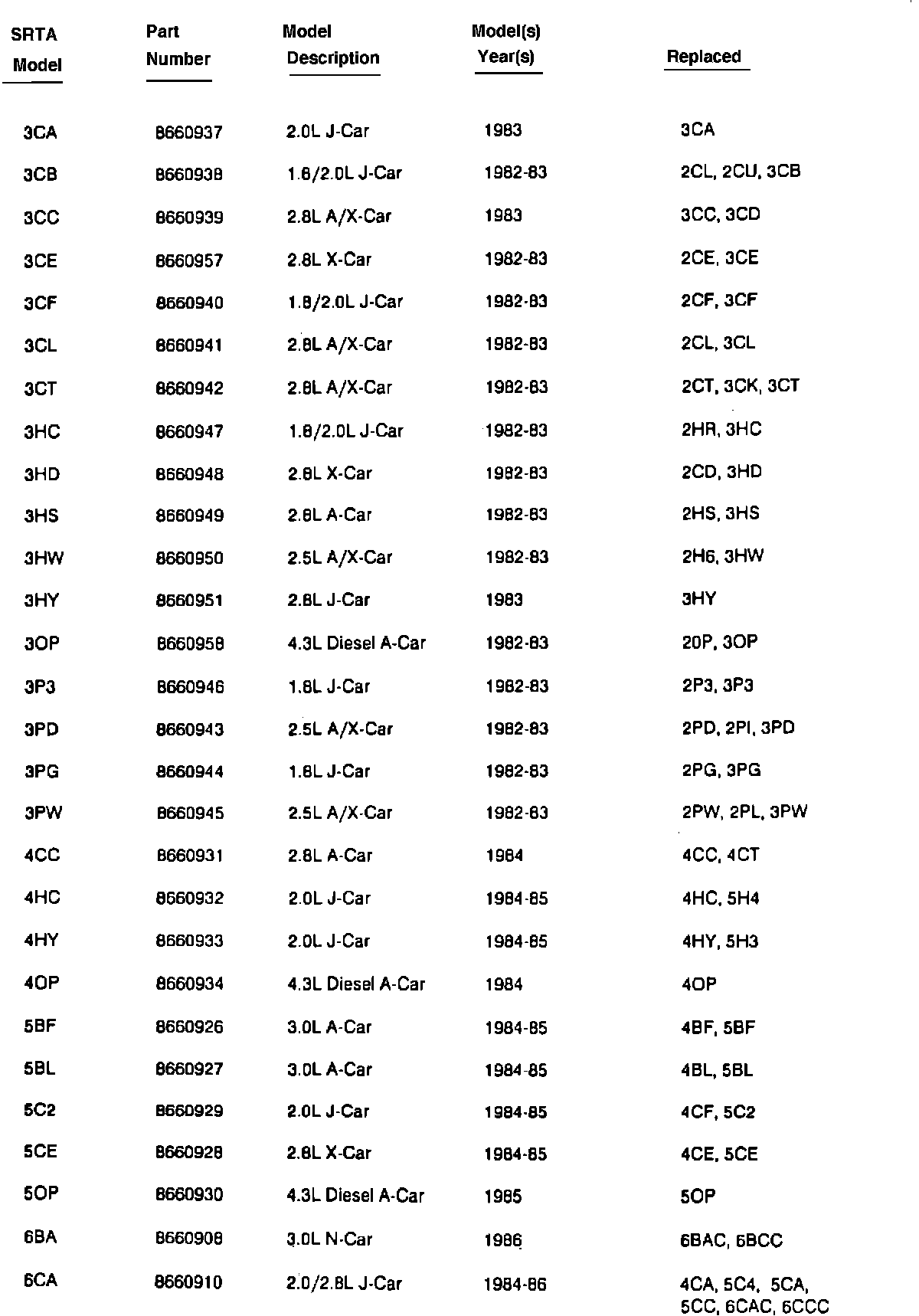

SERVICE PARTS INFORMATION:
Parts are currently available from GMSPO.
NOTE: Part numbers are accurate at time of printing and subject to change.
