A/C & Heater Vacuum Circuit

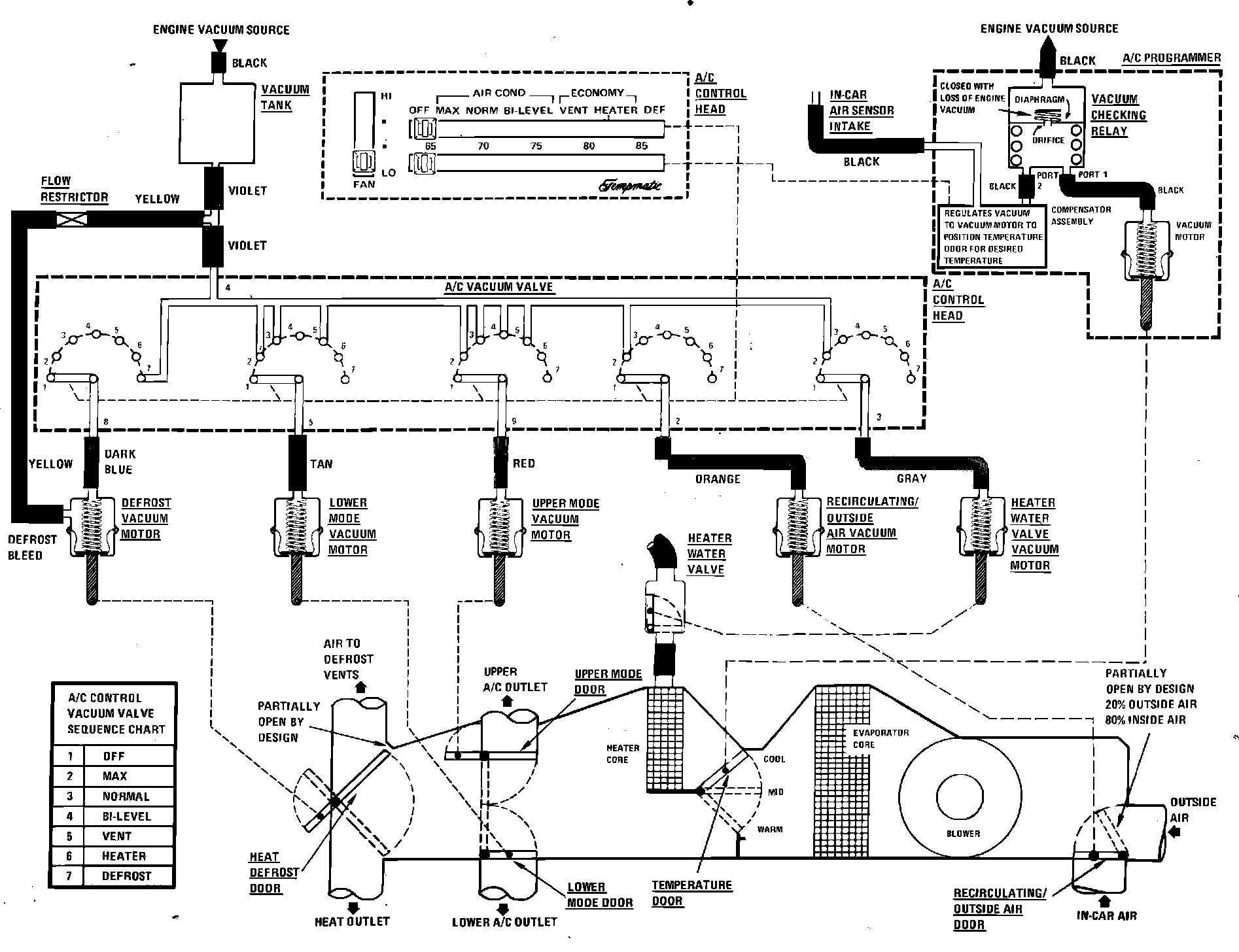

Air Conditioning & Heater Vacuum Circuit (W/Electronic Climate Control):
