Glow Plug Controller

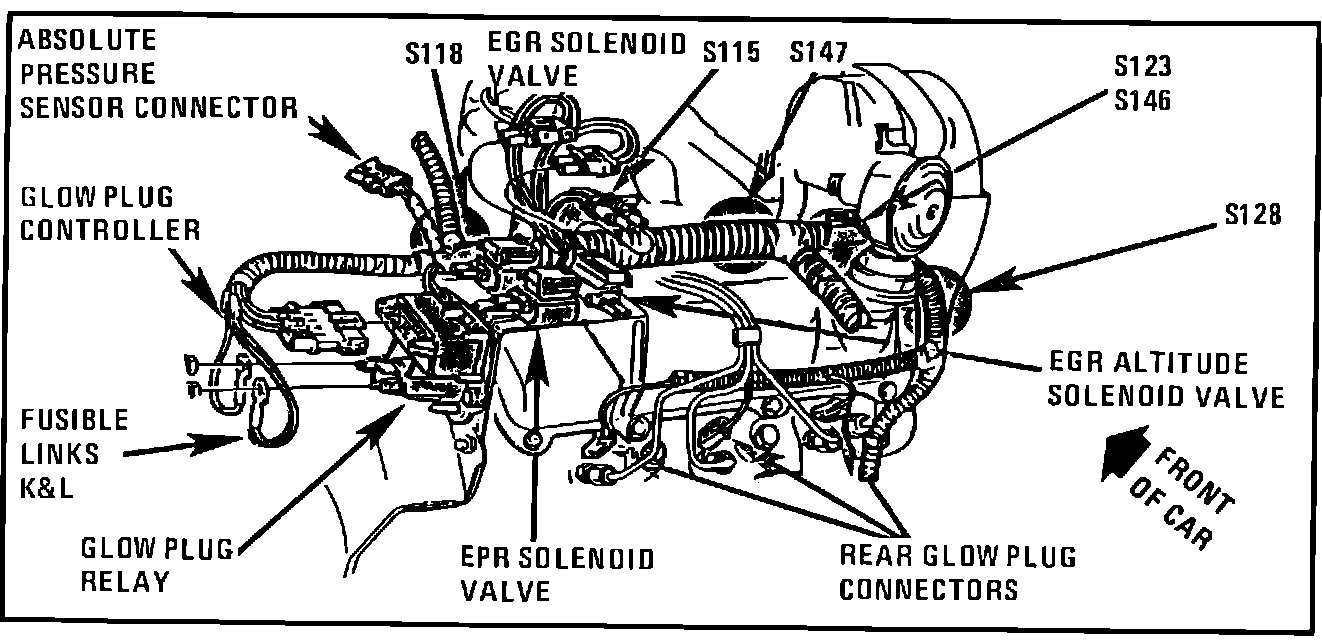

Rear Of V6 Diesel Engine.:




LH Rear Of Engine, On End Of Valve Cover

Applicable to: 98
