Cigarette Lighter

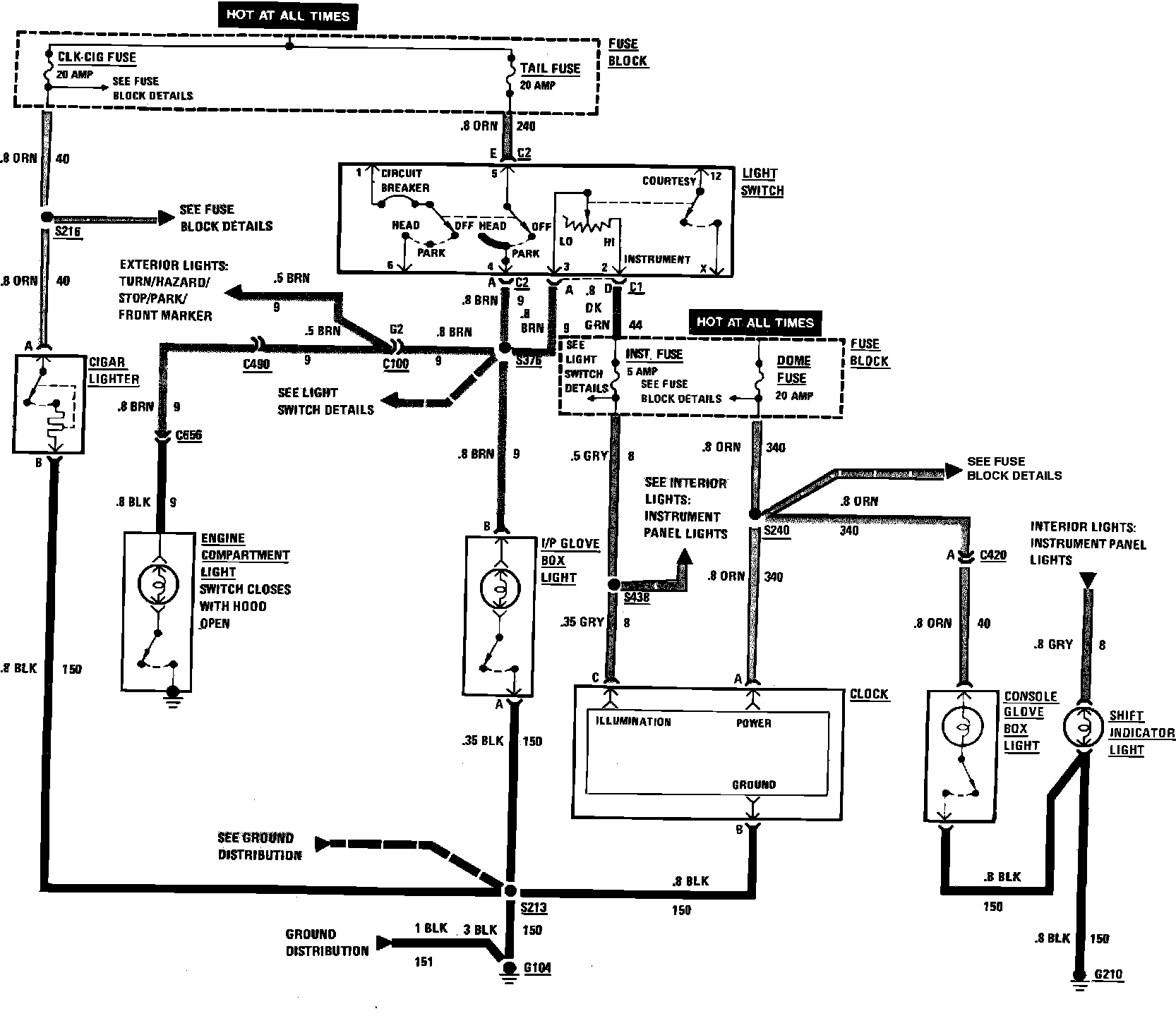

Cigar Lighter, Engine Compartment, Glove Box Lamps & Shift Indicator Lamp Wiring Circuit:
