Table 1

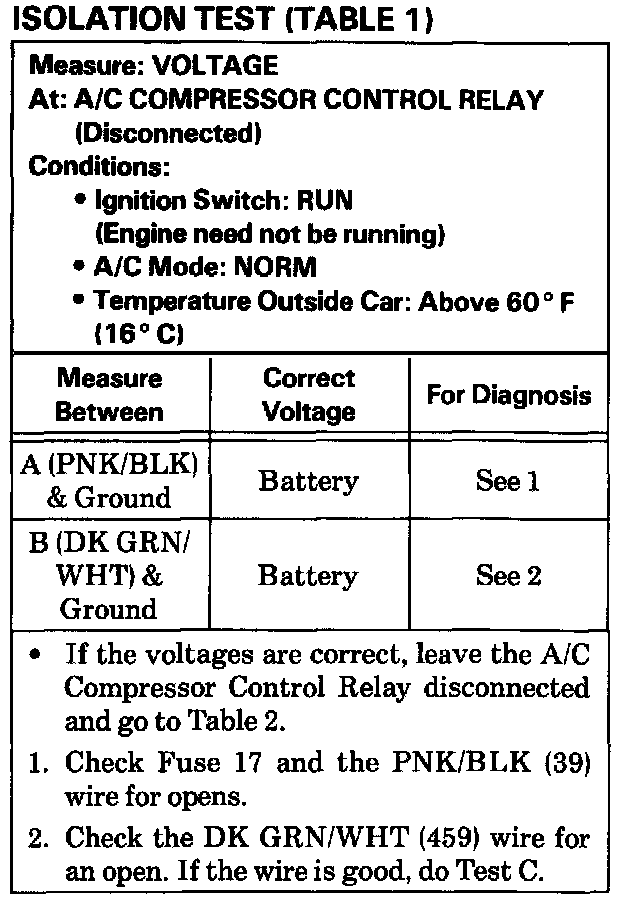

Isolation Test Table 1:






NOTE: Use the Isolation Test to choose the proper diagnostic tests.
