Emission Control Systems: Locations

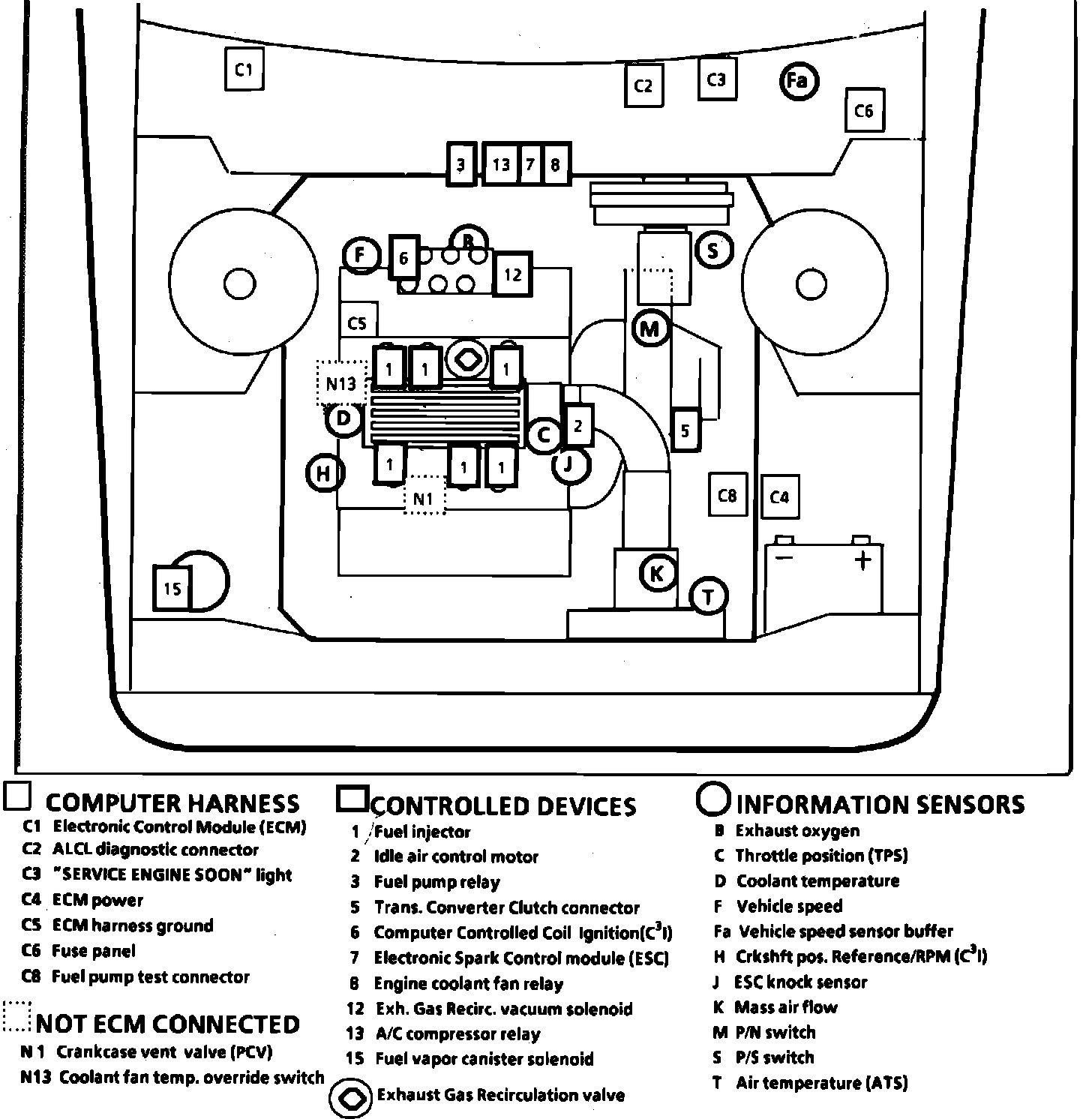

Fig. 71 Emission Component Location. 1987 Calais W/V6-183/3.0L, PFI:
