Oldsmobile
>>
1987
>>
Calais FWD V6-181 3.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
Engine Control Module

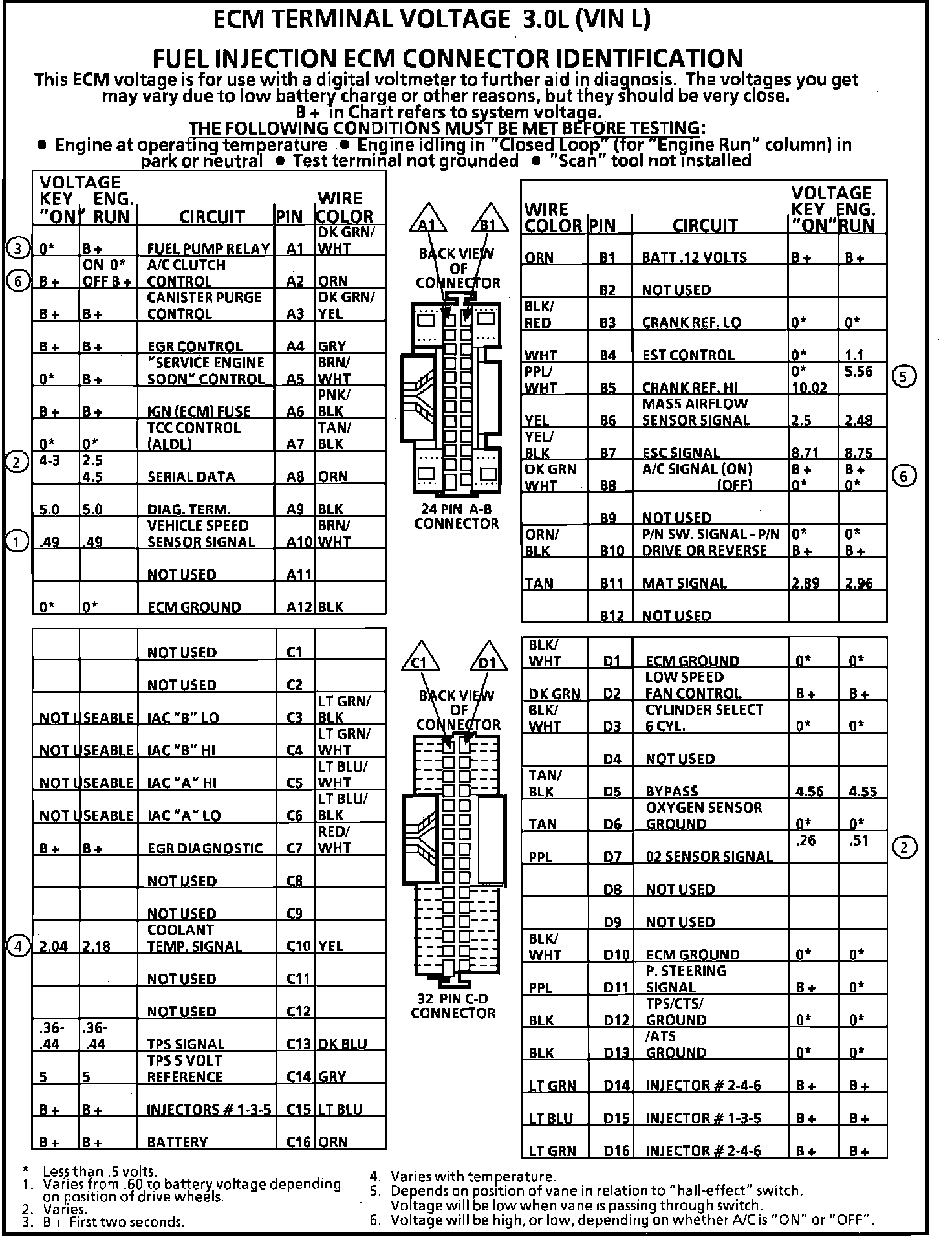

ECM Terminal I.D. and Voltage Specifications:
