Fuel Delivery and Air Induction: Locations

Fuel Metering Components:

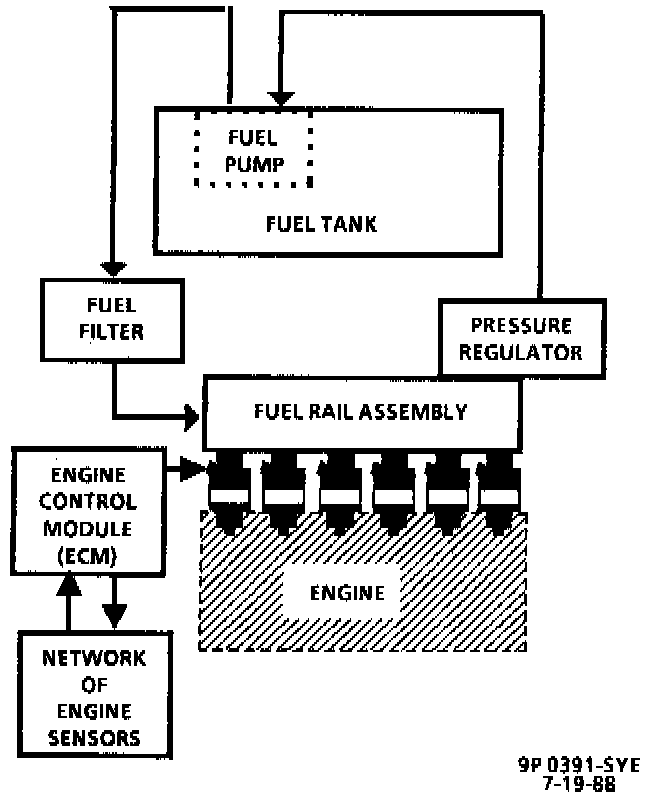

The fuel supply is stored in the fuel tank. An electric fuel pump, located in the fuel tank with the gage sending unit, pumps fuel through an in-line fuel filter to the fuel rail assembly. The pump provides fuel at a pressure greater than is needed by the injectors. The pressure regulator, part of the fuel rail assembly, keeps fuel available to the injectors at a regulated pressure. Unused fuel is returned to the fuel tank by a separate line.
