Intermediate Servo Replace

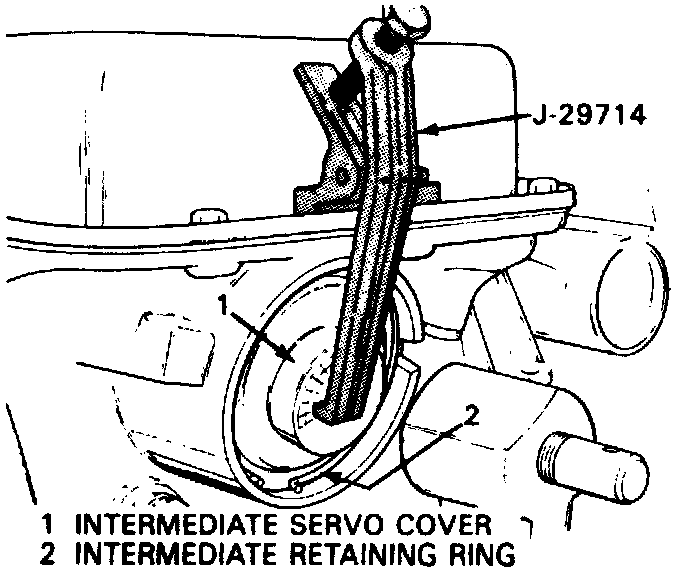

1. Using tool J-29714 or equivalent, see image, compress servo cover and pry retaining ring from case. Remove tool.

2. Using suitable pliers, remove servo cover together with seal ring. If ring remains in case, pry out gently with suitable tool.

3. Remove intermediate servo piston and band apply pin assembly.

4. Reverse procedure to install.
