Installation

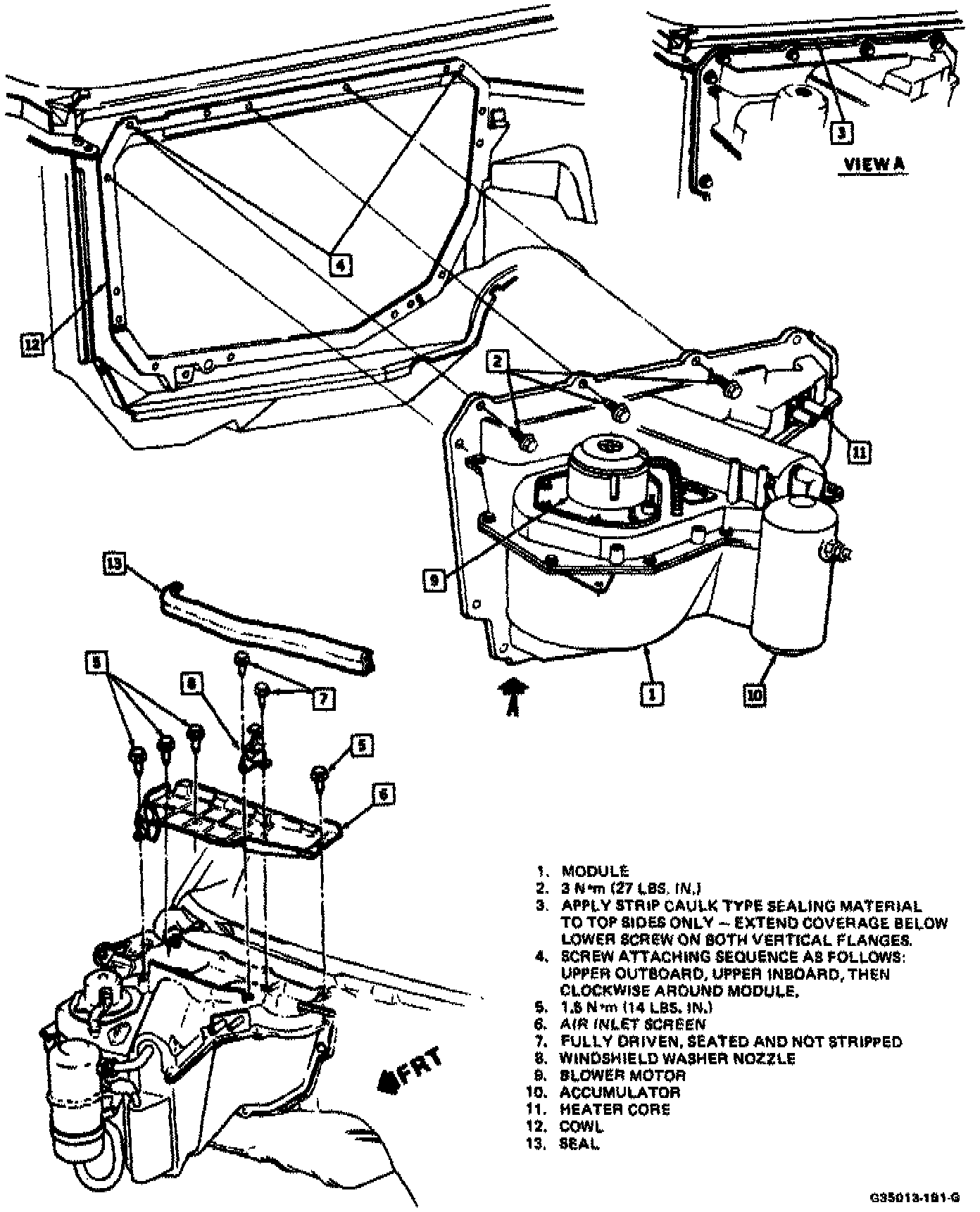

HVAC Module:

INSTALL OR CONNECT
1. Heater core.
2. Apply strip caulk type sealing material.
3. Module top cover.
4. All electrical connections.
5. Right windshield wiper arm.
6. Air inlet screen.
