Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1987
>>
Firenza L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
VIN 1
VIN 1

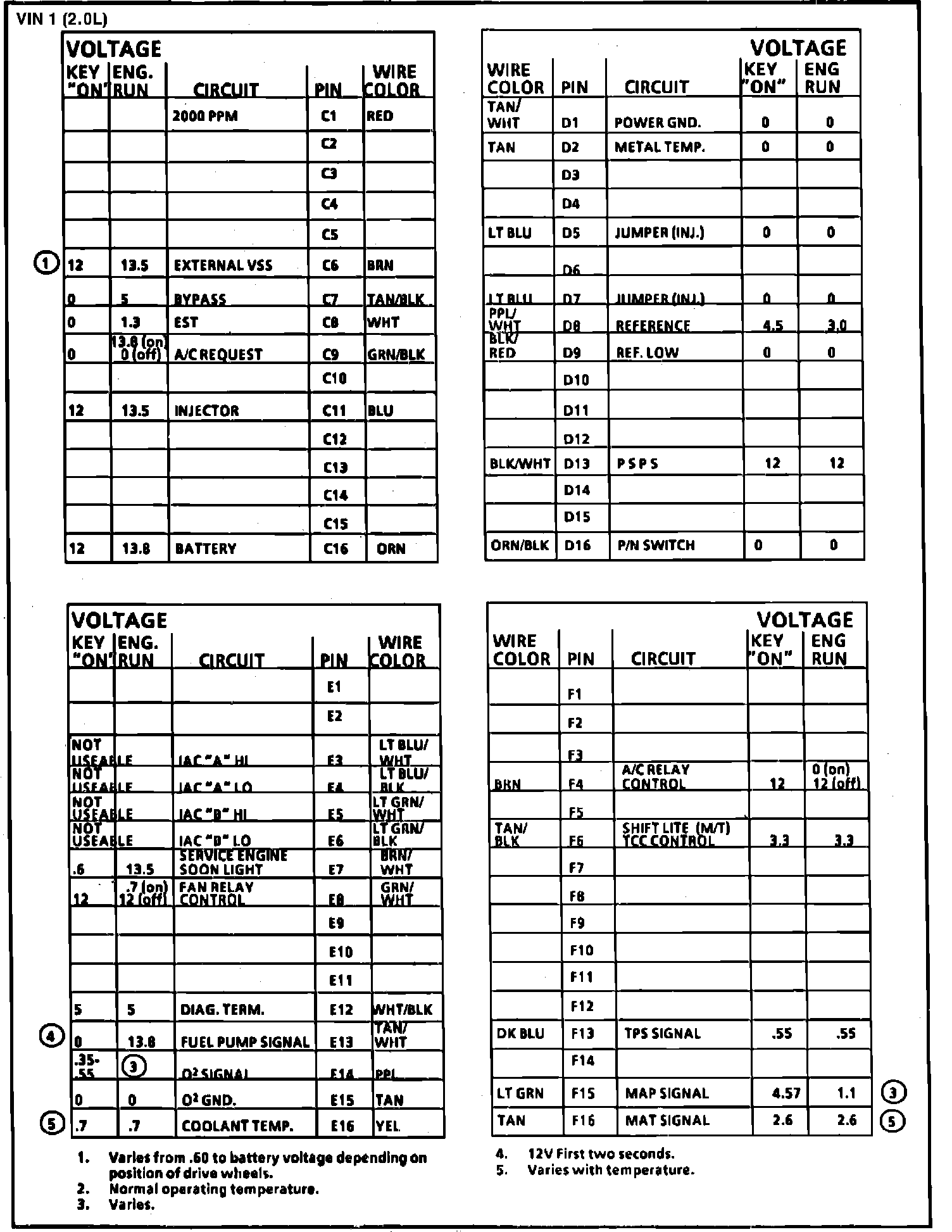

Fig. 010 ECM Connector Terminal I.D. & Volt. Specifications (1 of 2):
Fig. 011 ECM Connector Terminal I.D. & Volt. Specifications (2 of 2):
