Emission Control Systems: Locations

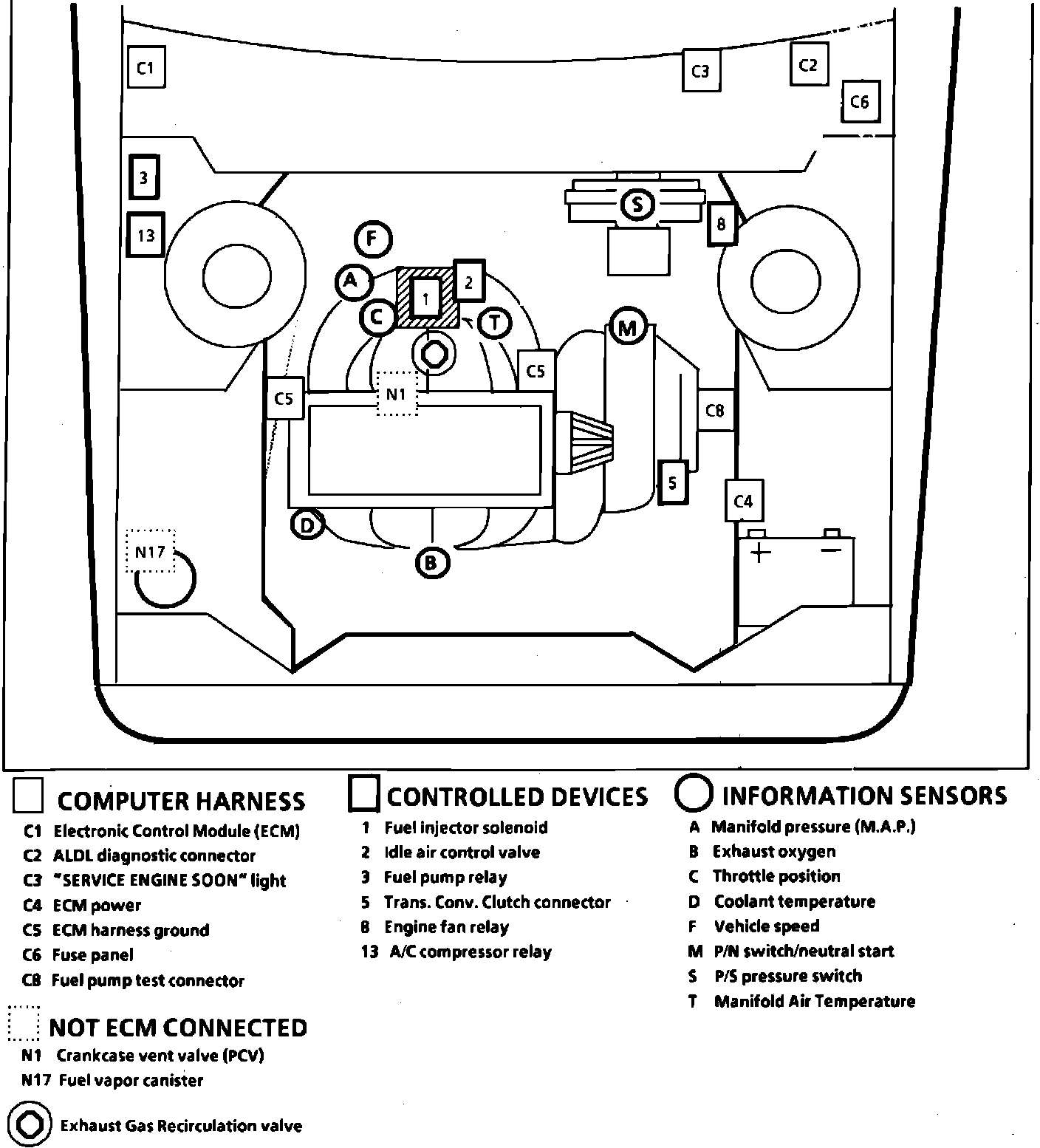

Fig. 62 Emission Component Location. 1987 Sunbird & Firenza W/4-121/2.0L OHC Engine:
