Chart C Symptom Diagnosis Chart - "Brake" Lamp on (Part 3 of 3)
Chart C Symptom Diagnosis Chart - "Brake" Lamp on (Part 3 of 3)

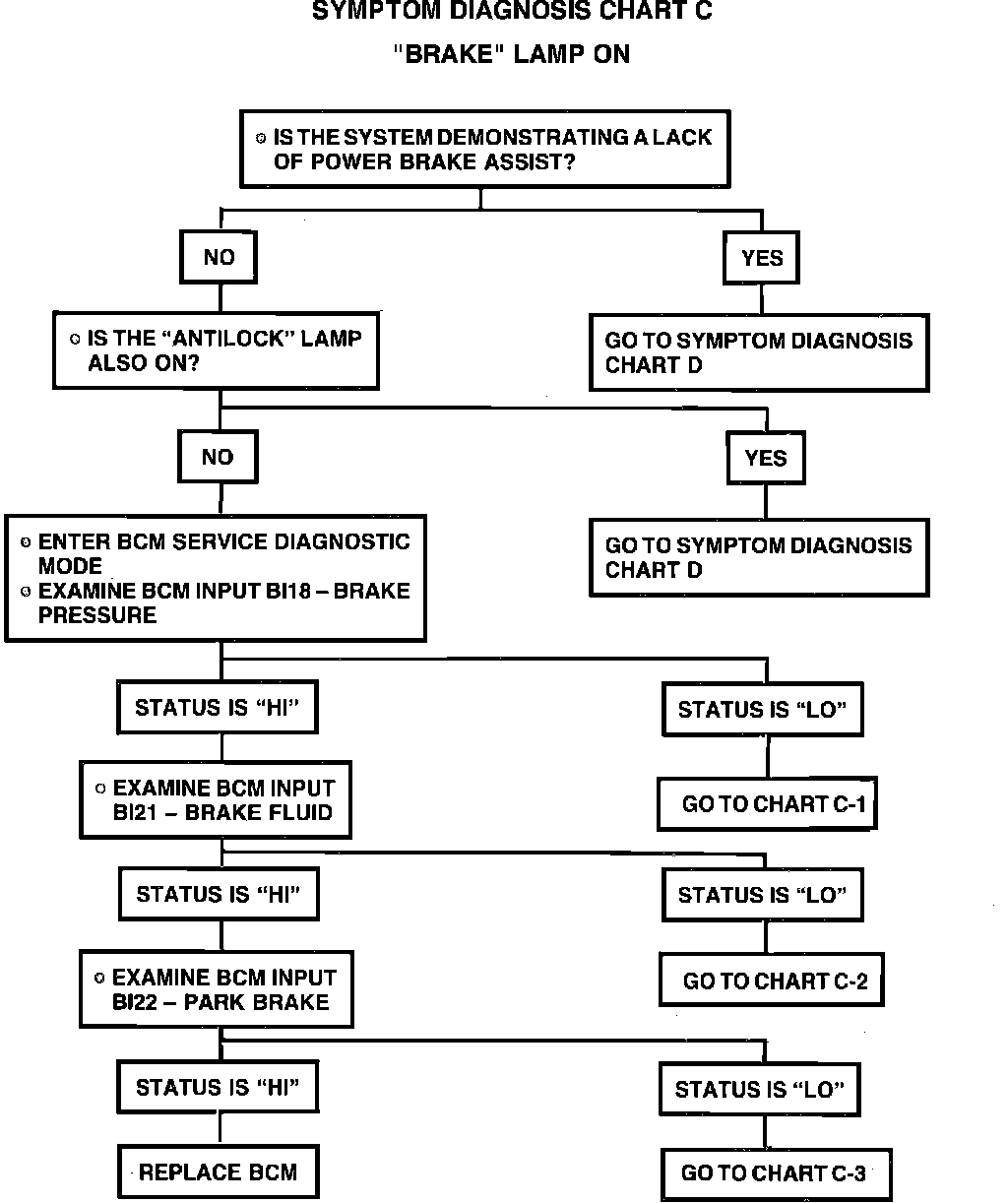

Fig. 1 Chart C Symptom Diagnosis Chart (3 of 3):
