Detonation Sensor
Detonation Sensor

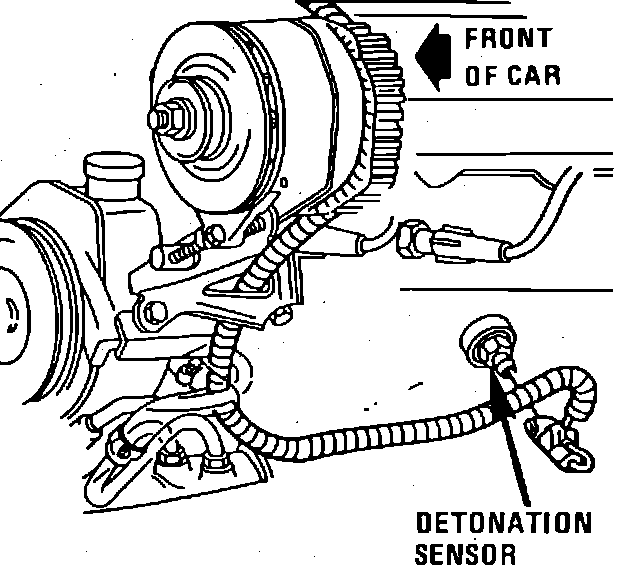

Detonation Sensor.:
Lower LH Front Of Engine
Applicable to: Caprice, Custom Cruiser, Safari Wagon & Estate Wagon
