Compressor Controls

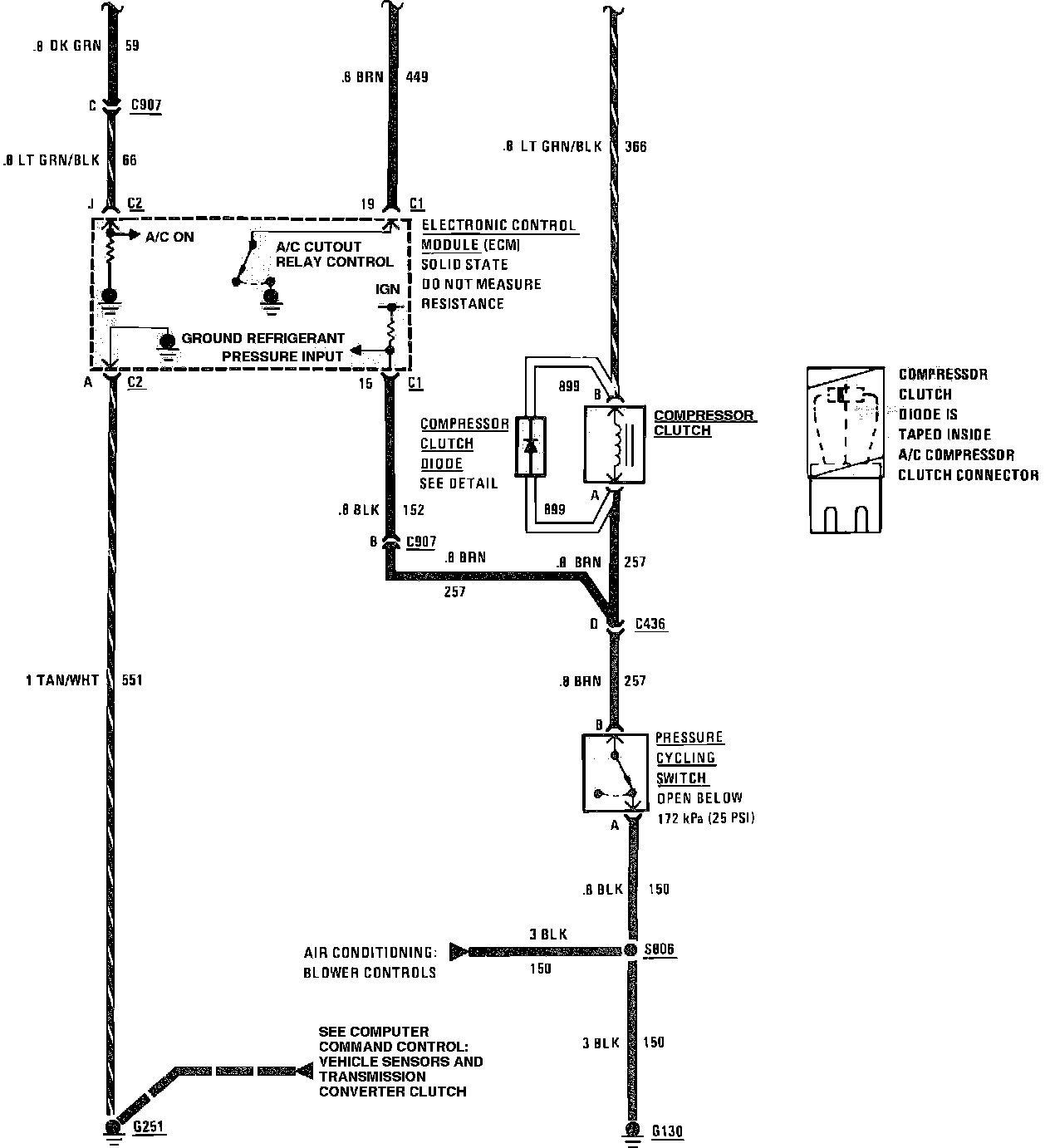

A/C Compressor Controls Wiring Circuit (W/Manual A/C):

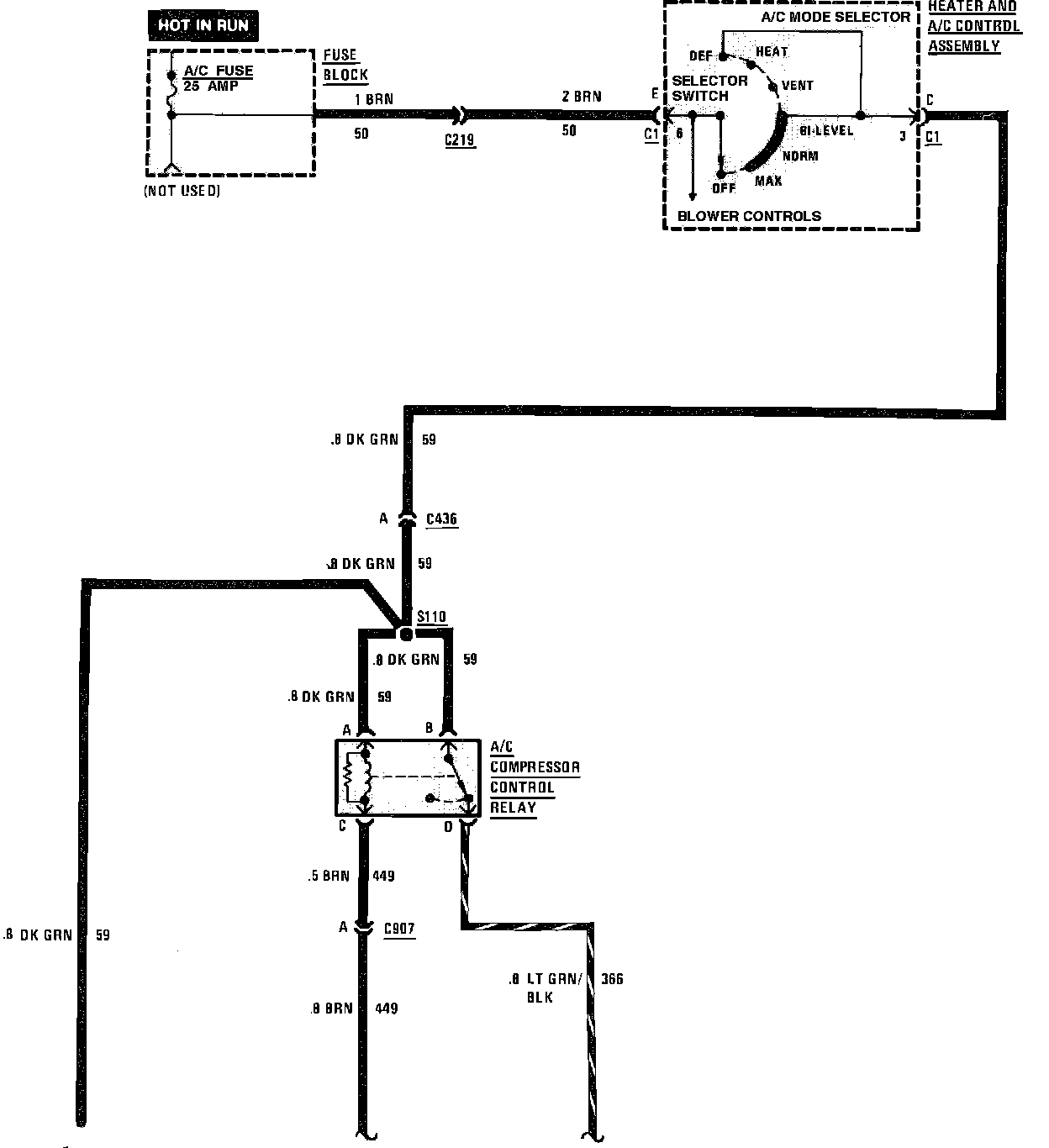

A/C Compressor Controls Wiring Circuit (W/Manual A/C):
