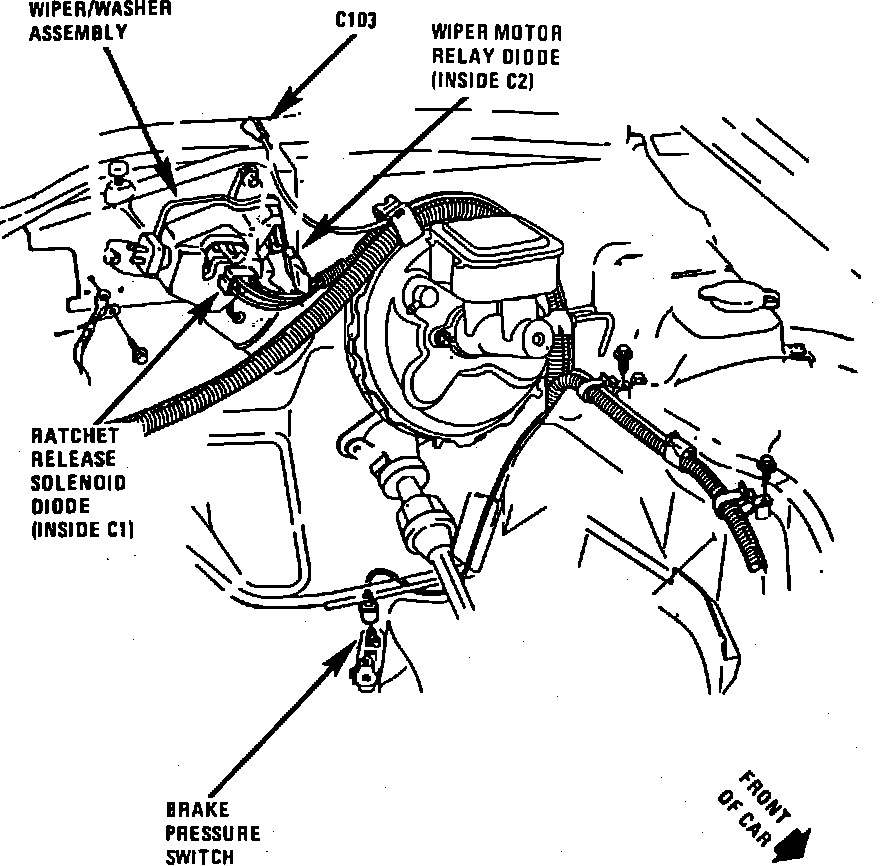

Wiper/Washer Assembly

LH Side Of Firewall.:




At Center Of Firewall

Applicable to: Custom Cruiser & Estate Wagon
