A/C Compressor Clutch Diode

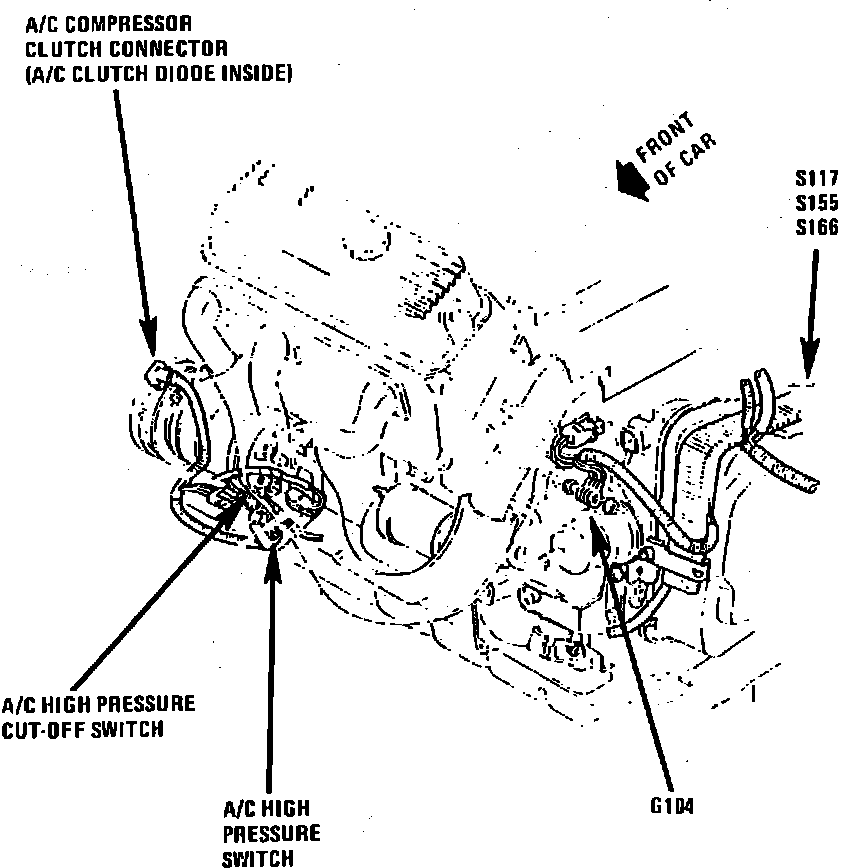

A/C Compressor Clutch Diode
Front Of V6-231/3.8L:
In A/C Compressor Clutch Connector
Applicable to: 8L Engine. Cutlass Ciera
