Crankshaft Position Sensor

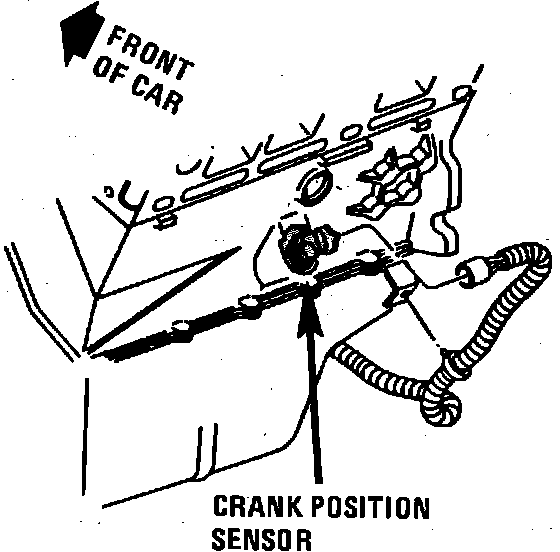

Crankshaft Position Sensor.:

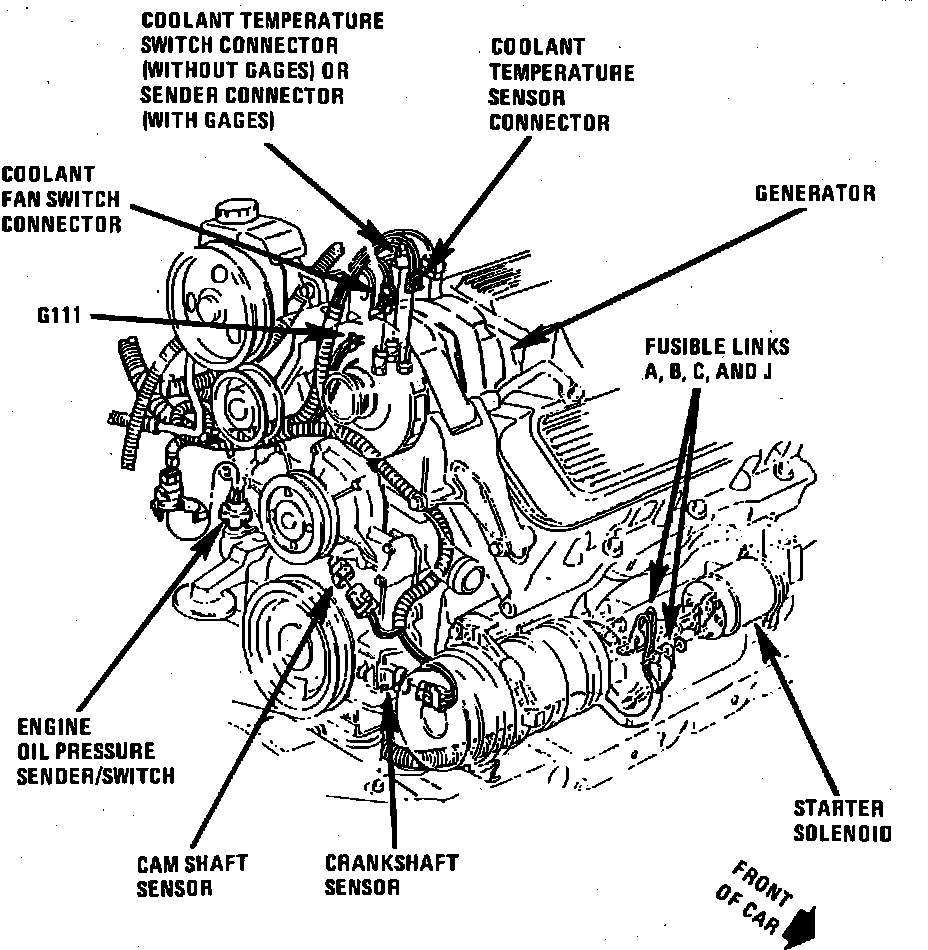

RH Side Of V6-231/3.8L:





RH Side Of Engine, Behind Compressor

Applicable to: 3.8L Engine. Cutlass Ciera
