Home >> Oldsmobile >> 1988 >> Cutlass Ciera V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G202 >> Part 2 of 2

Part 2 of 2

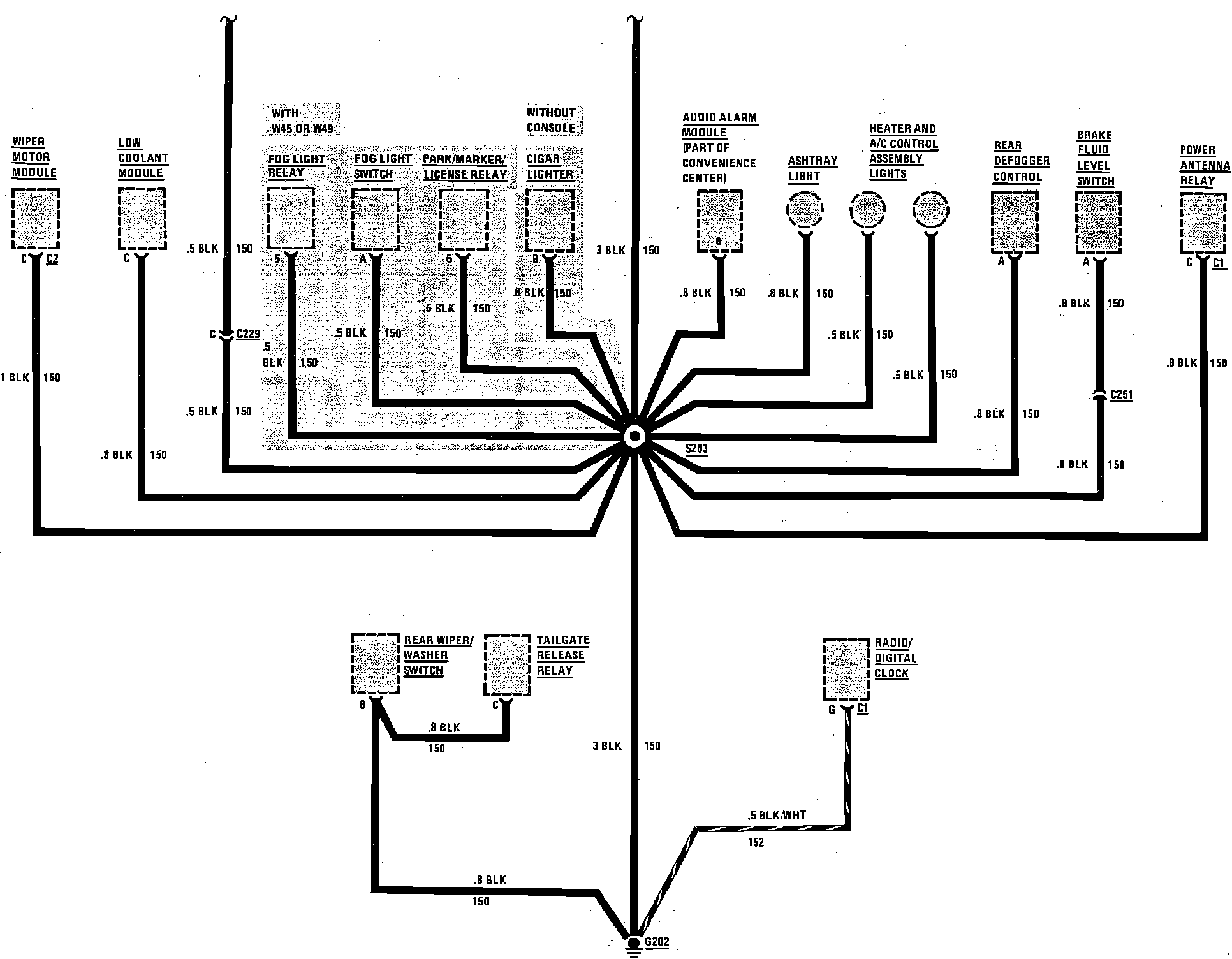

Ground Distribution. (G202). (Part 2 of 2):
