With Air Conditioning, Less Heavy Duty Cooling
With Air Conditioning, Less Heavy Duty Cooling

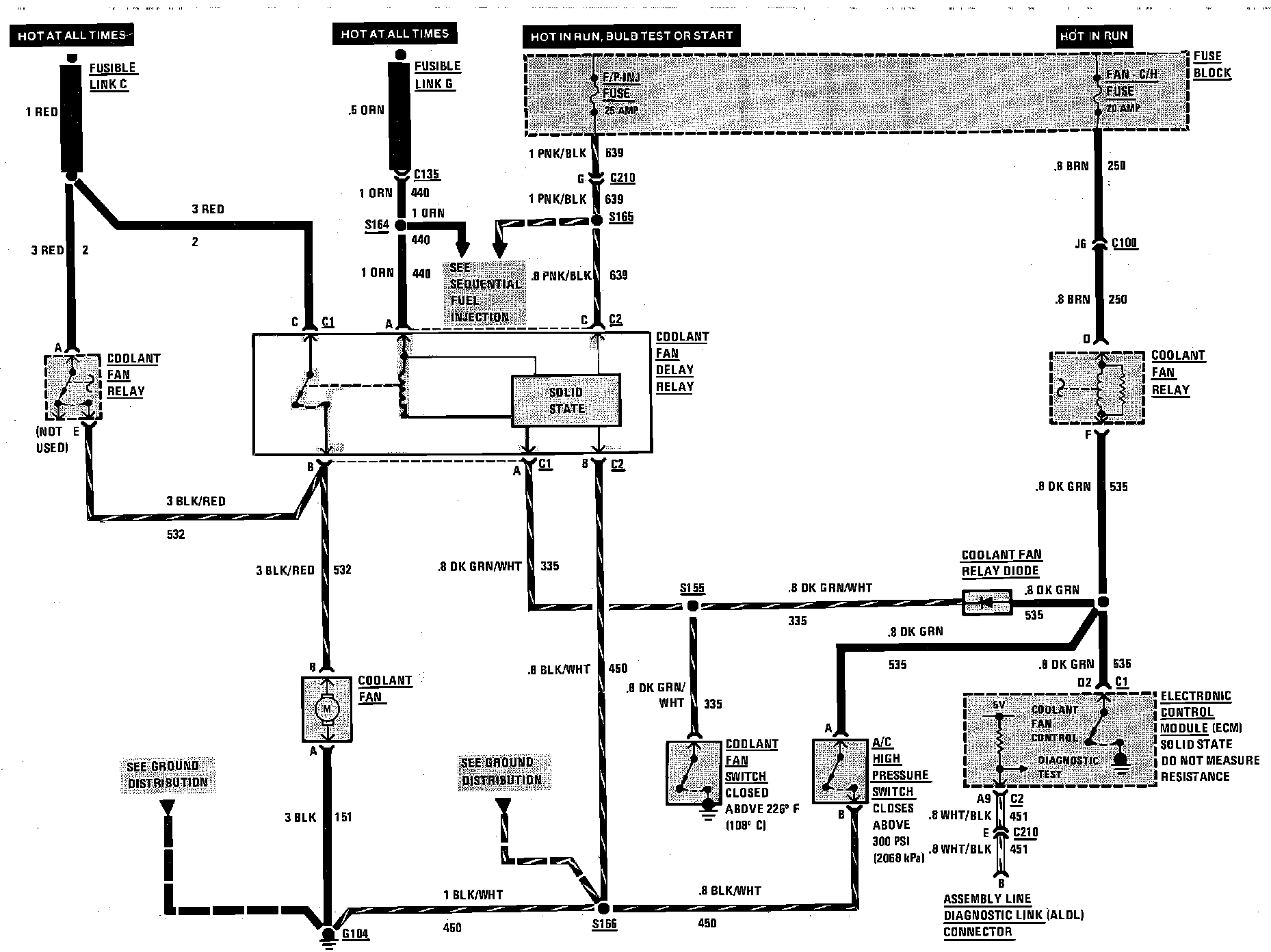

Coolant Fan Wiring Circuit (With Air Conditioning & Less Heavy Duty Cooling).:
